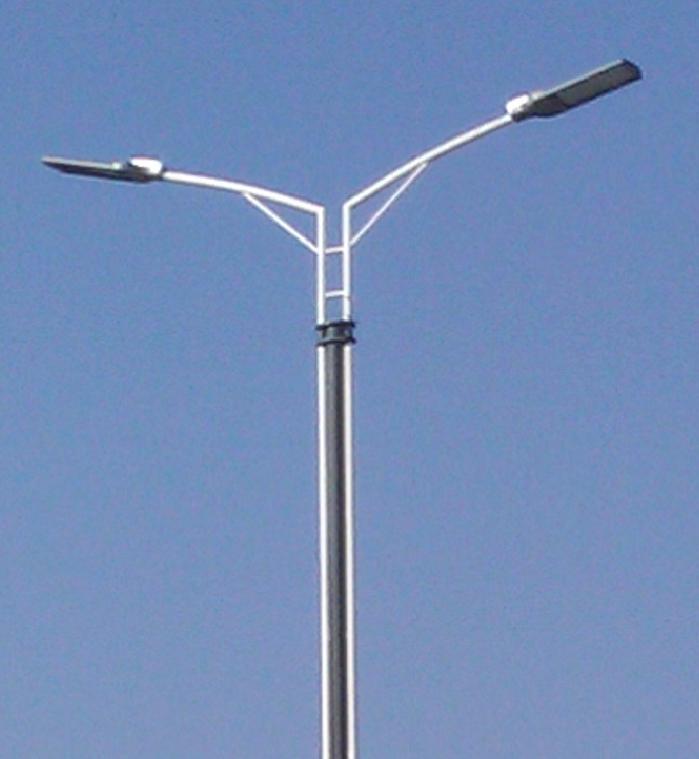

Thin and light fashionable LED Street Light with Three Years Warranty
BS606002
The Reliable High Power LED Outdoor Street Light for severe environment from Wuhan Sunshine BRT New Energy Co., ltd is creatively designed as Multi-LEDs serialization for outdoor lighting.
Power Consumption: 60W;
LUMINOUS FLUX: 5475LM;
INPUT VOLTAGE: 100-240V, 50/60HZ;
CCT: 5000-6000K;
BEAM ANGLE: 150° X60° ;
LIGHT SOURCE: 50X1W HIGH POWER;
CRI≥ 70;
PF≥ 0.9;
IP Rating: IP65
ARM DIAMETER: 50~70MM;
OPERATING TEMPERATURE: -40° C~+50° C;
REPLACING 150W HPS
Outdoor LED Street light series is an amazing combination of technical innovations, including
Breakthroughs in electronics design, mechanical design, and thermal management. The core of the
Innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS
Fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
* Excellent thermal control
* Reliable qualities
*Light color uniform
*Environmental Friendly
*Easy to install
* Long lifespan
*Low maintenance costs
Primary Competitive Advantages:
* LED: Choose high-quality LED, good monochromaticity, soft light, and high light efficiency
* Power supply: Choose world brand power supply, the main features are: High efficiency, long lifespan,
Constant current and voltage, which can make sure the light's safety work
* Heat sink: Uses high-thermal conductivity Aluminum and magnesium alloys heatsink, sound heat
Dissipation design, which is not only the premise of the long lifespan, but also the indemnification of the
Stable working of the system
* Structure Design:
Patented product with thin and light fashionable appearance
Housing shell and cooling section all-in-one
It reduces light weight to reduce post load
Decreasing windage resistance helps to increase safety
Using high-thermal conductivity aluminum heatsink makes good heat dissipation
Used for high thermal conductivity aluminum as main body, nice stretch, helical heatsink and increase
Heat area effectively
Appearance using oxidation process, corrosion-resistant and heat-dissipation
Using secondary optics technology makes the light efficiency more than 90%
With imported LED chip, high brightness and low heat, it saves 50% energy than HPS
Green environmental protection, with no lead or mercury
Lifespan is more than 50, 000 hours, saving cost on changing lights
Strictly inspected and passed CE certifications
Main Features:
*Unique secondary optical design
*Patent shape design, automatic clean function
*Adopts high light efficiency led chip, and patent heat dissipation technology, feature with high light
Efficiency, low light decay and long lifespan
*Normally, use semi LED from Taiwan, could use Cree if customers need
*Uniformly distributed light and color, Very even light distribution and high uniformity, no glare to eyes
*High light efficiency
*Excellent thermal control
*Reliable qualities, use MEANWELL power supply, Compliant with CE standard
*-50-60° C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Accurate constant-current driving with current fluctuation less than 1mA
*Energy-saving, Substantial energy-saving more than 50% compared with HPS lamp
Environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Offer three to five years warranty
*High-power factor to minimize the harmonic distortion: High power factor: More than 95%
*Patent modularity structure design, easy installation and maintenance
*Low maintenance costs
This manual contains very important information with respect to installation, Maintenance, Troubleshooting etc. It is recommended to carefully read through the manual before starting the operation.
Summary
1. product Features:
High power LED Street Light
Energy-saving
Green & Eco-friendly
Long life-span
2. Applications:
Roads, Plazas, Outdoor Leisure Places, Parks, Schools, and courtyard
3. Operation Temp. :
-40ºC~50ºC
TRANSPORTATION & STORAGE:
During transportation, severe mechanical impact , solarization & drench should be avoided, the luminaire could not be placed upside down, strongly against throwing, rolling and hard press.
Storage warehouse should be dry, clean and draughty, No corrosive medium, ambient temperature should be around 0-40ºC, keep away from fire and heat source.
OPEN PACKAGE AND INSPECTION:
Before you open the package, check if there's any damage of the carton. After opening the carton, please check the enclosed technical data sheet such as User Manual etc. and confirm all the accessories are safe and sound.
Product Structure Characteristics:
Waterproof, heat shunt structure, which ensures LED Module works under a safe and reliable environment, furthermore, this helps to reduce light degradation and improve LED lifespan. The structure also features a reflector of light distribution principle, improvement of light distribution, extending of lighting scope and better visual effect.
READ THESE INSTRUCTIONS COMPLETELY BEFORE ATTEMPTING THE INSTALLATION.
SAVE THIS DOCUMENT FOR FUTURE REFERENCE.
ATTENTION
THE USE OF CORROSIVE CHEMICALS OR SOLVENTS MAY DEGRADE THE HOUSING FINISH AND OR FINISH PROTECTION
Suitable environmental temperature: -40ºC~50ºC, Humidity: 0~95% ,Or it will be effect the life span of the lamp.
We are not responsible for damages caused by constant power supply, which is not provided by our company.
Installation during rainy days is not recommended.
The main power cable which is near to terminal of street light is provided by client, please make sure that the cable type is 3G1.0mm2 core H05RR-F , H05RN-F or 60245 IEC57 .
CAUTION
Do not connect the chain to the supply while it is in the packing unless the packing has been adapted for display purpose;
Disconnect from main power supply prior to installation,Ensure the fixture is properly grounded.
Do not use rough stuff or cleanser product cause it will damage the crust;meanwhile, don't wash the product using high-pressure water.
The System includes unreplacable spares and the maintaince service is unavailable. Please abandon it if the spare is damaged
Installation and maintenance of the fixture must be carried out by qualified technicians.
Suggest end-user fix arrester in the position of connect.
All screws must be locked up very well to ensure all the parts connect tightly.
Replace any cracked protective shield of toughened glass with size : 240X165X4mm for 30 street light, 331X243X4mm for 60 & 90 street light, 411X323X4mm for 120 & 150 street light, 567X323X4mm for 180 & 210 street light.
Risk of fire! Risk of electric and electrical shock.
Please contact suppliers for the most up to date user information. If any change, please understand not noticing separately.
When the luminaire arrives at his life time, please carefully recylce it; also,you can ask for the advice about the
recycle from the local related institution or retailer
| Model | BDZ 220/60 60 Y |
| Overall dimension |
|
| Weight | 4.3 KGS |
| windward area | max.0.3m2 |
| installation height | max.8M |
| Light source | High Power LED |
| Rated Voltage | AC100-240V 50/60Hz |
| Rated Consumption: | 50W |
| Beam Angle | 150°X 60° |
| CCT. | 3000-6000K |
| CRI. | ≥70 |
| Luminous flux | 11400Lm |
| Installation Pole: | Φ60mm |
| IP degree | IP65 |
| Working Temperature: | -40ºC~+50ºC |
| Life Span | 35,000Hrs |
THE DOS AND DON'TS:
1) Read the Instruction carefully before using the product.
2) Before installation, make sure the luminaire and all accessory are perfect, no damage.
3) Before installation, must switch off the power grid, live line work is strictly prohibited.
4) Handle with care & Make sure Wiring is correct.
5) To assure LED Module lifespan, please do not change the power supply by yourself.
6) To assure safety of power supply and better effect of lighting protection, earth wire of Power supply and Power grid are well connected. In case of no power grid earth wire, the power supply earth wire should be connected with the lamp post.
7) This is maintenance free product, in case of maintenance is need, please co ntact us.
8) After instal lation, please confirm the luminaire was fixed firmly to the lamp post.
Common faulty and solution
If the luminaire doesn't work, please check whether the power supply is connected and the switch is turned on.
If the luminaire always turns on and off, please check whether the power supply is not connected well or loose.
Notice: if the solutions above still don't work, please contact the expert on luminaire to repair it.
If any question, please consult the engieer holding the qualified certificate.
