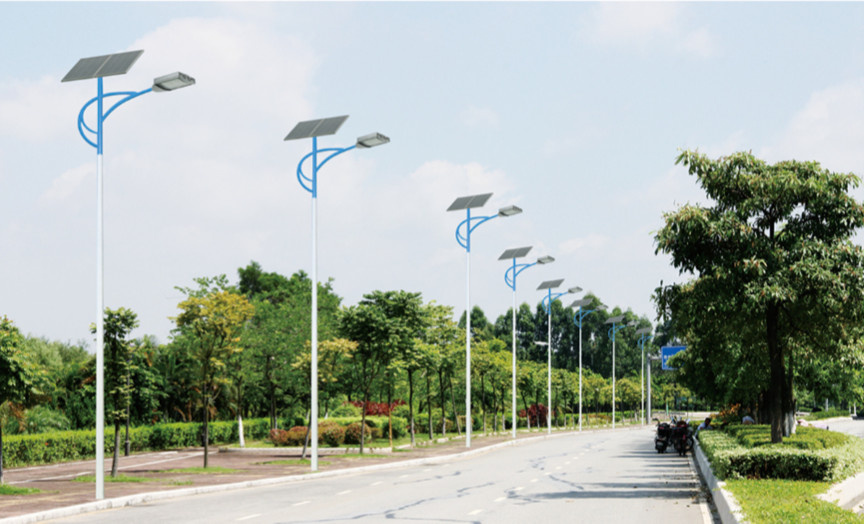

Led solar street light
1.Pole and solar panel bracket
Height:8m.
Diameter:70/180mm, 3.75mm thickness,
Flange:350*350*18mm
Hot deep galvanized plastic electrostatic spraying,
Working life≥25 years
2.LED Lamp
Lighting source:60W
Size:680*305*70mm
Weigh:7.5kg
Aluminum alloy die-casting molding with toughened glass
Working life>50000 hours.
3.Solar Panel
Maximum power:180W
Polysilicon solar panel
Working temperature:-40ºC--85ºC
Power tolerance:±5%
Working life ≥ 20 years
4.Battery
2*120AH
Gel-battery
Working life≥3 years
5.Battery Box
2*120AH battery box/engineering plastics,
Working life≥20 years
6.Controller
10A/24V working life≥3 years
Protection:
·Overheating ·Over discharging ·Over charging
·Load overload ·Load short circuit
·PV reverse polarity ·Battery reverse polarity
We can produce LED street lights from 30W to 150W.
Item |
RH-1 |
RH-2 |
RH-3 |
Pole height |
6m |
7m |
8m |
LED lamp |
40W |
50W |
60W |
Solar panel |
120W |
150W |
180W |
Battery |
150AH |
200AH |
2*120AH |
Controller |
10A/12V |
10A/12V |
10A/24V |
