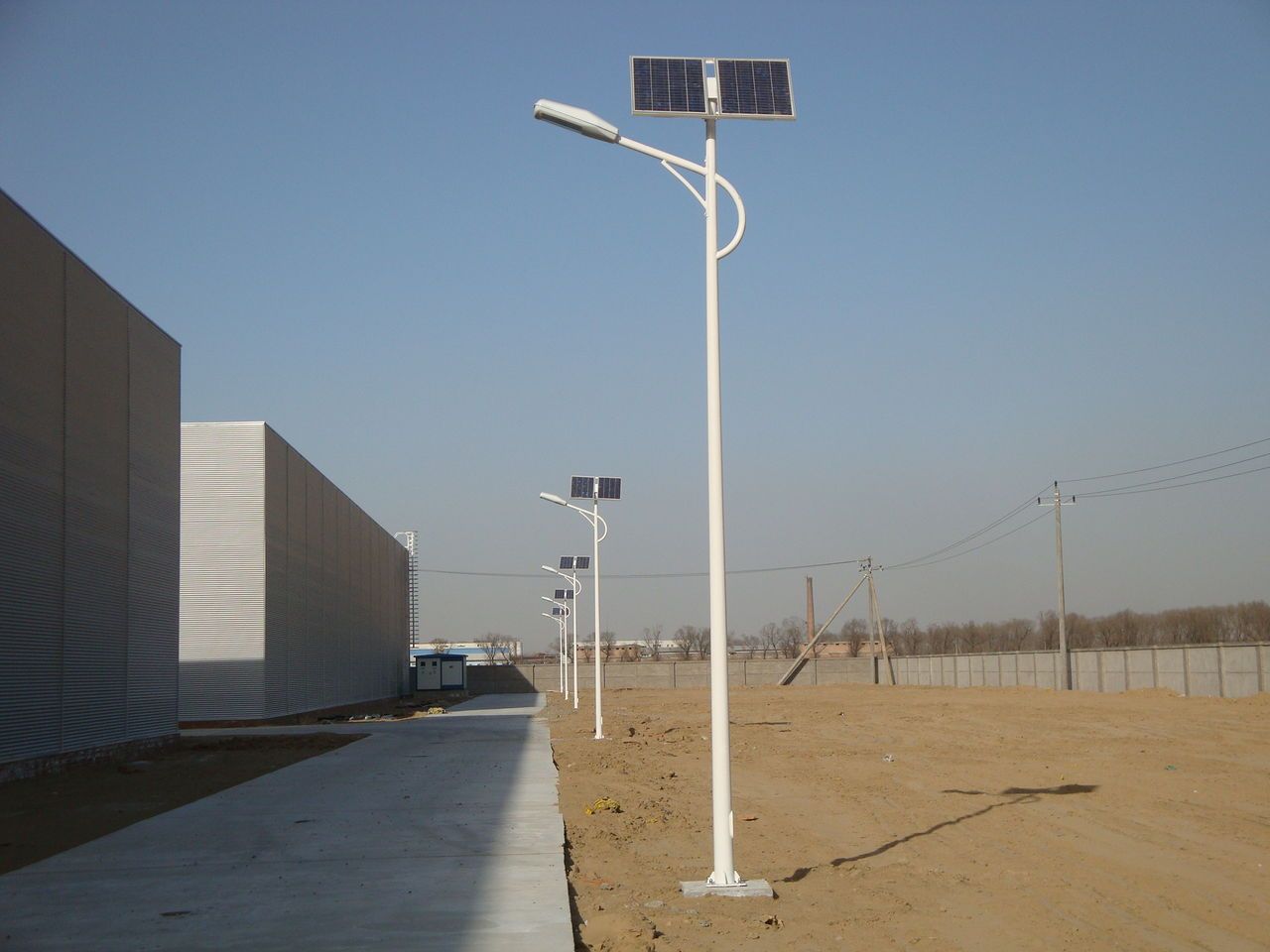

60W LED Solar Outdoor Light, Economic Design, Full +Half Power 12 Hrs
Model: 6-8-10M-S3
Solar street lights Technical Parameters
1 Height of light source to ground: 6 to 8M
2 Applicable light source: 60W LED, Brightness: 7200LM.
3 PV Module: 120W*1PC, High efficient monocrystalline or polycrystalline silicon
4 Storage cell: 120Ah*1PC, fully sealed, maintenance free Gelled/lead acid cell
5 Control system: 10A/24V, automatic control by microcomputer
6 Lighting hours: 11-12hours/Day*3-4 days no sun days
7 Material of the mast: Plastic coated on hot-DIP galvanized steel pipe
8 Ambient temperature: -20C----60C
This model 60W LED Solar Outdoor Light, Design based on solar radiation 5.0kwh,
Getting more information on 60W LED Solar Outdoor Light, mail or call us please.
|
Specification for 60W LED Solar Outdoor Light |
|
Part Name and Lifespan |
Technical Specification |
Solar Panel:
Lifespan:20-25 years |
120W*1PC Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass. |
Gelled Battery
Lifespan:5-8 years |
120Ah/12V*1PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free |
Intelligent Solar Controller
Lifespan:5-10 years |
10A/24V,IP65. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs) |
Light source: High Power LED
Lifespan: More than 50000-100000Hrs |
60WLED, White Color, Cree Chip, 7200LM,6500K,IP65,High Power, High Brightness. |
Lamp Housing:
Lifespan: More than 20 years |
Die-casted Aluminum, IP65
High transmittance & Density toughened glass, |
|
Battery Box: |
Engineer Plastic, bury under gorund. |
GI Pole System:
Lifespan: More than 20 years
|
6-8M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H |
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System & Solar Home Kits.
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 310W
4. Solar Battery 7Ah-300Ah/12V
5. Solar Home Kits 3W-5000W System
OEM Service for solar lighting and PV panel is available.
Welcome your inquiry of solar outdoor lights and solar home lights.
