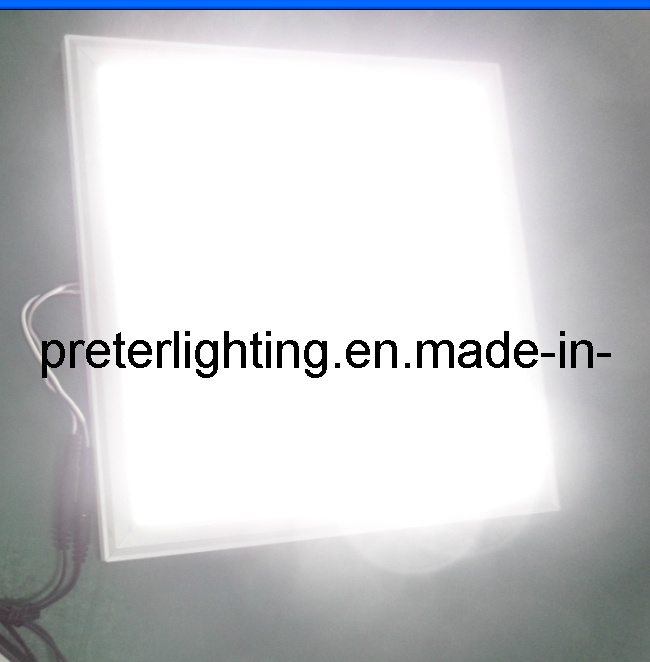

LED Panel Light. 600*600*12mm. 40W. AC85-265V. 3100LM. 170degree. 432pcs 3014SMD
1. Energy saved up to 50%. High intensity
2. Different driver option: A. 110V driver. B. 1-10V dimmable driver 220V. C. 1-10V dimmable driver 110V
3. New inner high efficiency (95%) With heat protection system, the constant current driver can work under unstable voltage.
4. Special circuit design, each LED can work separately thus it can avoid the influnence that a broken LED causes.
5. Working Temperature: -20~ 40
6. No RF interference
7. Package Info: Ctn size: 68*65*32.5cm, 5pcs/ctn, Gross Weight: 22KG/ctn, Volumetric Weight: 28KG/ctn.
8. Warranty: 3 years.
Applications:
Hotels
Factories & Offices
Commercial Complexes
Residential/Institution Buildings
|
Item |
size(mm) |
Wattage |
Lumem |
Dimmable or non dimmable |
Voltage |
Quantity / SMD |
Color |
|
PL-PA3030-20W |
300*300*9.8 |
20W |
1600±100lm |
non-dimmable |
85~265V |
154 3014SMD |
2800~7000k |
|
PL-PA3030-20W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA3030-25W |
300*300*12 |
25W |
2000±100lm |
non-dimmable |
85~265V |
308 3014SMD |
2800~7000k |
|
PL-PA3030-25W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA3060-20W |
300*600*9.8 |
20W |
1600±100lm |
non-dimmable |
85~265V |
216 3014SMD |
2800~7000k |
|
PL-PA3060-20W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA3060-25W |
300*600*12 |
25W |
1600±100lm |
non-dimmable |
85~265V |
216 3014SMD |
2800~7000k |
|
PL-PA3060-25W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA6060-38W |
600*600*9.8 |
38W |
2900±100lm |
non-dimmable |
85~265V |
312 3014SMD |
2800~7000k |
|
PL-PA6060-38W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA6060-40W |
600*600*12 |
40W |
3100±100lm |
non-dimmable |
85~265V |
432 3014SMD |
2800~7000k |
|
PL-PA6060-40W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA6060-48W |
600*600*12 |
48W |
3800±100lm |
non-dimmable |
85~265V |
624 3014SMD |
2800~7000k |
|
PL-PA6060-48W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA6060-60W |
600*600*11.5 |
60W |
4800±100lm |
non-dimmable |
85~265V |
624 3014SMD |
2800~7000k |
|
PL-PA6060-60W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA30120-38W |
300*1200*9.8 |
38W |
2900±100lm |
non-dimmable |
85~265V |
432 3014SMD |
2800~7000k |
|
PL-PA30120-38W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA30120-40W |
300*1200*12 |
40W |
3100±100lm |
non-dimmable |
85~265V |
432 3014SMD |
2800~7000k |
|
PL-PA30120-40W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA30120-48W |
300*1200*12 |
48W |
3800±100lm |
non-dimmable |
85~265V |
624 3014SMD |
2800~7000k |
|
PL-PA30120-48W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA30120-60W |
300*1200*11.5 |
60W |
4800±100lm |
non-dimmable |
85~265V |
624 3014SMD |
2800~7000k |
|
PL-PA30120-60W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
|
PL-PA60120-60W |
600*1200*11.5 |
60W |
4800±100lm |
non-dimmable |
85~265V |
432 3014SMD |
2800~7000k |
|
PL-PA60120-60W-DIM |
Dimmable |
110V/220VAC |
2800~7000k |
