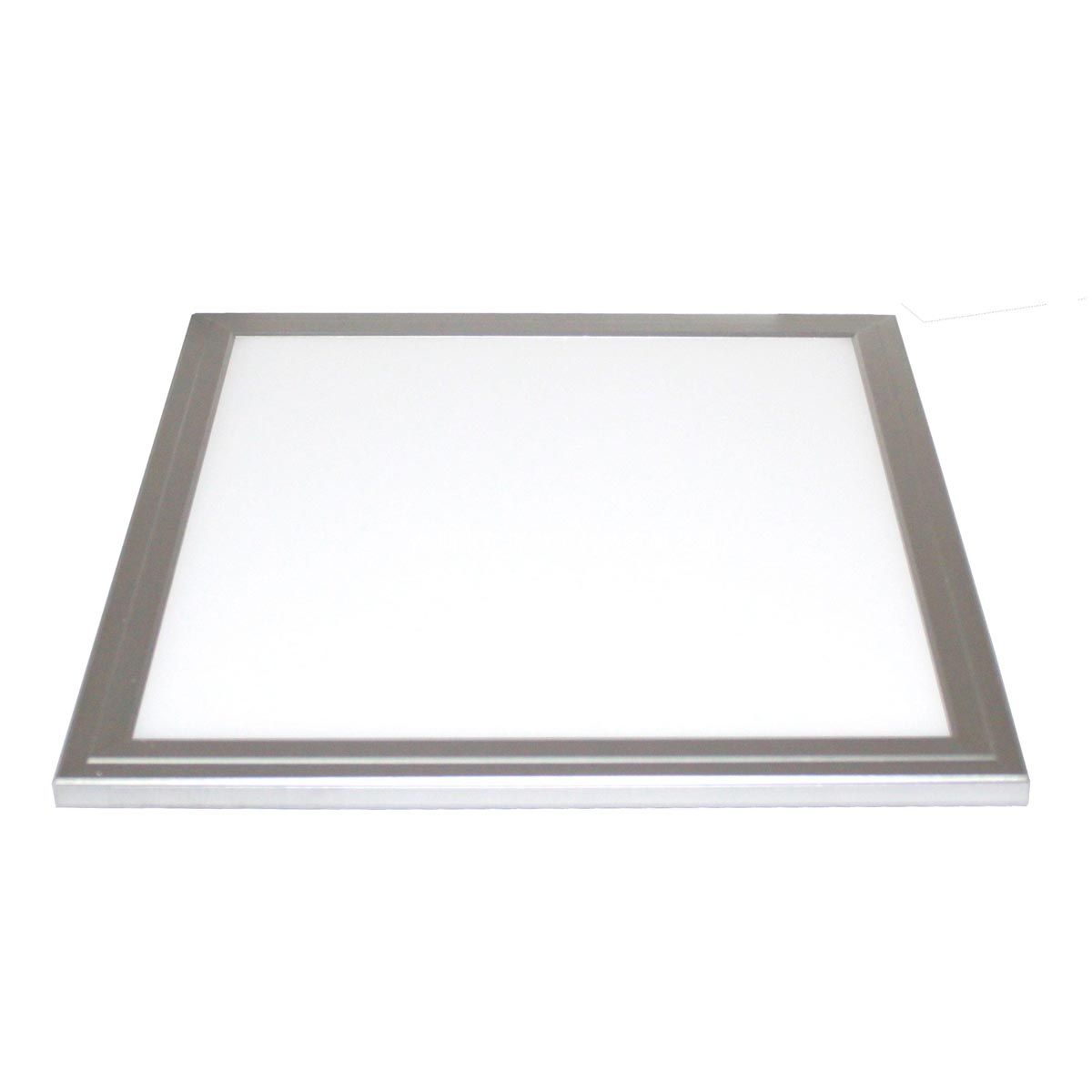

54W LED Panel Light 600*600*12mm
Warranty time: 3 years
Luminous flux: 4992lm(warm white)
Meanwell driver(meanwell offer 3 years warranty)
Features
2Universal AC input (up to 305VAC) / Full range
Protections:Short circuit / Over current / Over voltage / Over temperature
Built-in active PFC, PF>0.95
Output constant current level adjustable
Built-in constant current limiting circuit (C.V.+C.C. mode)
Class 2 power unit / Pass LPS
Cooling by free air convection
Suitable for built-in LED lighting system
Built-in 3 in 1 dimming function(1~10VDC, PWM signal, or resistance)
3 years warranty
AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start,50A at 230VAC Cold start,55A at 230VAC
DC adjustment range ±10% rated output voltage
Current adjustment range 60%~100% 80%~100%
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 109%~145% rated output voltage
Setup, rise, hold up time 1000ms, 80ms, 16ms at full load and 230VAC 1000ms, 200ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature -40~+70OC (refer to output derating curve)
Safety standards UL8750, TUV EN61347-1, EN61347-2-13 approved;
Design refer to EN60335-1(HLP-40H/60H), UL60950-1, EN60950-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input 6+6P/3.96mm pitch,
Output JST P/N: B6P-VH
Dimension (LxWxH) (mm) 147x 53x 27 167x 53x 29.5
|
Model number: |
LLL-PL-54W01 |
|
Product size: |
600*600*12MM |
|
Input voltage: |
AC 100-240V 50/60Hz |
|
Power(Meanwell): |
54W Meanwell driver |
|
LED Type: |
SMD4014 520PCS |
|
Led chip: |
taiwan |
|
Material: |
Al + PLG |
|
Working temperature: |
-25~+45 centigrade |
|
Working humidity: |
10%~95% |
|
Life: |
>50000hours |
|
Emitting angle: |
120degree |
|
Power factor: |
>0.95 |
|
Color temperature: |
2700K-----3200K |
|
3800K-----4500K |
|
5500K-----6500K |
|
CRI(Ra) |
>80 |
