PRODUCT DESCRIPTION::

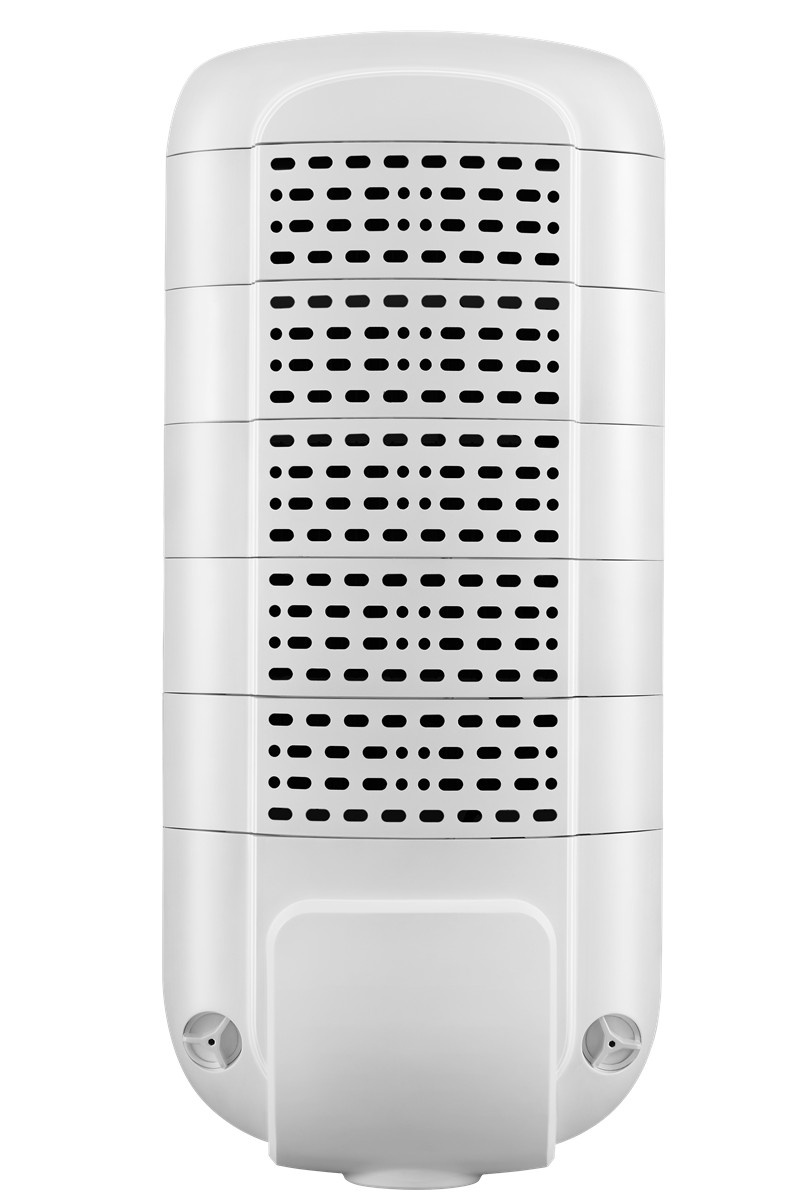

5 Years Warranty IP67 PHILIPS/CREE LED STREET LIGHT with CE/(EMC,LVD, RoHS), TUV, UL, DLC, FCC, SAA
PRODUCT FEATURES:
+ The whole light efficiency up to 100Lm/W
+ Modular structure design, free modular serialization and full
+ power range solution, easy to install and maintain
+ The latest and unique secondary optical design to guarantee
+ excellent light distribution and uniformity
+ The gold wire-free eutectic welding technology helps avoiding the gold
+ wire break and open risk of traditional LED package technology
+ Special heat sink design to guarantee long lifespan and low light decline
+ Double coupling IP67 protection, high water-proof level
ADVANTAGES:
1. Using Netherland original Philips-Lumileds LUXEON® T LEDs
2. High quality MEANWELL UL listed power supply
3. Luminous flux efficient >105lm/w
4. Lifespan > 50000H
5. 5 years warranty
6. CE(EMC, LVD, ROHS), TUV, UL, DLC, FCC, SAA listed
APPLICATIONS:
+ Main road,branch road
+ Residential road,municipal road,park road
+ City squares
+ Highways
+ Industrial areas
TECHNICAL PARAMETERS FOR MODEL NJZ-FLB-50
Model | NJZ-SLA-100RR-A0 |
Power | 100w |
Color Temperature | 3000K/4000K5700K |
Module Usage | LED18*2Module |
LED Chip | Philips-Lumileds |
Driver | Meanwell |
Light Efficiency | ≥105lm/w |
CRI | Ra≥70 |
Input Voltage | 100-277VAC |
Beam Angle | 150°*80° |
IP Rating | IP67 |
Housing Material | Aluminum Alloy |
Lens Material | PC |
Dimension (L-W-H) | 409*330*193mm |
Net Weight | 8.2kg |
TECHNICAL PARAMETER FOR ALL MODELS
Model | NJZ-SLA |
LED Chip Brand | Philips-Lumileds LUXEON® T |
Driver Brand | Inventronics / Meanwell |
Norminal Wattage | 50W~400W |
LED Module Usage | 1~8 Units |
Input Voltage | AC100V-277V(50/60Hz) and 347-480 volt optional |
Power Supply Efficiency | ≥91% |
Power Factor | >0.95 |
Luminous Efficacy | >105Lm/W |
Luminous Flux (Lumen Output) | 4000Lm~40000Lm ( Tolerance +/- 5% ) |
Color Rendering Index | Ra>75 |
Color Temperature | 3000k / 4000k / 5700k |
Light Distribution | Using secondary optical lens for light distribution |
Beam Angle | 150°*80° |
Work Condition | Operation Temperature: -40ºC ~ +50ºC Humidity: 10%~90% RH |
Optimal Operating Temperature | 25ºC |
Housing Material | Anodized Die Cast Aluminum |
IP Rating | IP67 |
Protection Level Against Electric Shock | Class I |
Mounting Method | Ceiling,Pendant,Wall Type |
Operation Lifespan | > 50000 Life Hours |
Warranty | 5 years limited system warranty standard |
