| Price: | US $ 1/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
| 8CH | ||
| DMX CH | Function | remark |
| CH1 | Dimmer | R.G.B Dimming, linear dimming from dark to bright |
| CH2 | Strobe | R.G. B Strobe, speed, from slow to fast |
| CH3 | Function | 0--20: DMX 7CH; 21--70: Color Jump; 71--120: Color Fade; 121--170: Color pulse; 171--220: Running; 221-240: Sound control 1; 241-255: Sound control 2 |
| CH4 | Speed | Speed Function from slow to fast |
| CH5 | R Dimming | R Dimming, linear dimming from dark to bright |
| CH6 | G Dimming | G Dimming, linear dimming from dark to bright |
| CH7 | B Dimming | B Dimming, linear dimming from dark to bright |
| CH8 | DMX512 ID | ID 1 5--9 ID 2 10--14 ID 3 15--19 ID 4 20--24 ........... ID 51 255 under same address code, single-control lighting up to 50 Maximum |
80CH | ||
| DMX CH | Function | remark |
| CH1 | Dimmer | R.G.B Dimming, linear dimming from dark to bright |
| CH2 | Strobe | R.G. B Strobe, speed, from slow to fast |
| CH3 | Function | 0--20: DMX 7CH; 21--70: Color Jump; 71--120: Color Fade; 121--170: Color pulse; 171--220: Running; 221-240: Sound control 1; 241-255: Sound control 2 |
| CH4 | Speed | Speed Function from slow to fast |
| CH5 | R1 Dimming | R1 Dimming, linear dimming from dark to bright |
| CH6 | G1 Dimming | G1 Dimming, linear dimming from dark to bright |
| CH7 | B1 Dimming | B1 Dimming, linear dimming from dark to bright |
| CH8 | R2 Dimming | R2 Dimming, linear dimming from dark to bright |
| CH9 | G2 Dimming | G2 Dimming, linear dimming from dark to bright |
| CH10 | B2 Dimming | B2 Dimming, linear dimming from dark to bright |
| CH11 | R3 Dimming | R3 Dimming, linear dimming from dark to bright |
| ...... | ...... | ....... |
| CH80 | DMX512 ID | ID 1 5--9 ID 2 10--14 ID 3 15--19 ID 4 20--24 ........... ID 51 255 under same address code, single-control lighting up to 50 Maximum |

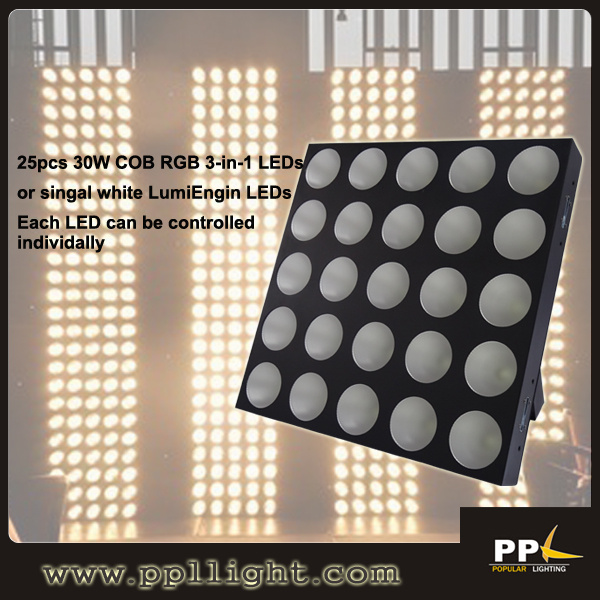

| Prod Model: | PPL-25TC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 59*59*13 |
| Weight: | 15kgs |
| Housing Color: | Black |
| LED Lamp: | 30W COB RGB 3in1 LED |
| LED Quantity: | 25PCS 5*5 |
| Feature: | Light Weight, Perfect Wash Effect |
| DMX Channel: | 8/80CH |
| Power: | 750W |
| Lens: | Clear Lens and Frost Lens Is Optional |
| Using Place: | Professional Stage, Disco, Bar |
| Application: | Film and Television |
| IP Rating: | IP20 |
| Certification: | RoHS |
| Kind: | Wall Wash |
| Emitting Color: | RGB Color Mixing or Signal White |
