Features:
1. Phillip UHP Project Lamp
2. High brightness, Fast moving speed, Pefect low noise
3. 8 or 16 or 24 facet rotation prism optional
4. 2 years warranty

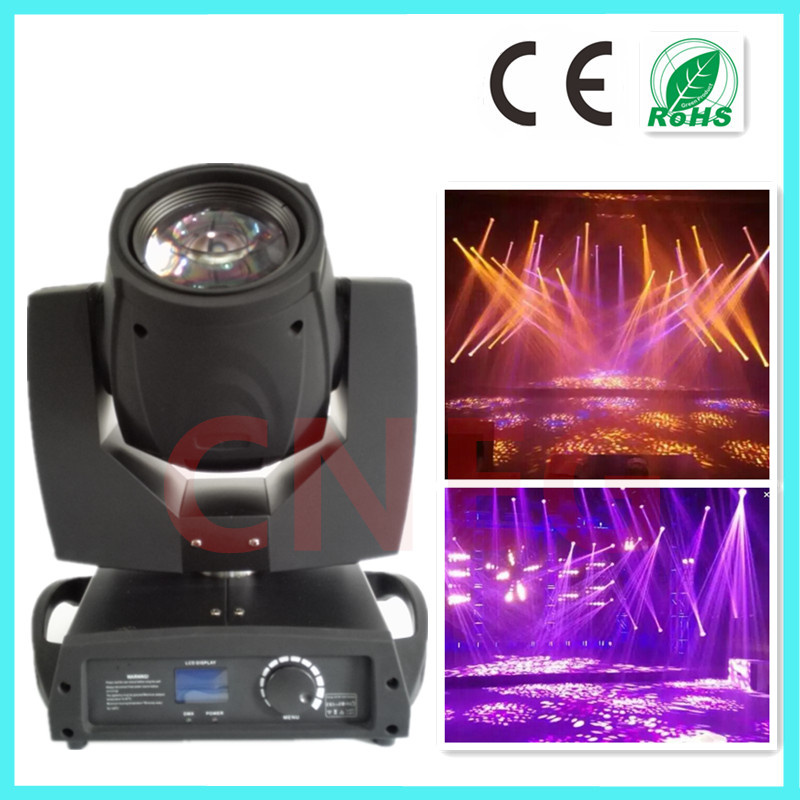

Model Number: ZY-B200
Lamp Source
190W Phillip UHP Lamp
Color temperature: 8,500K
Acerage Life: 2,000Hrs
Electrical
Input Voltage: AC90-240V 50/60HZ
Power Consumption: 250W
Control
Display:LCD display, can be turned 180°&record the using time
Control Protocol: DMX512,automatic and master/slave mode
Channel: 16/20CH
Optical System
YL(YiLong) 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: 8 or 16 or 24 facet prism optional
Frost filter
Beam angle: 0-3.8 degree
Movement
Pan:540°
TilL:270°
Pan/Tilt Resolution: 16bit
Gobos&Colors
Gobos: 1 gobos wheel with 17 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
Physical
Housing: Flame-retardant plastic
Housing Color: Black or White selectable
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan and aluminum radiator
Certificate&Satety
Certificate: CE
Working environment: Indoor
Operation temp:-20~40ºC
Packing
Accessories: Standard power cable, signal cable and omega
Optional safety cable and clamps
Product Size: 335*305*475mm
Carton Size: 410*440*540mm
Dula case:850*480*710mm
N.W.:17.00KGs
G W.:19.5KGs
Carton box or flight case package
Trade terms
MOQ | 1 pcs |
| Price term | FOB / EXW / CIF |
| Payment terms | T/T , Western union , Cash |
| Package | Carton box / Flight case |
| Delivery time | For sample order: about 3 - 5days after payment
For big order : about 5-15days after payment |
| Shipping | By air , By sea ; By express : DHL / UPS / Fedex/EMS |
| OEM | We accept OEM order |
| Warranty | Two years |
| After sells service |
If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year.
|
