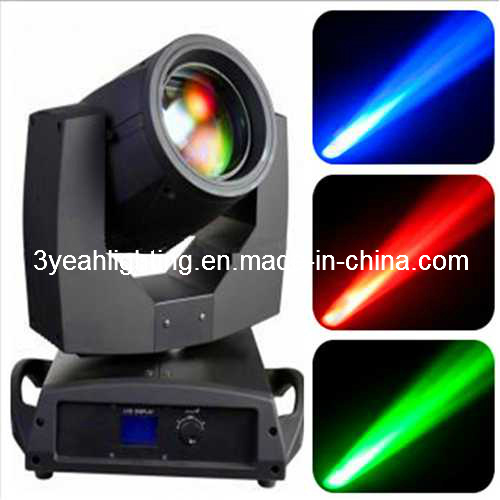

5r 200W /7r 230W Beam Moving Head Stage Light
Parameter:
Lamp Source: Philips UHP Lamp
Color temperature: 8,500K
Average Life: 2,000Hrs
Electrical
Input Voltage: AC90-240V 50/60HZ
Power Consumption: 250W
Control
Big LCD display selectable, can be turned 180°&record the using time
Control Protocol: DMX512,automatic and master/slave mode
Channel: 20CH
Optical System
YL(YiLong) 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: Rotating 8-facet prism
Frost filter
Beam angle:0-3.8 degree
Movement
Pan:540°
TilL:270°
Pan/Tilt Resolution: 16bit
Gobos&Colors
Rotating Gobos: 1 gobos wheel with 16 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
Physical
Housing Color: Black
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan and aluminum radiator
Working environment: Indoor
Operation temp:-20~40°C
Product Size: 330*390*490mm
Packing Size: 420*480*580mm
N.W.:17.00KGs
G W.:19.5KGs
Zenith moving head YC-8200
Trade terms:
1.Price term:EXW price
2.Certificate:CE ,RoHS
3.Shipping method:By DHL ,UPS,TNT ,Fedex if small order, and shipping by sea or air if bulk order.
4.Payment terms:T/T,Western union,paypal
5.Sample time:3-5 working days
6.Production time:usually 3-20 working days depend on the quantity after we received the deposit
7.packing:Carton or Fly case
8.Warranty:One year
If there is the problem with the product,firstly you need send the picture or the video to us,then let us make sure what's problem about the product,we will try our best to help you.If the problem can use the part to solve,we will offer you the replacement for free within 1 year.
9.Accept:OEM
No. |
Channel |
DMX value |
Description |
1 |
Pan |
0-255 |
|
2 |
Pan fine |
0-255 |
|
3 |
Tilt |
0-255 |
|
4 |
Tilt fine |
0-255 |
|
5 |
Pan/Tilt speed |
0-255 |
Speed adjustment |
6 |
Gobo |
0-3
4-7
8-11
12-15
16-19
20-23
24-27
28-31
32-35
36-39
40-43
44-47
48-51
52-55
56-59
60-63
64-67
68-71
72-113
114-118
119-160
161-165
166-171
172-177
178-183
184-189
190-295
296-201
202-207
208-213
214-219
220-225
226-231
232-237
238-243
244-249
250-255 |
Open
Gobo1
Gobo2
Gobo3
Gobo4
Gobo5
Gobo6
Gobo7
Gobo8
Gobo9
Gobo10
Gobo11
Gobo12
Gobo13
Gobo14
Gobo15
Gobo16
Gobo17
Gobo rotation, forward
Stop
Gobo rotation, backward
Stop
Gobo2 Shake(slow to quick)
Gobo3 Shake(slow to quick)
Gobo4 Shake(slow to quick)
Gobo5 Shake(slow to quick)
Gobo6 Shake(slow to quick)
Gobo7 Shake(slow to quick)
Gobo8 Shake(slow to quick)
Gobo9 Shake(slow to quick)
Gobo10 Shake(slow to quick)
Gobo11 Shake(slow to quick)
Gobo12 Shake(slow to quick)
Gobo13 Shake(slow to quick)
Gobo14 Shake(slow to quick)
Gobo15 Shake(slow to quick)
Gobo16 Shake(slow to quick) |
7 |
Color |
0-5
6-11
12-17
18-23
24-29
30-35
36-41
42-47
48-53
54-59
60-65
66-71
72-77
78-83
84-89
90-95
96-101
102-107
108-113
114-119
120-125
126-131
132-137
138-143
144-149
150-155
156-161
162-167
168-173
174-179
180-182
183-255 |
white
white / orange
orange
orange / light blue
light blue
light blue/ light green
light green
light green / green
green
green / Rose
Rose
Rose / Pink
Pink
Pink / Yellow
Yellow
Yellow / Light red
Light red
Light red / blue
Blue
Blue / light orange
Light orange
Light orange / warm white
Warm white
Warm white / light yellow
Light yellow
Light yellow / dark blue
Dark blue
Dark blue / white
Color 29
Color 30
Stop
Color rainbow effect from slow to fast |
8 |
Prism |
0-127
128-255 |
No prism
Prism |
9 |
Prism rotation |
0-127
128-190
191-192
193-255 |
0°-540°
Prism rotation, forward
Stop
Prism rotation, backward |
10 |
Frost |
0-255 |
Focus |
11 |
Focus |
0-255 |
Focus |
12 |
Flash |
0-3
4-250
251-255 |
off
Strobe from slow to fast
on |
13 |
Dimmer |
0-255 |
Dark à bright |
14 |
Rest |
0-25
26-76
77-127
128-255 |
No function
Reset
Pan/ Tilt reset
Completely reset |
15 |
Lamp |
0-25
26-100
101-255 |
No function
Lamp On
Lamp Off |
16 |
No function |
0-255 |
|
17 |
Gobo speed |
0-255 |
|
18 |
Color speed |
0-255 |
|
19 |
Focus speed |
0-255 |
|
20 |
Auto |
0-255 |
|
