Based on the principle of 'Provide high quality Led lights and professional service for all customers', Leomay is is engaged in researching, manufacturing and selling newly Led Lighting Products.
Now Leomay products mainly cover Led Rope Light, SMD Led strip, Led Flood Light,Led Down Light,Led Tube, Led Spotlights, Led Guardrail Lamp, Led Wall Washier, Led Underground Light, Led Underwater Light, Led Modules, Led Outline Lamp, Led Light Cup, Led Bulbs, Led String Lights, Led Screen, Led Curtain Light etc.
With 8PCS automatic production lines, 4PCS imported injection molding machines, 6PCS automatic punchers, wave solderling machine, reflow machine, LED color test instrument, automatic logic analyzer, high and low temperature test chamber etc., Leomay and all Leomay LED products are well recognized by GS, KEMA,CE, UL, NEMKO, CB ,RoHS, CCC and ISO. Now Leomay Led products are sold well all over the world and highly recognized by all customers.

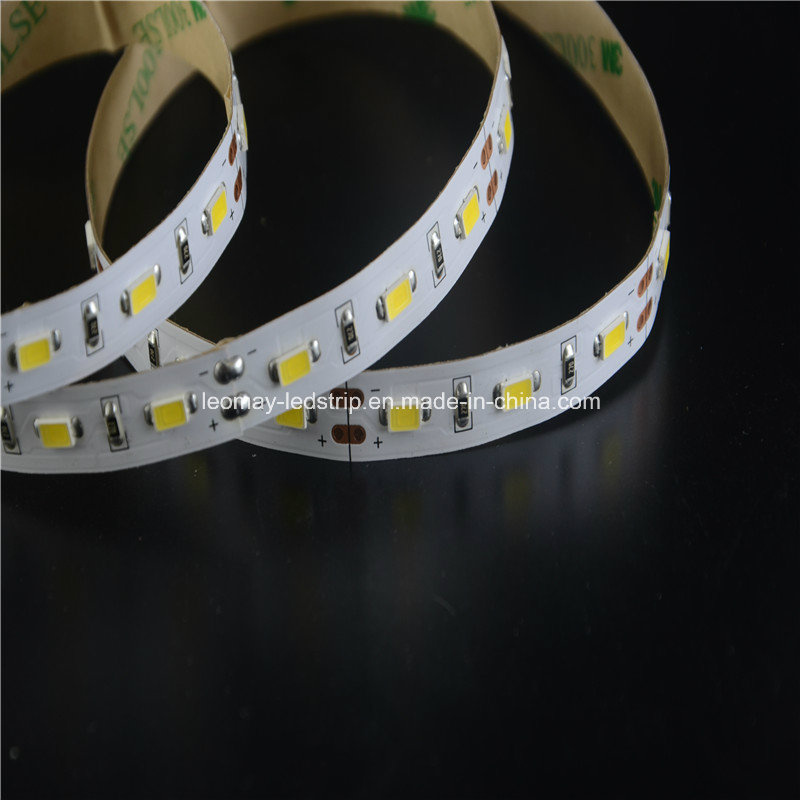

Model | LM-SMD5630 |
| LED QTY | 60leds/m |
| Volt | 12V/24V |
| Power | 18w/m |
| CRI | 80 |
| PCB Width | 10mm |
| IP Rate | IP20/IP65/IP67/IP68 |
| Color | R/Y/B/G/W/WW/RGYB |
Specifications:
1 Voltage (v): 12V/24 DC
2 Power (w): 18w/m
3 Size (mm): 12*500mm
4 Current (mA): 60
5 Background Color: White
6 LED Light Source: SMD 5630/5730
7 CRI(Ra>): 75
8 Working Temperature (ºC): -20-60
9 View Angle (°): 120
10 Length (m): 5M
11 Certification: CE, RoHS
12 IP Rate: IP20/IP65/IP67/IP68
13 Luminous Flux (lm): 11000lm/roll
14 Led Chips: Epistar
15 Cutting unite: 3 LEDs
16 Life Time (Hrs): 50000
17 LED Qty: 60leds per meter
18 CCT:
Warm White: 2600-3500K Nature White: 4000-4500K Cool White: 6000-6500K
Features:
1 CE, RoHS certified with high quality
2 3M Tape at backside, more easy to install
3 Epistar Led Chips with super brightness
4 24 months longer warranty time
5 Factory direct sale with most competitive price and shortest delivery lead time
Applications:
1 Architectural decorative lighting
2 Accent lighting
3 Border/contour lighting
4 Emergency&security lighting
5 Auditorium walkway lighting
6 Stairway accent lighting
7 Concealed lighting
8 Backlighting for signage letters
9 Channel letter lighting
10 Cove lighting
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.
Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.
Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.
Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
