Model: ZY-L5403WP

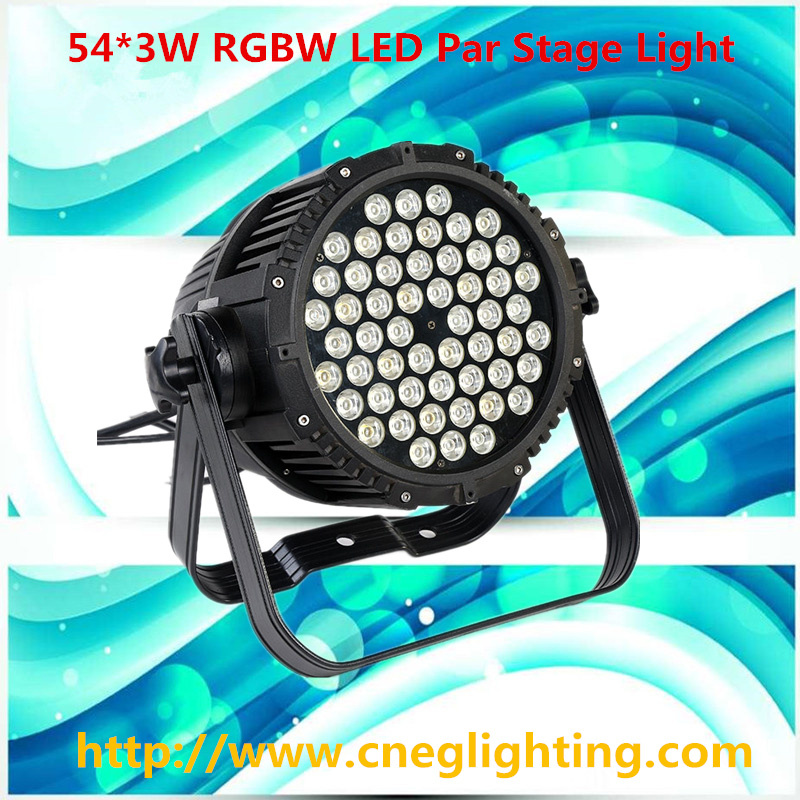

RGBW 54*3w LED Par Stage Light
| Voltage | AC90-245V |
| Power | 200W |
| Light Source | 54pcs*3W LEDs |
| Control | DMX512, Master-Slave, Auto |
| Control Channel | 8CH |
| Beam Angle | 15/25/35/45 degree (optional) |
| Dimmer | 0-100% linear dimming |
| IP Rate | 65 |
| Strobe | 0-30Hz/second |
| Warranty | 2 years |
Feature:
1. 3 pin XLR data input & output
2. Linear RGBW color mixing allows for infinite color possibilities
3. Flicker free - ready for TV / Video use
4. LED display with easy to use function keys,Color strobe effect
5. Low power consumption,Very low heat output,Run all night,Mounting bracket designed for floor, wall or truss
mount, Great for performance stages where traditional PAR cans emit a lot of heat onto performers,Smooth
RGBW color mixing (fast or slow color change operation)
6.Unique optics design system,low power consumption,super luminance,rich and splendid color
7.Stable performance,no flicker while dimmer
Technical paramenters:
Voltage: AC90~245V (the voltage can order)
Frequency: 50-60 Hz
Power: 200W
Lamp: 54pcs* 3W LEDs
Beam Angle: 15°, 25°,35°,45°( optional )
Control: DMX512,Master/slave,auto-running
Control Channel: 8CH
Control pannel:4-button control panel
Strobe:0-30Hz/Second
Dimmer:0-100% linear adjustment
Structure: Die-cast aluminum chassis,high quality cooling system
Connection mode: signal wire in/out,power wire in/out.
IP rate: IP 65
Warranty:2-year limited warranty, does not cover malfunction caused by damage
Packing
Size: 330*330*350mm
N.W: 8.5KG G.W.: 9.5KG
Packaging: 670*340*730mm(4pc/CTN)
Trade terms
| MOQ | 1 pcs |
| Price term | FOB / EXW / CIF |
| Payment terms | T/T , Western union , Cash |
| Package | Carton box / Flight case |
| Delivery time | For sample order: about 3 - 5days after payment
For big order : about 5-15days after payment |
| Shipping | By air ,
By sea ;
By express : DHL / UPS / Fedex/EMS |
| OEM | We accept OEM order |
| Warranty | Two years |
| After sells service |
If there is the problem with the product, firstly you need send the picture or the video to us,
then let us make sure what's problem about the product, we will try our best to help you .
if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year.
|
