50W/80W/100W/120W LED High Bay Light Black
| Price: |
US $ 40-500/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

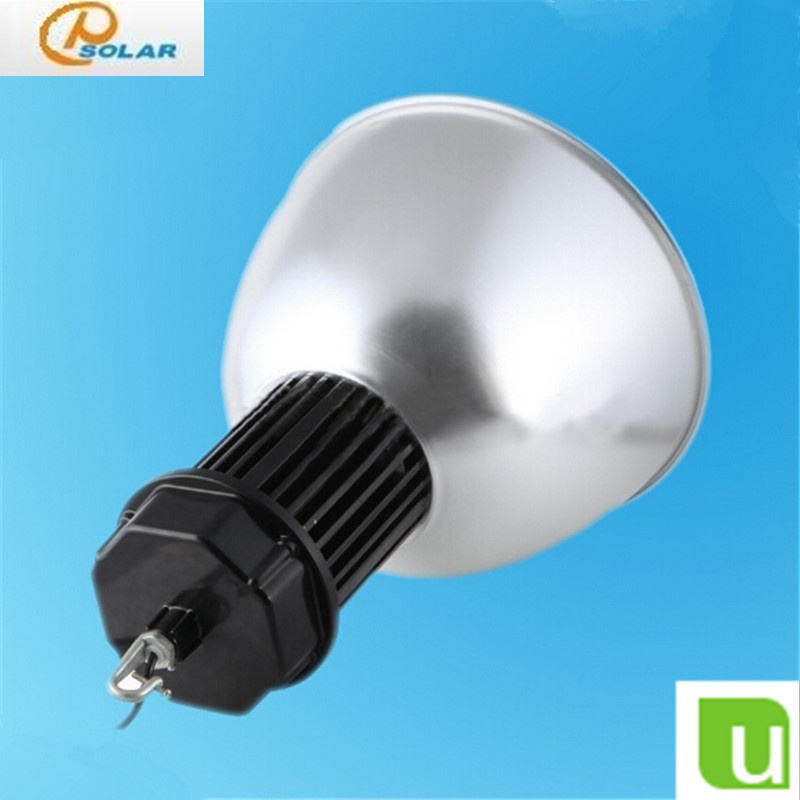

Waterproof LED High Bay Light 30W/50W/80W/100W/120W/150W/200W/400W/500W
Specification for 30w-120w led high bay light
1. LED Consumption: 50W
2. LED chip: Bridgelux 45mil
3. Luminous flux: 18000lm-19000lm
4 Power Factor(PF): 0.98,
5. LED Driver: MEANWELL
Features:
1. CE and RoHS approved.
2. Die-casting aluminum casing and high intensity toughened glass cover
3. High efficiency and power factor LED driver
4. Wide radiation angle, huge lighting area
5. Start without delay and flicker free
6. Good color rendering
7. Warm and cold color temperature are available
8. High shock & vibration resistant
9. Ideal heat dissipation design
10. No UV & IR, No Blinking and No Mercury & Lead free
11. Patented fixture design and LED package technology
12. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light.
Waterproof LED High Bay Light 50W/80W/100W/120W
Model Number
YCG-038
Power
50W
LED driver
MEANWELL
Luminous flux:
18000lm-19000lm
Power Factor(PF)
0.95
Power Efficiency
> 90%
Color Index(CRI)
Ra85
Lamp' s Efficiency (%)
> 90 %
IP Rating
IP 65
Color Temperature
Warm White: 3000-3500K, nature White: 4000-4500K, Pure White: 6000-7000K Cool White: 8000-10000K
Working Life
> 50, 000 Hrs
Light Body & Lampshade Material
Aluminum House & Glass Lens
Input Voltage / Frequency Range
AC85 - 265V / 50/60 Hz
The driver
Meanwell
Lighting Angle
45 degree, 90 degree, 120 degree
Total Harmonic Distortion (THD)
8%
Working Temperature
- 40 - + 50 ° C
Storage Temperature
0 - 50 ° C
Working Humidity
10 % ~ 90 % RH
Junction Temperature
70 ° C ± 1 0% ( Ta= 25 ° C )
weight
3.5KGS
Dimension
45° Size: 615*220*420 90°Size:555*220*490 120°Size:505*220*490
| Prod Model: |
YCG-038 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
30W-500W |
| Color Temperature: |
Pure White |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| Power: |
50W to 120W |
| Usage: |
Factory/Warehouse |
| Beam Angle: |
45,90,120 Degree |
| LED Chips: |
COB LED |
