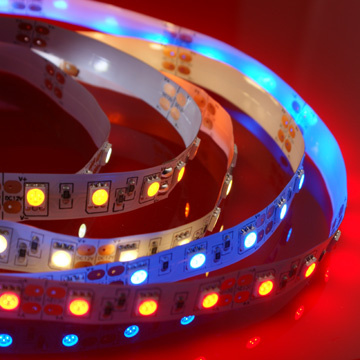

5050 RGB Flexible LED Strip /LED Strip Light/5050 LED Strip/LED Ribbon/LED Tape/strip
GL(TM)Intelligent light GL-FB-RGB LED strip is one of new product upgraded base on RGB regular change mode. A unique design, in addition to traditional RGB light effect of the changes, GL-FB-RGB increase in a unique digital control system that can reach changes like display, while the costs are much lower than the display.
LED strips(GL-FB-RGB) widely used in households, hotels, shopping malls for decorative lighting. Waterproofing products can be carried out for outdoor use, to meet the different environmental needs.
Features of Flexible LED Strip:
1. With our micro-computer processor control system, the light strip can be designed according to personal preference DIY changes in its effects, to overcome the traditional RGB light effect of changes in a single, inflexible results.
2. Provided with the control system can constitute an intelligent lighting control system, it can be stand-alone operation, multi-machine operation, can also be connected via Ethernet to facilitate large-scale use;
3. To make Animation Effects with enough reels of intelligent LED RGB strips;
4. With separate SD card interface, to achieve automatic lighting control file playback, to achieve the desired result
5. Used high output 5060 TOP SMD RGB;
6.150 PCS LED/Rell(5M);
7. Input voltage DC 12V, MAX power 36W;
8. Can be cut by every 3 LEDs and connect again with our accessories
9. PCB Size: L 5m X W 12MM;
10. Can be change into waterproof with type A and type B
Application of LED Ribbon:
1. Accessorial lighting for stairway and construction lighting
2. Backlight for single letter
3. Channel letter lighting
Other:
General Lighting Electronic Co., Ltd. All rights reserved. No part of this photo may be reproduced, in any form or by any means, without permission in writing from General Lighting Electronic Co. Ltd
|
Technical Parameters |
Items |
Detail features |
|
Product name |
150 PCS/5M 5050 SMD Flexible LED Strips |
|
LED Type |
TOP SMD 5050 LED |
|
Model No. |
GL-FB-RGB |
|
Brand Name |
General Lighting |
|
Input voltage |
DC12V or DC24V |
|
Max power |
36W |
|
LED Q'ty |
150pcs/300pcs |
|
Color range |
Pure white, Warm white, Red, Green, Yellow, Blue |
|
Color temperature |
6000-7000K(PW), 3000-3500K(WW) |
|
Long life span |
Above 50.000hrs |
|
Beam angle |
Wide |
|
Certification |
CE, RoHS |
|
Luminiou flux |
2697lm |
Advantages
|
1.The 5050 RGB SMD have excellent color blending, high intensity, large viewing angle, good quality |
|
2.The PCB size can be custom-made according to the customer's requirement |
|
3.Lighting evenly & gently, continuously linear light effect as well as rich color |
|
4.Flexible, easy to install & maintain, Strong enough to against any shock, easy to transport |
|
5.High brightness & Cold Solid State Lighting LED |
|
6.Environment friendly, waterproof, UV resistant. |
|
7. Three LED makes one group and each group can be cut according to the length requirement. |
|
8. Adopting high quality SMD LED as light source, at present Red/Green/Blue/Yellow/White/RGB are available. Large viewing angle, nice polish, wide voltage constant current to ensure uniform brightness. |
|
9.It can be widely used for indoor decoration, small floodlight, cove lighting, edge lighting decoration, stair decoration, outline drawing, car decoration, shop window decoration, super-thin light box and channel letters |
