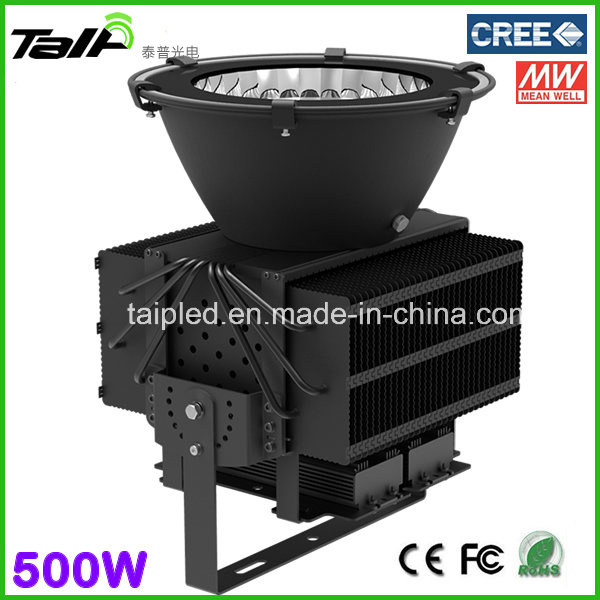

500W IP65 Outdoor Lighting LED Flood Light with meanwell driverFeatures:
1, 216 °adjustable angle
13 flexible positions makes project angle can be adjusted within 216 °.
2,Copper heatpipe
By riveting the heatpipe to the fins , the heatpipe can conduct heat rapidly from chips bottom to the fins, greatly lower down the temperature of light source, extending its life span.
3,Use Pure Aluminum Reflector
with different beam angle, 25 degrees,45 degrees, 60 degrees,90 degrees and 100 degrees.
4,Respirator design
Waterproof design, eliminating mist, avoiding condensation,improving quality,extending the life span.
5,92% reflective rate
Reflector's beam angel 25°/45°/60°/90°/100°,Reflective rate could reach up to 92%.
6,The lifespan is more than 5,0000 hours;Energy Saving 80% compared with traditional Fluorescent lamp.
7,Water-proof design :IP65.
8,Guarantee:5 years warranty with the Meanwell driver.
9,Widely used in the lighting of Factory line, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums etc.Specifications:
Item No.: TP-H-HB500WPower: 500W
Input Voltage: AC85-265V
Size: H374* Dia497
Lumens: >40000Lm
LED Type: CREE XB-D
LED Qty: 280pcs
Power Factor: >0.98
Driver Brand: Meanwell driver
Reflector beam Angle: 25°/45°/60°/90°/100°
LED lighting efficiency: 100-110LM/W
CCT: 2700-6500K
CRI: 85Ra
Technology: 3D heat dissipation+ Anodized aluminum
Material: High purity Aluminum+Copper heatpipe
Reflector material: Aluminum
Lifespan: 50000hours
Surrounding: -35°C - +55°C
Warranty: 5 years

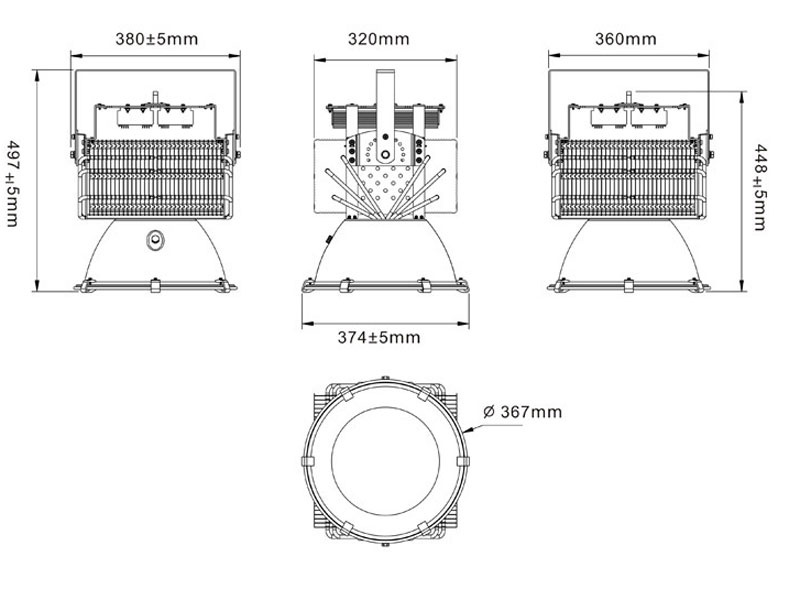

Size Pictures:Appication:
LED Flood light is widely used in shopping center,exhibition hall,parking lot,stadium,gymnasia,billboard,park,statue,government lighting decoration project,landmark or building,public square and passage,building connecting passage and other indoor or outdoor light applications.
About US:
We are the LED lighting factory with 6 years experience. Our main products are: LED Flood light, LED downlight, LED high bay light, LED panel,LED tube,LED street light,COB LED spotlight and so on.
LED flood light,we can produce from 10W to 500W. Use CREE or Bridgelux LED and Meanwell driver,5 years warranty.
Including LED flood lights 10W-500W
LED RGB flood lights 10W -100W
LED flood lights with PIR sensor 10W -100W
Halogen lamp replacement for 1000W.
Trade terms:
1. Payment: 30%T/T in advance, Paypal, Western Union are welcomed and 70% balance TT should be paid before delivery.
2. Research and develop by ourselves with good material.
3. Delivered in 5-10 working days
Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Distributor ship is offered for your unique desigh and some our current models.
5. Protection of your sales area, ideas of design and all your private information

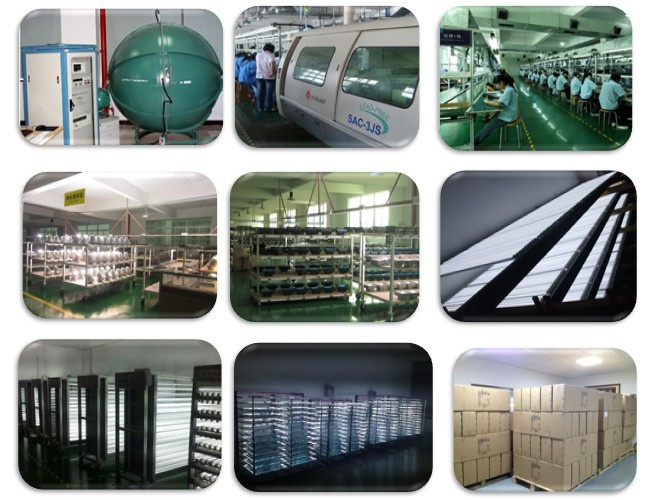

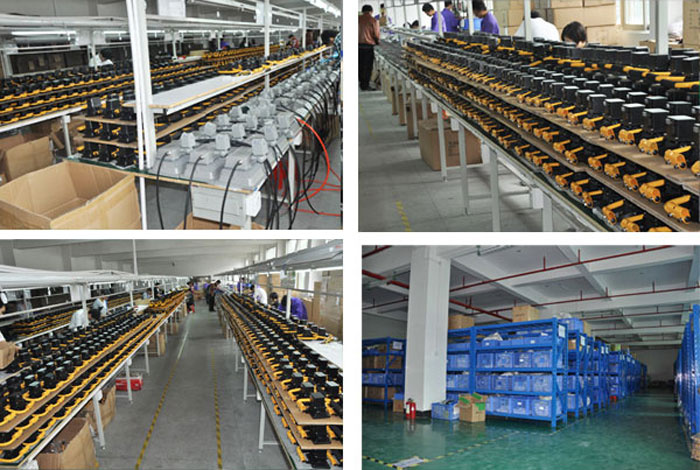

Our factory:
Item NO. |
Input Voltage(V) |
Size(mm) |
Power(W) |
Luminous |
LED Source |
Driver Brand |
Emitting Angle |
Warranty |
Carton Size |
G.W/Ctn |
TP-H-HB100W |
AC85-265V |
H374* Dia459 |
100W |
>8000Lm |
200 pcs SMD3020 |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
455*455*510mm |
8.6kg/1 pcs |
TP-H-HB120W |
AC85-265V |
H374* Dia459 |
120W |
>9600LM |
260 pcs SMD3020 |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
455*455*510mm |
8.6kg/1 pcs |
TP-H-HB150W |
AC85-265V |
H374* Dia459 |
150W |
>12000Lm |
90 pcs CREE XB-D |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
455*455*510mm |
9.0kg/1 pcs |
TP-H-HB200W |
AC85-265V |
H374* Dia459 |
200W |
>16500Lm |
130 pcs CREE XB-D |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
455*455*510mm |
9.2kg/1pcs |
TP-H-HB300W |
AC85-265V |
H374* Dia459 |
300W |
>24000Lm |
192 pcs CREE XB-D |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
455*455*510mm |
10.6kg/1 pcs |
TP-H-HB400W |
AC85-265V |
H374* Dia497 |
400W |
>32000Lm |
280 pcs CREE-XBD |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
465*465*550mm |
12.4kg/1 pcs |
TP-H-HB500W |
AC85-265V |
H374* Dia497 |
500W |
>40000Lm |
280 pcs CREE-XBD |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
465*465*550mm |
13.5kg/1 pcs |
TP-H-HGC500W |
AC85-265V |
H456* 437*437 |
500W |
>40000Lm |
280 pcs CREE-XBD |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
485*485*550mm |
14.5kg/1 pcs |
TP-H-HGC1000W |
AC85-265V |
H456* 437*437 |
1000W |
>80000Lm |
560 pcs CREE-XBD |
MeanWell |
25°/45°/60°/90°/100° |
5 years |
505*505*550mm |
15.0kg/1 pcs |
Shenzhen Taip Technology Co., Ltd.(Taip) is a professional manufacturer with strong capability in R&D, Production, Marketing and customer service since 2006. We have a variety of products, which including LED bulb, spotlight, LED tube, LED down light, LED High Bay light, LED panel, LED flood light, LED corn light, LED strip light and so on. Our products are widely used in indoor and outdoor lighting, architectural lighting, events lighting, commercial & advertising lighting etc.
Taip adopts the high level Auto-production Machine for the SMT assemlby and soldering, we also have our own professional light testing machines, which help us win much reputation from our customers because of the accent testing reports. The capacity of LED strip light series monthly is above 100, 000 meters, and the tubes' monthly capacity is above 50, 000 PCS.
Taip always pays close attention to customers' requirements and new products development. Our R&D team not only has rich practical operating experience, but also can help our customers to develop high quality new products with low cost. This high efficient and energetic team is good at overcoming all kinds of obstacles. With hard work and innovation these years, we have won a good reputation as one of the best quality and the largest suppliers in LED appliance field in China.
We believe in the policy of "Quality first, Customer Paramount, Service Uppermost". In order to make the life of modern people more wonderful, TAIP is willing to form a close ally with customers through our superior LED products, excellent and value-added service.
