Home LED Light Products 5 Years Warranty All in One Energy Saving Outdoor/Garden/Road Lamp Integrated 60W LED Solar Street Light with CE Approved
5 Years Warranty All in One Energy Saving Outdoor/Garden/Road Lamp Integrated 60W LED Solar Street Light with CE Approved
| Price: |
US $ 330-350/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
5 years Warranty All in One Energy Saving Outdoor/Garden/Road Lamp Integrated 60W LED Solar Street Light With CE Approved

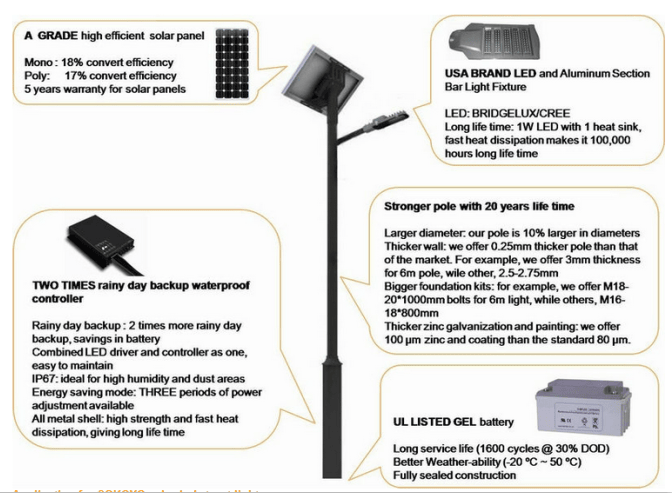

1.LED Solar Street Light Feature
a.A GRADE high efficient solar panel
Mono: 18-19% convert efficiency
Poly: 17-18% convert efficiency
5 years warranty for solar panels
b.USA BRAND LED and Aluminum Section Bar Light Fixture
LED: American brand LEDs: BRIDGELUX/CREE for our solar led street light
Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time
Light fixture: We will recommend different light fixtures according to different applications and working environment
c.STRONGER POLE with 20 years life time
A larger diameter compared with others: our pole is 10% larger in diameters
Thicker wall: we offer 0.25mm thicker pole than that of the market to make our solar led street lights to have more stronger poles.
Bigger foundation kits: for example, we offer M18-20*1000mm bolts for 6m solar led street light, while others, M16-18*800mm
Thicker zinc galvanization and painting: we offer 100 μm zinc and coating than the standard 80 μm
d.TWO TIMES rainy day backup waterproof controller
Rainy day backup: 2 times more rainy day backup, savings in battery
Combined LED driver and controller as one, easy to maintain
IP67: our solar led street light is ideal for high humidity and dust areas
Energy saving mode: THREE periods of power adjustment available
All metal shell: high strength and fast heat dissipation, giving long life time
e.UL LISTED GEL battery
Long service life (1600 cycles @ 30% DOD)
Better Weather-ability (-20 ºC ~ 50 ºC)
Fully sealed construction
2.SOLAR LED LIGHT DETAILS
3.DETAILED SPECIFICATION Detailed Specification for 8M pole 60W LED Solar Street Lights |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 140W*2PC Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 150Ah/12V*2PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 15A/12V,IP68. Automatic Light and Time Control Over-charging/discharging Protection Switch on Automatically with Light Sensor; |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 60W LED, White Color,8400LM/PC,6500K,IP65, High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer Steel, hang on the pole. |
GI Pole System: Lifespan: More than 20 years | 8M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, Resistant to Wind: ≥150KM/H |
3.Solar LED Street Light Feature:
A. LED light body:
Patents design, utility model patents, anti-typhoon,anti-wind,anti-corrosion,waterproof grade IP67;
Module design,Easy to install take apart in 2 minutes,maintain cost saving 80%;
Patent heat dissipation technical,Whick is better than other Led Light.
Installation angle adjustable which is available for different road.
B.LED lamp:
Batwing light distribution,high transmittance of optical glass,no dark area on the road;
Unique phosphor formulation,advanced technology,high birghtness imported chip,the entire lighting efficiency>100lm/W;
Independent protection technology:single lamp beads lamp beads necrosis without affection other work,which will make the lights have longer lifetime than normal products;
Brightness lose<3% per year;
No adverse glare,no flicker,elimination the glare caused by adverse ordinary lights glare and visual fatigue sight interference,improve driving safety.
C.Control system:
The use of digital intelligent control systems,non-electrolytic capacitor design,the service life up to 10 years.
Night intelligent dimming system,late at night can be a half-power operation.
D.Battery:
Using nano waterproof technology,battery waterproof and breathable,making longer battery life;
Thermostatic technology in cold and hot regions significantly extend battery life.
E.Energy efficient:
Adoption night gradient smart dimming system,full power lighting night before midnight,after midnight half-power operation,energy efficient;
Does not contain lead,mercury and other pollution elements, right the environment did not any pollution.

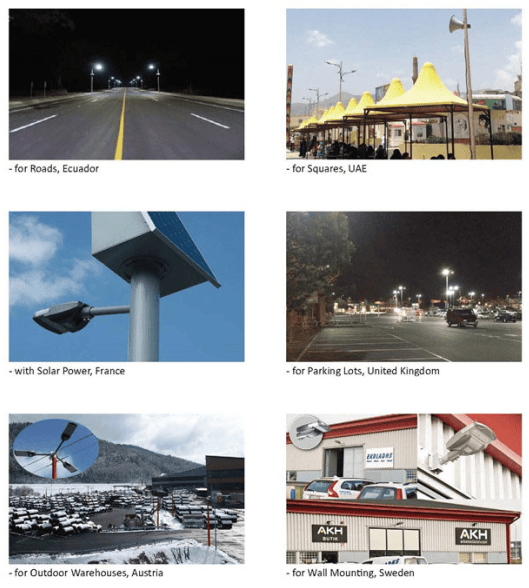

4.Applications
Applicable to urban roads,bridges,squares,schools,parks,gardens,residential areas,playgrounds,airports,docks and other places where need lighting.
5.Jinshang Solar Lighting Co., Ltd Brief
Since founded in 2009, JINSHANG is growing very fast with annual growth of 40%, in 2011 we have become one of the largest solar street lighting companies in China. Our customers are from more than 30 countries in the world, and more and more find us and request to start a cooperation.
We hold the management principle of "strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcome the communities to come to new and old customers visit our company and guide!
JINGSHANG Solar is looking forward to all of our customers and partners to embrace closer and closer together with the "Solar Age" and "Green Age"!

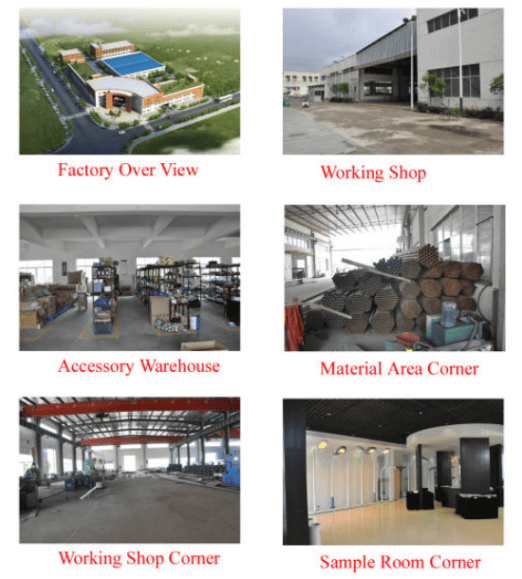

5.FACTORY SHOW
6.FAQ
Q: You are a factory, trading company or a third party?
A: We are a factory for solar led street light price, and we start our factory & production from 2008.
Q: Where is your factory located?
A: Our factory is located in Yangzhou City, Jiangsu Province, China, near Shanghai
Q: What is your minimum quantity for solar led street light price, can you send me sample?
A: We are honored to offer you samples. Our minimum ordered quantity is 1 set
Q: How does your factory do regarding quality control?
A: JINGSHANG will always regard the quality for solar led street light price as the most important thing. As a supplier with TUV, CE, ROHS certificate, our solar led street light price will go through around 30 tests before being sent.
Q: What's the warranty of your solar led street light prices?
A: We have the warranty of 2-5 years for our solar led street light prices.
| Prod Model: |
JS-A20158160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Js-A20158160 |
| Lamp Power(W): |
60W |
| Chip: |
CREE |
| Average Life: |
>8000h |
| Lamp Luminous: |
>5500k |
| Working Lifetime(Hour): |
50000 |
| Working Temperature: |
-20 - 50 |
| Illumination Time: |
8h |
| Power Supply: |
DC |
| Color Temperature: |
Warm White |
| Lamp Body Material: |
Aluminum Alloy |
| Power: |
60-100w |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
ISO |
| Input Voltage: |
220v |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
CREE |
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.
Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances
We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.
Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.
In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
