CST Professionally Made Bridgelux 45mil LED as light source, CE Approval Driver, 60W LED Street Lighting:
LED Street Light Features:
1), Adopt Bridgelux super brightness LED, high color index,long life with 50,000 hours and energy saving up to 50% more than traditional lighting source.
2), Professional wide-angle optical lens design oriented to improve the effective utilization of light. Great exposure span, while ensuring uniformity of surface radiation. The lamp is designed with glare to improve traffic safety.
3),The lamp is designed with patented and new monolithic modules, which with independent drive, avoiding the failure of a single module that affects the light effect of the lamp, replacing modules in high-altitude easily.
4), The appearance uses streamlined design and the cavity is designed with cross-ventilation, which can effectively reduce the air resistance and improve the Anti-wind performance of the product.
5), Directly working at 85-277V~, a direct replacement of traditional lamps. Angle adjustment and wireless intelligent controller can be needed by demand.
Environment friendly,fast start-up,no flickering and humming,without ultraviolet and infrared radiation, free Hg and other poisonous material.
6), The driver is low voltage,constant voltage and constant current. The modules work independently.
7), Optical lens is inventive and with surface patent.
8), Applied to road (including secondary road,branch road,block road ,but tunnel) and outdoor lighting etc.
9), According to need matching Angle regulator and intelligent controller.
LED Street Lamp Specifications:
Model | CST-LS-01-60W | CST-LS-01-120W | CST-LS-01-180W | CST-LS-01-240W |
Watt | 60W | 120W | 180W | 240W |
Driver & LEDs | Meanwell Driver & Bridgelux45mil led |
LED Quantity | 56*1W | 112*1W | 168*1W | 224*1W |
Input voltage | 85-277V AC |
Lumen Efficieny | 90-100lm/W |
Emitting Color | 2700-7000K (Optional) |
Ra | >75 |
IP grade | IP65 |

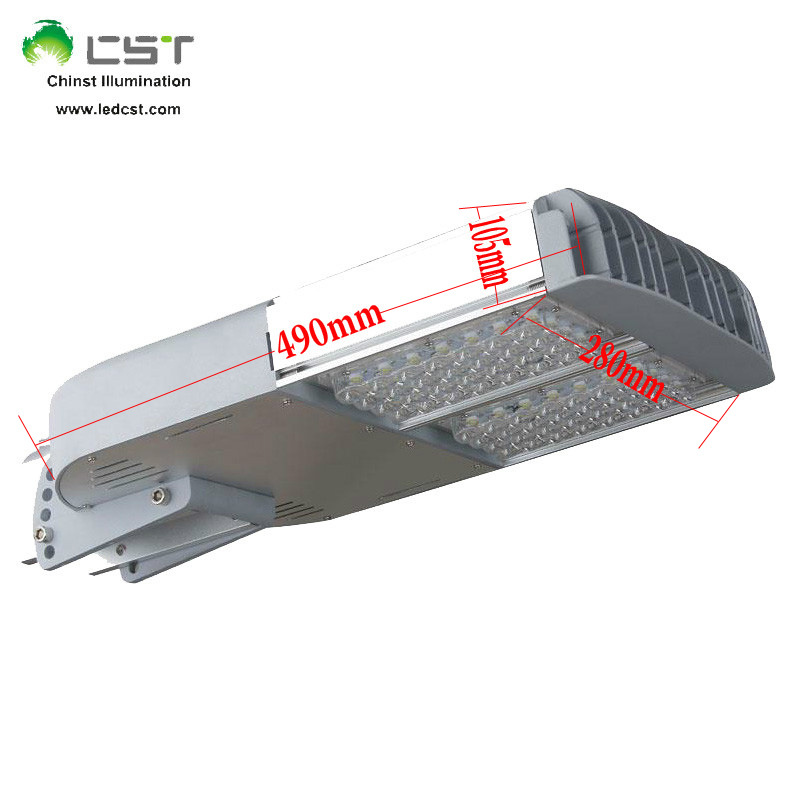

Dimension | 490(L)×280(W)×105(H)mm | 636(L)×280(W)×105(H)mm | 786(L)×280(W)×105(H)mm | 936(L)×280(W)×105(H)mm |
Rotatable angle | Max 30 degree | Max 30 degree | Max 30 degree | Max 30 degree |
Lifetime | 50.000hours |
Operation Temperature | -30ºC~+55ºC |
Storage Temperature | -40ºC~+85ºC |
Warranty | 5 years |
Application of Outdoor solar street LED Lamp:
1)road
2)highway
3)villa
4)country yard
5)park
6)garden
7)square
8)street and so on.
LED Street Light installation note:
1), Before installation, the unit should be checked for damage that might have occurred in transit. If any damage is found, do not install the product.
2), To avoid potential hazard, the replacement of external cables and wires should be processed by the factory, local representatives or the other qualified technician.
3), The input voltage should not exceed the operating voltage of the lamb, that ranging from 85V to 277V.
4), The installation and wiring connection should be carried out after turning the power off.
5), Please ensure the length of power cords satisfy the installation. Tensile force and shear stress should be prevented for cables and plugs. Do not kink cables. Output cables should be laid separately at a distance from the others.
FAQ:
1. What are your market reach throughout the region?
Our markets around the world in every corner, we have more than 6 years of experience in foreign trade,producers and distributors to reach more than 300.
2. What is your main product line is made?
We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting and outdoor lighting. But led tube,led Street,led panel light,led high bay, are our main products line.
3. Your factory or trading company?
We are a factory, we provide OEM services. Some famous foreign supermarkets and we often collaborate.
4. You have the ability to do independent research and development?
Our engineering department has 4-5 people, we have the research and development capabilities. We also collect regularly each customer feedback, product improvement and new product development. We also hold monthly new product launches.
Chinst (CST) Illuminication Co., Ltd, located in Shenzhen city in China, is professionally engaged in R&D, manufacturing, marketing and installation guide of LED products. The engaged LED products in CST Company involves LED Panel Light, LED Tube Light, LED Flood Light, LED Highbay Light, LED Tunnel Light, LED Street Light which are used around the world in decorating millions of homes, landmarks, buildings, workplaces, shopping centers and alike, and make the world more colorful.
CST excellent developing group, advanced manufacturing base, expertized instrument can research and develop new products according to market requirement and client' S demand, now CST products with most high-quality and reasonable price is welcomed by numerous users.
CST have implemented ISO9001 quality management standard, production quality strictly according to the managemet system. All products pass CE, RoHS, or SGS certificates and other authorative certificates required by other clients in the world. Each new kind LED product from CST Company must be test at least 6 months before mass production. We also set up a whole system of purchase, producing, final examine, project test for controlling every production link so that to ensure the quality. Each batch of LED finished products from CST Company must be 100% testing before putting into market. In a word, our concept to product quality is "pursuing best, reaching better".
Every year, CST join in different Fairs held in home and abroad, e. g. Canton Fair, HK international lighting fair, Frankfurt lighting fair, Italy lighting exhibition, etc. Besides, ODM/OEM are also a part of business that we have been doing. We work closely with our clients to ensure their complete satisfaction. Our motto is quality, efficiency and competitive price. We believe that good business comes from first-class Quality and excellent reputation. And we sincerely hope to establish long term cooperation with new and Old customers.
