Specifications
LED industrial light
Brand: Mokk lighting
Life: 50, 000h
Color: Black and Silver
Input Voltage: AC85-265V
Lumions Flux: 15000Lm
LED Chips: Epistar or Bridgelux
Colour: 2300-8000K
Power Supply: Meanwell Power
Beam Angle: 45/90/120degree
Power: 150W

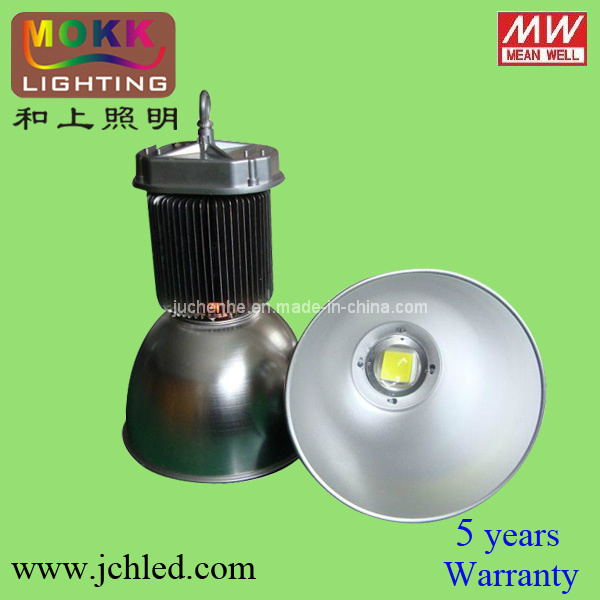

Product Name: LED high bay light
Applications
LED industrial lighting, widely used for Indoor and outdoor places: Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition eetc.
Key features
1. The high power LED light Bay Light source adopts the integration of imported single high power LED, with the special design of integrating many chips into one lighting source.
2. The crust in aluminum alloy die casting ensures the efficiency of heat emission, guaranteeing the light a long life span.
3. The high pure imported aluminum as the reflector has high reflecting efficiency, and it can make sure the luminous flux, controlling the light inside of a useful area. It improves the efficiency of light uniformity and utilization, showing the LED advantage of energy saving.
4. New high efficiency constant current driver. Wide range of input voltage: AC100-240V.
5. No delay start. No waiting. It can reach its normal light as soon as it is turned on. No noise.
6. No electrical wave, conforming to CE.
7. Environment friendly and no air pollution. We exert the design of using cold light source. It's no heat
Radiation. There is no ill to our eyes and skin. The floodlights do not have lead, hydrargyrum and any other
Contamination. It is really environment friendly with RoHS certificate.
Production Lead time
1 Less than 500 PCS: 7-10 working days.
2 Between 500 PCS and 1000 PCS: 12-18 working days.
3 More than 1000 PCS: 22-30 working days
Packing
Less 4PCS: Lamp Body and Reflector are packed in different box.
Above 4PCS: 10PCS reflectors packed in one CTN, 4PCS packed bodys in one big CTN.
Parameter of 150w led high bay lights |
MAIN SPECIFICATIONS (T=25°C) |
NUMBER | ITEM | DESCRIPTION |
1 | Input Voltage | AC100-240V 47-63Hz,AC85-265V,277V,DC12-24V |
2 | LED | 2PCS high power Epistar(35mil) or Bridgelux(45mil) ,cree led high bay lights |
3 | Power | 30w/50w/80w/100w/120w/160w/180w/200w/300w |
4 | LED Efficiency | 80-90LM/W,90-100lm/w,110lm/w,130lm/w |
5 | Initial Flux | >13500Lm (Cool White) |
>13050Lm (Natural White) |
>12450Lm (warm white) |
6 | Power factor | >0.95 |
7 | Color | Warm white/Natural white/Cool white/White/Red/Green/Blue/Yellow/Black/Purple/Pink/RGB |
8 | Color Temperature | 2700-3300K (Warm White) |
4000-5000K (Natural White) |
5300-7000K (Cool White) |
9 | Center Illuminance | 1.5M:3260 Lux |
3.0M:815 Lux |
6.0M:183 Lux |
10 | Beam Angle | 120°/60 °/100°/50 °/80 ° |
11 | Life Time | >50,000 Hours |
12 | Operating Temperature | -40°C to +55°C |
13 | Storage Temperature | -25°C to +65°C |
14 | Connect Wire | Brown L |
Blue N |
Yellow/Green G |
15 | Certifications | CE, RoHS,EMC,LVD,IES,ISO9001:2008 |
16 | Weight | 4.7KG |
17 | Size | 450X312×205mm |
18 | IP Code | IP65 waterproof/IP40 |
19 | Application | factory,warehouse,storehouse,gym,dock,billboard,building,tunnel,landscape,city lighting projects,railway,construction,projector advertising,industrial lighting |
SHENZHENSHI JU CHENG HE PHOTOELECTRIC Co., Ltd. An high technology enterprise which is specialized in developing, manufacturing, marketing, servicing and design of LED lighting. Our main products include LED spot light, LED bulb light, LED fluorescent light, LED street light, LED panel light. All of the products have the certificates of CE, RoHS and it mainly use in industries, homes, building projects and shopping malls. We have set up a complete and scientific modern quality management system. Our Headquater is located in Shajing town in Shenzhen.
We adhere to the policy of "high quality, high efficiency, continuously creative, continuous enterprise", do our best to provide our customers with energy-saving LED lighting solution. We have fist-class R&D team and qualified selling group in order to offer high-quality service to our customers. Our good faith, powerful strength and high-quality has been recognized by LED industry. Pollution-free and energy-saving are our faith and keep hard working at green energy resources for human.
