Home LED Light Products 5.5 Inch 15W SMD LED Down Light

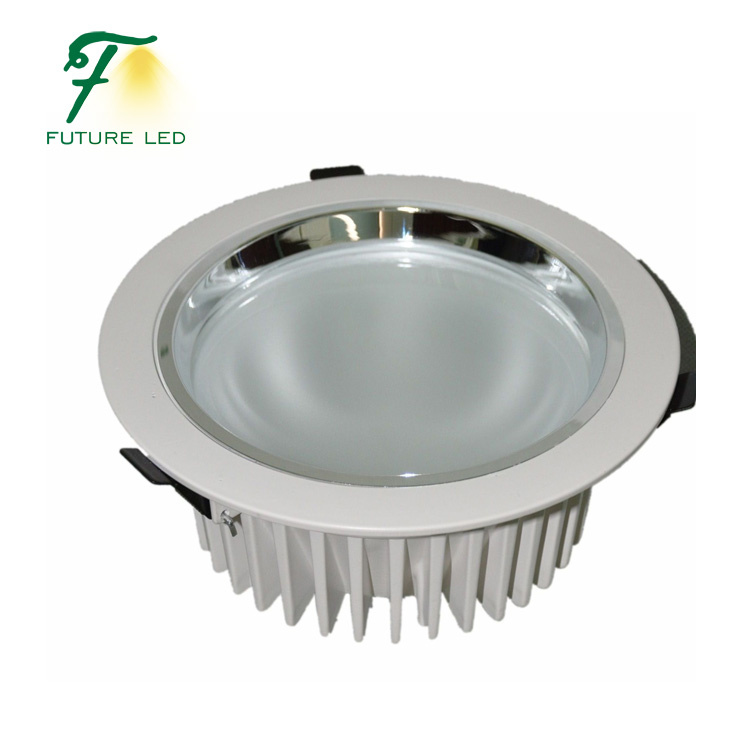

5.5 Inch 15W SMD LED Down Light

5.5 Inch 15W SMD LED Down Light
Price: US $ 9.5-9.69/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: T/T,D/P,Paypal,Western Union
5.5 inch 15W SMD led down light

1) High brightness, high efficiency, energy-saving, low electricity consumption.
2) Built-in reflector, high light output and uniformly light
3) Integrated heat dispersion structure, low lumens depreciation and long lifespan
4) Built-in constant current driver, universal available, Easy to install.
5) Aluminium alloy frame with high-thermal conductivity, simple and nice.
6) Unique patented heat sinking design
7) Vibration resistant Easy to transport and install.

Specification:
Model No
photoelectric parameterPacking Detail
FT-DL1501-25Surface Ring Size: 2.5 inch
Procuct Size:  90x54mm
Hole opening:  Φ75mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 3 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB, Acrylic cover
Power:  3W
Light Source: SMD5630(6*0.5W)
Lumin:  225LM±8%
Luminous Efficiency:  60-70LM/W
Beam Angle:  120


Inner Box: 10*10*7MM
Outer Carton: 52*21.5*37CM
QTY per Carton: 50PCS
Net Weight: 18KGS
Gross Weight: 20.5KGS


FT-DL1501-30Surface Ring Size: 3 inch
Procuct Size:  Φ100*H50mm
Hole opening:  Φ90mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 5 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB
Power: 5W
Light Source:  SMD5630(10*0.5W)
Lumin:  335LM±8%
Luminous Efficiency:  60-70LM/W
Beam Angle:  120

Inner Box: 10*10*8MM
Outer Carton: 52*21.5*42CM
QTY per Carton: 50PCS
Net Weight: 10.5KGS
Gross Weight: 13KGS


FT-DL1501-35Surface Ring Size: 3.5 inch
Procuct Size:  Φ115*H60mm
Hole opening:  Φ90mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 7 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB, Acrylic cover
Power:  7W
Light Source:  SMD5630(14*0.5W)
Lumin:  470LM±8%
Luminous Efficiency:  60-70LM/W
Beam Angle:  120

Inner Box: 12.5*12.5*7mm
Outer Carton: 65*26.5*45CM
QTY per Carton: 60PCS
Net Weight: 12KGS
Gross Weight: 14.5KGS


FT-DL1501-40Surface Ring Size: 4 inch
Procuct Size:  Φ130*H66mm
Hole opening:  Φ115mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 9 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB, Acrylic cover
Power: 9W
Light Source: SMD5630(18*0.5W)
Lumin: 600LM±8%
Luminous Efficiency: 60-70LM/W
Beam Angle:  120
Inner Box: 13.5*13.5*8MM
Outer Carton: 68.5*34.5*28.5CM
QTY per Carton: 40PCS
Net Weight: 14.5KGS
Gross Weight: 17 KGS


FT-DL1501-50Surface Ring Size: 5 inch
Procuct Size:  Φ160*H665mm
Hole opening:  Φ140mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 12 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB,Acrylic cover
Power: 12W
Light Source: SMD5630(24*0.5W)
Lumin: 780LM±8%
Luminous Efficiency: 60-70LM/W
Beam Angle: 120

Inner Box: 16*16*7.5MM
Outer Carton: 68.5*34.5*25.5CM
QTY per Carton: 24PCS
Net Weight: 10.5KGS
Gross Weight: 13  KGS


FT-DL1501-55Surface Ring Size: 5.5 inch
Procuct Size:  Φ180*H74mm
Hole opening:  Φ165mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 10 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB, Acrylic cover
Power: 15W
Light Source: SMD5630(30*0.5W)
Lumin: 960LM±8%
Luminous Efficiency: 60-70LM/W
Beam Angle: 120
Inner Box: 18*18*8MM
Outer Carton: 52.5*39*39.5CM
QTY per Carton: 30PCS
Net Weight: 16 KGS
Gross Weight: 18.5KGS


FT-DL1501-60Surface Ring Size: 6 inch
Procuct Size:  Φ190*H80mm
Hole opening:  Φ175mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 18 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB
Power: 18W
Light Source: SMD5630(36*0.5W)
Lumin: 1150LM±8%
Luminous Efficiency: 60-70LM/W
Beam Angle: 120

Inner Box: 19*19*8MM
Outer Carton: 52.5*39*39.5CM
QTY per Carton: 24PCS
Net Weight: 13 KGS
Gross Weight: 15 KGS


FT-DL1501-70Surface Ring Size: 7 inch
Procuct Size:  200x80mm
Hole opening:  Φ185mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 24 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB, Acrylic cover
Powe:  24W
Light Source:  SMD5630(48*0.5W)
Lumin: 1550LM±8%
Luminous Efficiency: 60-70LM/W
Beam Angle: 120
Inner Box: 20.5*20.5*8.5 MM
Outer Carton: 62.5*41.5*42.5CM
QTY per Carton: 28PCS
Net Weight: 17KGS
Gross Weight: 19KGS


FT-DL1501-80Surface Ring Size: 8inch
Procuct Size: Φ230*H85mm
Hole opening:  Φ205mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  4 Parallels and 15 Strings or 6 Parallels and 10 Strings
Including:  Surface Ring, Heat SinkAcrylic cover, diffuser plate, spring, screws, PCB,
Power: 30W
Light Source: SMD5630(60*0.5W)
Lumin: 2000LM±8%
Luminous Efficiency: 60-70LM/W
Beam Angle: 120

Inner Box: 23*23*9.5MM
Outer Carton: 60.5*47.5*47.5CM
QTY per Carton: 24PCS
Net Weight: 22 KGS
Gross Weight: 24.5KGS


FT-DL1501-100Surface Ring Size: 10inch
Procuct Size:  300x100mm
Hole opening:  Φ270mm
Material:  Die-Casting
Color:  Siliver, White
PCB:  2 Parallels and 20 Strings
Including:  Surface Ring, Heat Sink, diffuser plate, spring, screws, PCB, Acrylic cover
Power: 40W
Light Source: 1W High Power(40*1W)
Lumin: 3000LM±8%
Luminous Efficiency: 60-70LM/W
Beam Angle: 120
Inner Box: 30*10*30MM
Outer Carton: 52*31*62CM
QTY per Carton: 20PCS
Net Weight: 25KGS
Gross Weight: 28KGS




Application

1 ) Replacement to incandescent, halogen, energy saving lamp and metal halide lamp
2 ) meeting rooms/school classrooms/office buildings
3 ) hospitals/factories/, hotels
4 ) supermarkets/home lighting
5 ) other commercial and residential place

Trade Terms:

  1. Payment: T/T in advance (30% deposit,70% balance before delivery)
  2. Lead times: Within 7-15 days after receiving deposit.
  3. Warranty: 3-year warranty, all led are imported and encapsulated from Taiwan, component full voltage           range drivers.
ISO9000 Certificate Factory

FAQ:
Q: Why Choose Futureled Lighting?
(1) Futureled Lighting have the engineer with more than 15years working experience, can ensure our new product with high quality but cheap price than others.
(2) Pipeline working line can ensure our delivery time.
(3) High Quality with quality report.
(4) Professinal sales team with more that 7years experience, will give a good service to all of the customers.
(5) Soonest reponse for the inquiry.
(6) 2 -4 years guarantee for products, best after-sales service

Q: Almost all LED tube light are the same exterior, how to tell quality?
A: Price and exterior.
Though LED lighting products are with same or similar exterior, due to raw material cost difference is big, poor quality are all poor housing exterior with short FINs and light weight. So prices are also low.
Besides, the driver exterior is also low-end with poor IC, MOS and capacitances.

Q: What is CRI?
A: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED tubes, the CRI is mostly 70-75Ra, and 80Ra with higher cost. But there are some suppliers write a high data to attract clients, please note.

Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance. Higher PF and efficiency with higher cost.

Q: Can we get support if we have our own market position?
A: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion, to find the best solution for you.



Prod Model: FT-DL1501-55
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: 5.5 Inch 15W SMD LED Down Light
LED: Taiwan Imported SMD 5630
Lifespan: 30,000 Hours
CRI: 80
Power: 15W
Light Source: LED
Installation: Embedded
Lamp Installation: Screw Holder
Application: Home Furnishing
Material: Die-Cast
Source Number: 30PCS 5630
Shenzhen Feiyingte Lighting Co., Ltd., established on 2010, is a manufacturer of production, research and development, sales and service in one of the professional LED lighting products. In response to the national "energy saving" the call, the company is committed to energy-efficient lighting products R & D and innovation, combined with intelligent, has introduced a "more energy, more environmentally friendly, more green" lighting products, the main products include LED T8, T5 fluorescent lamps tube series, LED bulbs, LED Ceiling Lights, LED spotlight series, LED street light series, LED corn light series, LED mining lamp, LED ceiling lamp series, LED intelligent lighting and other products. Innovative products design aesthetics, advanced technology, high quality, using advanced COSTECH packaging technology, a breakthrough LED thermal bottleneck, increased luminous efficiency, the product has many features, such as high efficiency, high CRI, low energy consumption, Longer life, no radiation.

Our products got the cercificate of CE, RoHS, 3C, and produced based on ISO9001, Shenzhen Future Lighting Co., Ltd have a enormous basement on research and development and production, owned abundant professional knowledge and management experience, got a good reputation on LED industry.

We have a good and strong team who can offer R&D service, can solve your problems in time, can grow with you and win the markets for you, our main mission in this job is to make a win-win contract and a long term business relationship with our clients. Good Quality, exquisite & Sound Services and also competitive prices are our always object in all the business.

We are located in a place beside the main road to Shenzhen International Airport and the center of city, takes only 35 minutes by car from our company to the airport, easy and convenient for you to visit our factory.

Shenzhen Future Lighting Co., Ltd, looking forward to your visit.
