4X30W COB LED Pixel Bar Stage Light

4X30W COB LED Pixel Bar Stage Light
Price: US $ 98/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal

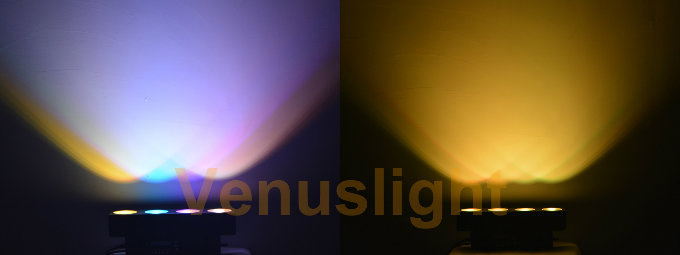

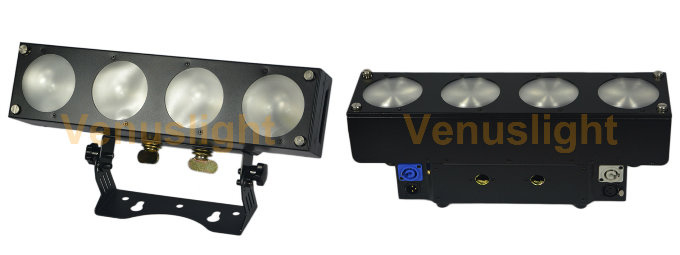

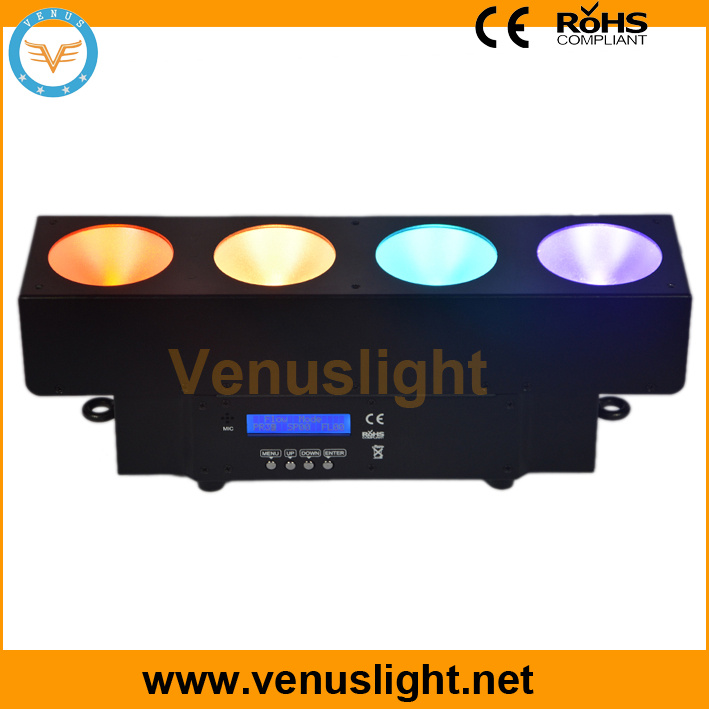

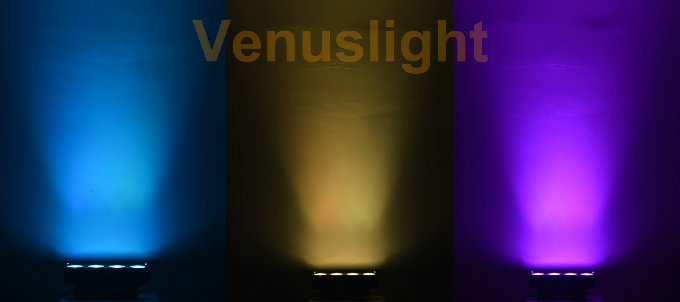

VSM-T3004 combines a pixel-mapping effect and a powerful linear wash light into one unique, multipurpose fixture. Powered by four RGB LEDs with chip-on-board (COB) technology, it utilizes a unique reflector cup to produce large pixels of light and create intriguing sweeping and runway chase effects that become the core of your lighting display.

Input voltage: AC 100-240V,50-60Hz

Output voltage: DC12V

Power consumption:120W

LED lamp:COB LED

Lamp specs:3in1- LED-30W(4PCS)

Driving current: 670mA

PWM dimmer:32BIT MCU(16BIT-PWM)

Life span:  50000~100000h

Control Signal: DMX512, Master/slave

Control Mode: Stand Alone, DMX mode, Master/slave, sound control

DMX channels: 3,5,6,9,11,12,17CH

Color effect: 25 built-in programs, each LED can be controlled individually

Functions: Dimming, Strobe, rainbow, Gradual Change, matrix, sound control

Beam angle: 60 degrees (reflection cup)

Cooling mode: Fan cooling

IP rated: IP20

Dimension: 400 X 100 X 155mm(15.7" X 3.9" X 6.1")

Net Weight:3.7Kg (8.1lbs)





Prod Model: VSM-T3004
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LEDs: 4 PCS 3in1 30W COB LEDs
Dimmer Curves: 5 Selectable Dimmer Curves
Refresh Rate: 1.5kHz,Flicker Free Operation
PWM Dimmer: 32bit MCU(16bit-PWM)
DMX Channels: 3,5,6,9,11,12,17CH
Dimension: 400 X 100 X 155mm(15.7" X 3.9" X 6.1")
Net Weight: 3.7kg (8.1lbs)
Material: Aluminum
Emitting Color: RGB
Base Material: Aluminum Alloy
Lifespan: 10000 hours
Certification: FCC IC EMC LVD
Electric Current Type: AC
Beam Angle: 90??
IP Rating: IP20
Input Voltage: AC110-AC260
Venus-PRO Technology Co., Limited. Is a professional and first class stage lighting manufacturer specialized in R&D, production, sales and service. Venus lighting dedicates its effort to providing customers with high quality LED stage lighting products including indoor and outdoor LED PAR lights, LED Bar lights, LED wall washers, LED matrix lights, LED moving heads, Beam lights and DMX controllers, etc.

Established in 2005 and located in Guangzhou with convenient transportation, Venus lighting has obtained massive support and trust from customers. Our products are sold throughout the country and worldwide.

Venus lighting strictly sticks to ISO-9000 Quality Management System manufacturing standard to make sure Zero defect for products. Each product from Venus passes the QC, aging tests and the CE conformation. Its products are widely used in professional theater, entertainment venues, bars, clubs, nightclubs and enterprises multi-function hall, conference room, city lighting projects etc.

Venus lighting will constantly endeavor to deliver more innovative products to the marketplaces, adding value through reliable quality, competitive pricing, outstanding after-sales support and partnership to our customers.
