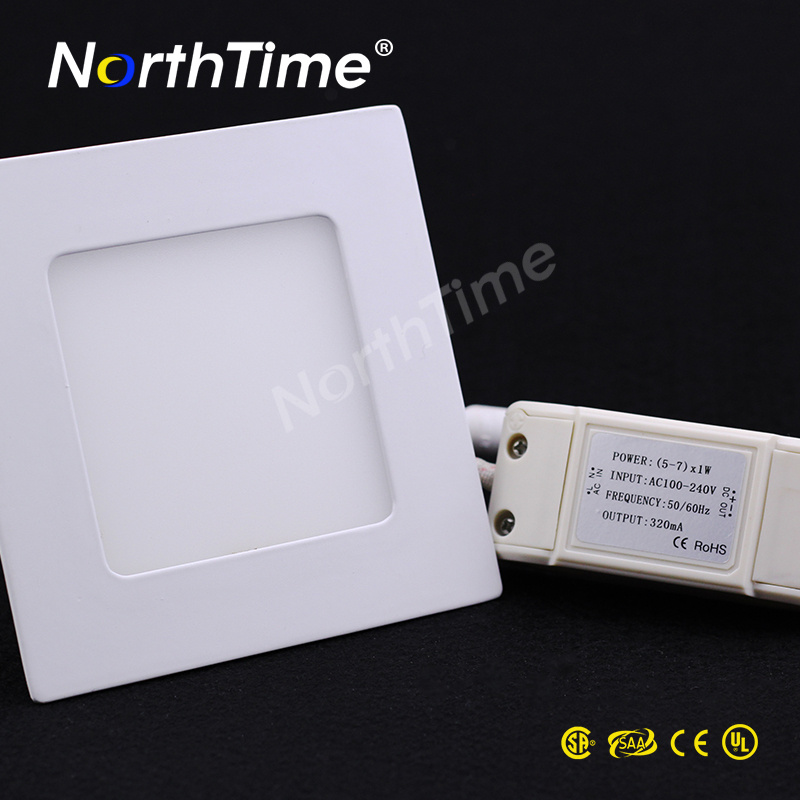

4W Square Ultrathin LED Down Light
A. Parameters
1. Item Type: NOR-CL-4W-T30DF
2. Surface:Smooth
3. LED Light Source: SMD 2835*20pcs
4. Warranty(Years): 3
5. Input Voltage(V): AC 85V-265V
6. Lamp Power(W): 4
7. Lamp Luminous Flux(lm): 320lm± 10%
8. Lamp Luminous Efficiency(lm/w): 80
9. CRI : Ra>75
10. Color Temperature(CCT): WARM WHITE(2700-3000K)
11. Working Temperature(degree ): -20 - +55
12. Working Lifetime(Hours): 30000-40000
13. Lamp Body Material: DIE-CASTING ALUMINUN
14. IP Rating: IP54
15. Certification: CE&RoHS
16. Place of Origin: China (Guangdong)
17.Working Ambient Humidity: <85%
18. Working Ambient Temperature: -20~~+55
19. Cut-out Size: 90*90mm
20. Face Size: 105*105mm
B. Installation
1. Embedded installation
The circlip is arranged on the LED lamp back, fixed with M4 screw, the ceiling opening, using the circlip on the ceiling, the size of holes as shown in fig.
2. Ceiling mounted
1). as shown in Figure 1, the ceiling mounted bracket is arranged on the back of LED lamps.
2). with 4 M4 expansion screws according to the bracket 4 10 hole position is fixed on the ceiling.
3). the LED flat lamp mounting bracket through the expansion screw, the lamp in the direction of oval hole mobility, attached to the ceiling.
4). the 4 expansion screw is arranged on the M4 lamp fixing nut.
3. Suspended installation
The product with the wire rope accessories package within the LED lighting was installed in the ceiling.
C. Packaging Detail
1. QTY: 40pcs / box 2. FCL GW: 13.3 KGS 3. Carton size: 320*300*250mm
D. Delivery Detail
3-5 working days for samples, 3-15 days for mass production
1. EXPRESS: By UPS/DHL/FEDEX/TNT it takes 3- 5 days to arrive the destination.
2. AIR CARGO:It takes about one week to arrive the destination .
3. SEA SHIPMENT:It takes about one month to arrive the destination, depending on your actual requirements.
E. Terms & Conditions
1. Payment: T/T (Western Union or PayPal are welcomed)
2. Lead time for 100~500pcs: 7-10 days, 500~1000pcs:10-15 days,for one container:25days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Guangzhou, Mainland China
6. MOQ: 5 pieces, sample order welcomed.
7. Discounts are offered based on order quantities
8. OEM available
F. Quality Control
100% of the led panel light will be tested and keep lighting for 24 hours to test its quality reliability.
Our staff members have been extensively involved in experiment and exploration for a number of years.
We have a well-organized QC system.
G. Services & Promise
1. Reply you in details within 24 hours.
2. OEM and customization services are available.
3. Discouts are offered based on order quantities.
4. Keep secret for customers private information.
Square
Product Size:105*105mm
Hole Size:90*90mm | Output Power: | 4W | Pure White 6000K
Warm White 3000K
Natural White 4500K |
| Input Voltage: | AC85-265V |
| Source Type: | SMD2835*20PCS |
| Light Flux: | 320LM |
| Installation: | Embedded |
| Lifespan: | >35000H |
| Product Warranty: | 2 Years |
