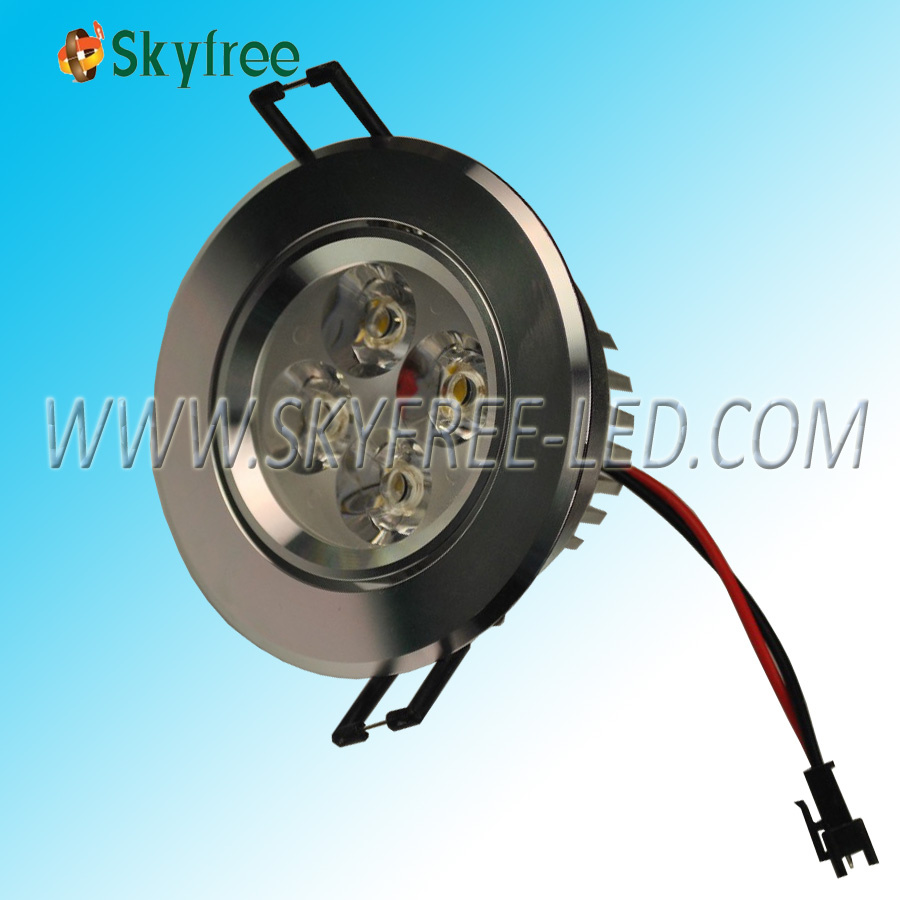

Part No: SF-DH04P01
Dimension: Φ 90*50(H)mm
Power: 4W
Voltage: AC100-240V 50/60Hz
Luminous flux: 320~400Lm
Beam Angle: 30° , 45° , 60° 120°
Color range: White/ yellow/red/green/blue.
CCT: 2700K-8000K
CRI: >70
Cutout: Φ 77 LED Source: 4 PCS high power LED
Power factor: 0.85~0.98
Life time: 30000Hrs
Certification: CE, RoHS
Warranty time: 2 years
Many power: 3W, 4W, 5W, 7W
|
Part No. |
LED Source |
Work Voltage |
Luminous Flux (LM) |
CCT |
CRI (Ra) |
Size (mm) |
|
SF-DH03P01 |
3PCS high power led |
AC85~265V |
270±10% |
5500~6500K2800~3200K4200~4700K |
≥72 |
Φ86*33(H) |
|
SF-DH03P02 |
3PCS high power led |
AC85~265V |
270±10% |
5500~6500K2800~3200K4200~4700K |
≥72 |
Φ86*49 |
|
SF-DH03P03 |
3PCS high power led |
AC85~265V |
270±10% |
5500~6500K2800~3200K4200~4700K |
≥72 |
Φ86*55 |
|
SF-DH04P01 |
4PCS high power led |
AC85~265V |
350±10% |
5500~6500K2800~3200K4200~4700K |
≥72 |
Φ90*55 |
|
SF-DH05P01 |
5PCS high power led |
AC85~265V |
450±10% |
5500~6500K2800~3200K4200~4700K |
≥72 |
Φ110*50 |
|
SF-DH07P01 |
7PCS high power led |
AC85~265V |
600±10% |
5500~6500K2800~3200K4200~4700K |
≥72 |
Φ110*50 |
Shenzhen Skyfree optoelectronics Co., Ltd, located in the reforming and opening up leading city --- Shen Zhen, specialized in LED energy-saving lighting manufacturing with its own professional R&D dept., production line and sales team. Moreover, relying on the complete industrial chain here, Skyfree has made tremendous progress since its inception in 2010.
At the beginning of company's establishment, it's mainly products are LED strips light and LED modules series. During the past 2 years; we have not been given up on strong investment in research and development of new products. After year's unremitting efforts by R&D groups, our product range has been extended to the lighting series as well, such as LED Bulb Light, LED high-power Spot Light, LED Down light, LED Tube Light, LED ceiling light as well as LED panel light. These LED lights are widely used in architectural lighting, advertising, medical lighting, boot logo and home decoration, shopping malls, offices, hotels, exhibitions, banquets, etc.
In order to satisfy the requirements of different customers, the company has a number of proficient and well- educated R&D groups and experienced high-level management team. We can not only provide the custom made LED lighting products but also supply the perfect lighting solutions for customers. Skyfree optoelectronics co., ltd is the company which full of rich experience and worthy of the trust of our customers.
"Quality First, Customer First; service first, credit-oriented" is the established policy of the company. Skyfree optoelectronics co., ltd produce remarkable LED products with first-class quality and service, she expect and willing to build a close and long term alliance in the future. For humans wonderful life, light a brighter tomorrow.
