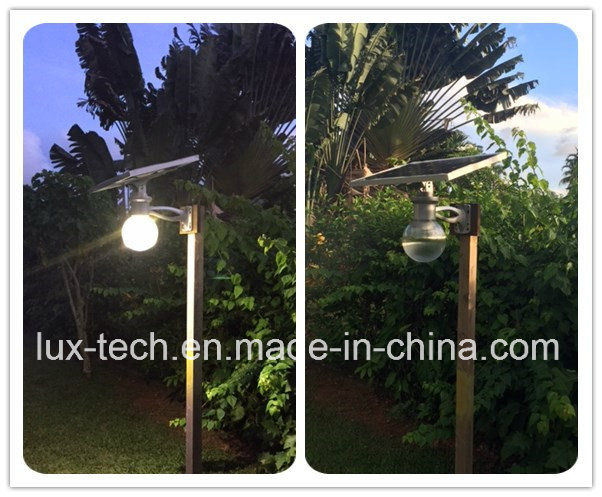

Solar smart light were used in village road, park, garden, house door, local residential area, walk way and so on.
Feature:
1. Beautiful and modern appearance, simple and fashionable.
2. Use of solar green energy, environment friendly, saving more.
3. Low voltage driving, meet the Europe standard of CE RoHS FCC.
4. No Hg, Pb or other hazardous materials, no radiation, human safety.
5. P65 grade, TVS lightning protection.
6. Long lifetime of whole lamp, low maintenance costs.
Parameter
| Type | LTE-SMT-4W | LTE-SMT-8W | LTE-SMT-12W |
| Lamp power(W) | 4W | 8W | 12W |
| Solar panel(W/V) | 12W/5V | 25W/5V | 40W/13.5V |
| Lithium battery(AH) | 10AH/3.2V | 20AH/3.2V | 10AH/9.6V |
| LED Qty | 6pcs | 6pcs | 12pcs |
| Luminous flux(Lm) | 600-720lm | 1200-1400lm | 1500-1800lm |
| LED chip | BridgeLux |
| Color temperature(K) | 3000-7000K |
| CRI | ≥75Ra |
| Light control voltage(V) | 1V |
| Illumination(stand by) | 30% |
| Sensor area | <10m |
| Lighting last(S) | 20s |
| Charge time(H) | 6h |
| Discharge time(H) | 24h |
| Working temperature(ºC) | -20 - 60ºC |
| Life time(H) | ≥50,000h |
| Material | Aluminum alloy, die-casting aluminum |
| Installation space(M) | 8-10m |
| Mounting height(M) | 2.5-3m | 3-4m | 3-6m |
| Packing | 2sets/carton | 2sets/carton | 2sets/carton |
| Carton size(MM) | 450*340*290mm | 490*385*300mm | 670*445*280mm |
| Weight(KGS) | 11kgs | 14kgs | 21kgs |
| 20GP qty: | 1100pcs | 900pcs | 600pcs |
| 40GP qty: | 2400pcs | 1900pcs | 1300pcs |
FAQ
1. How to install the lamp?
It can be installed on the pole, also the wall, and package include the screw, nut, and the spannner tools etc. Easy installation in 2 minutes.
2. How many rainy days it can last?
2-3 Rainy days.
3. Can it reach IP65 waterproof grade?
Yes, it is certificated by IP65 waterproof.
4. What's the difference between Motion sensor and PIR sensor?
Motion sensor also called radar sensor, works by emiting high frequency electric wave, and detect people movement.
PIR sensor works by detecting enviroment temperature changing, usually it's 3- 5 meters sensor distance.
But motion sensor can reach 10meters distance and more sensitive.
5. Can the lamp be used in strong wind environment?
Of course yes, as we take Aluminumalloy holder, solid and firm, Zinc plated,
anti-rust corrosion.
With the fast development of solar energy industry in past years, costs of solar products is
Declining rapidly, which makes solar energy the most competitive energy with good features like clean, unlimited and economical.
LTE-Solar dedicates to prompt solar energy all overthe world, so that we could breathe fresh air and see blue sky everywhere.
LTE-Solar was established in 2008, our company specializes in the R&D (research &development), manufacturing and sales of Solar street light, Solar garden light and solar lawn light. LTE-Solar has always been enthusiastic, bursting with innovative ideas and intelligent solutions. We are providing different kinds of solar lighting products, such as common solar street light and AIO series solar street light.
LTE-Solar regards high quality and innovation as the most important value of the company. We
Always insist on the two principles which high product quality and perfect service to create benefits for our clients. Meanwhile, based on our professional technical strength and years of experience, we are providing integrated solutions from designing to installing.
In the long term, our customers not only make profit from a reliable return, but also make an important contribution to preserve the ecological environment by a green supply power mode.
