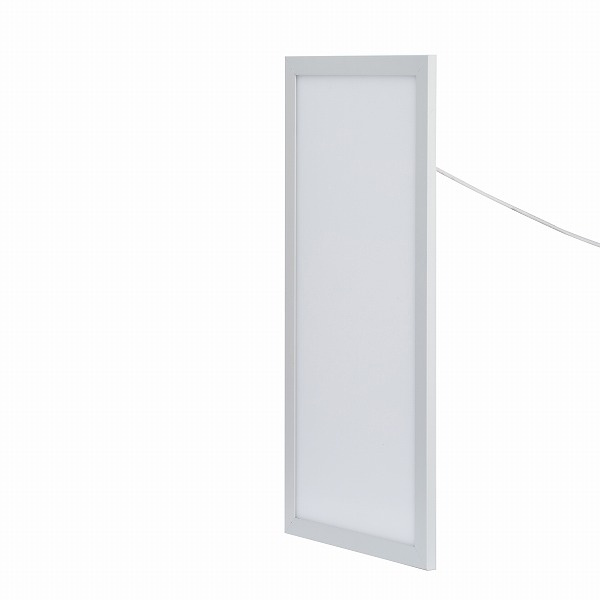

(Waterproof) Rectangle Panel Light with 300*600mm
CE EMC, CE LVD, ROHS, IP65
Introduction:
Installation of Led panel light- Embedded, Hanging/Suspending, Ceiling Panel, Surfaced mounted, Spring, Plasterboard Led panel lighting
Mainly Used in office, Meeting room, Corridor, Workshop (Plant), Airport, School, Hospital etc lighting
Absolutely, square led panel take the lead of the market: with the regular size:300*300mm, 600*600mm, 620*620mm, 300*600mm, 300*1200mm, 600*1200mm, We are in capacity of producing the panel with the size of 3000*3000mm
Dimmable function: Dimmable led panel light and Nondimmable- Triac, 0-10v, DALI (Digital addressable Lghting Interface)
Construction of Led panel Light
1. LED light guide- Imported guide plate from Japan Mitsubishi, the light guide light rate is 85% above
2. Pure Aluminum Frame-Pure aluminum frame and back plane, bright silver or paint white processing, good heat dissipation, high-grade performance
3. Uniformity of Luminance: good-Led distribute around the Edge and lighting through light guide plate (LGP)
4. LED CHIP: SAMSUNG 2TH Generation AIR325630 LEDS, WHICH pass LM-80 test, the efficiency for the single led can reach to 140lm/w
5.Drive support- Isolation constant current power supply, input voltage : AC85-270V, Output voltage: DV30-40V, Security better
6. Heat Sink- lighting evenly, no dark area, efficacy>80lm/w
7. Reflecting film: ensure the good performance of uniformity of luminance
8. Customize design, easy installation
Installation of Led panel
1.Embedded Installation without any accessories
2.Hanging/Suspending way with accessories of lifting rope (1.2cm)or Cups connector
3.Surface mounted installation with accessories of Lshape, Zshape, Sliding frame etc
4.Spring installation
Why choose us?
1) 1.1 SDCM: There are strict rules for the color tolerance. The international standard of LED amp for the color tolerance is lower than 5 SDCM
2) Samsung led LM-80: Ewin adopts the samsung 2nd Generation Air3s25630 leds,
3) CCIC-SET TEST REPORT
4) Division Led panel light, no flicker!
5) Self-development MOSO Driver, UL Listed, IP67 which meet the related rules. The current is 0.9A. The temperature rising is low, and the driver are added the thermal sili cone, which can prevent the driver effectively and lengthen the driver life.
6) Ewin adopts the back plate heat dissipation for led panel light, not hte frame heat dissipation. Heat dissipation is larger then others
7) Material of back plate is the Aluminum 1060, the rust occurred on the back plate.
8) Ewin put the code on each PCB, which can be tracked 3-5years. We can check that when the PCB was make and the supplier information. If there occurs the quality defect, we can find the reason at the first time and offer the complete qualtiy guarantee.
9) Use the led TV Technology for the DV positive and negative sloder. UV glue for the solidity and the insulation, which are safe and reliable
10) Ewin Use the light gude plate with the Mitsubishi laser, excellent optics design which make the light transmit more higher.
11) We use the coil portection for the DC outer wiring. The cables are more suitable, which make its dust-free
Tech Parameters:
Input Voltage:
| AC85-270V
|
Work Frequency:
| 50-60HZ
|
Power:
| 48W
|
Specifications:
| 300*1200*12mm
|
LED Type
| Sumsung 5630 Led
|
Color Rendering Index:
| >=80ra
|
Light Source Color:
| 2700-6500K
|
Lumimous Flux:
| 2600-2900lm |
Viewing Angle:
| >=120Degree
|
Material:
| Aluminium
|
Operating Lifespan:
| 50,000hours
|
Package:
| Samples Package |
| Size(mm) | Packing Material | Qty/Box | Box Dimension (mm) | G.W. |
| 200*200 | EPE+Box (-) | 1pc |
| 0.8kg |
| 240*240 | EPE+Box | 1pc |
| 0.9kg |
| 300*300 | EPE+Box | 1pc |
| 2.5kg |
| 300*600 | EPE+Box | 2pc | 685*85*685 | 6kgs |
| 600*600 | EPE+Box | 1pc | 685*85*685 | 6kgs |
| 300*1200 | EPE+Box | 1pc |
| 8kgs |
| 600*1200 | EPE+Box | 1pc |
| 13.2kgs |
| Order Package |
| 600*600 | EPE+Box | 4pc | 632*632*182 | 32kgs |
| 300*1200 | EPE+Box | 4pc | 1232*332*182 | 32kgs |
| 600*1200 | EPE+Box | 4pc | 1232*332*182 | 57kgs |
| Round Panel Package |
|
|
|
| Size(mm) | Packing Material | Qty/Box | Box Dimension (mm) | G.W. | Qty/Ctn | Ctn Dimension | G.W. |
| 180 | EPE+Box+Carton | 1pc | 275*275*45 | 0.56kg | 15pcs | 49.5*36*32cm | 12kgs |
| 240 | EPE+Box+Carton | 1pc | 350*335*45 | 0.95kg | 12pcs | 49.5*36*32cm | 12.4kgs |
| 300 | EPE+Box+Carton | 1pc | 350*335*45 | 1.2kgs | 10pcs | 49.5*36*32cm | 13.8kgs |
Shenzhen Ewin Lighting Technology Co., Ltd is a subsidiary corporation of Lechance Group. She is a a high-tech enterprise who specializes in developing, manufacturing and selling of LED Lighting, and lighting accessories. Our product includs LED downlight, LED Panel Light, LED neon flex, LED tube, LED bulb, LED Linear Light, LED spotlight, LED flexible strip, LED brick/LED Tile Light, LED downlight, LED Tri Proof Light, LED Tunnel Light, LED High Bay Light, LED floodlight, LED streetlight, LED Decorative light, explosion proof LED high bay light, explosion proof floodlihgt, Wireless DMX512 controller, LED power supply, USB DMX controller, etc.
We began to export in 1999. Up to now, we have grown up to a enterprise who employs over 1000 staff members include 20 R&D members. We own advanced production lines, strong R&D team and excellent production and quality control team. To meet the increasing market demands, we always adjust our product structure to design innovative products. We have accumulated considerable know-how in our field, supplemented by superior services...
We sincerely welcome customers at home and abroad to visit our factory for purchasing and OEM. Source for super quality products.
