Product Description

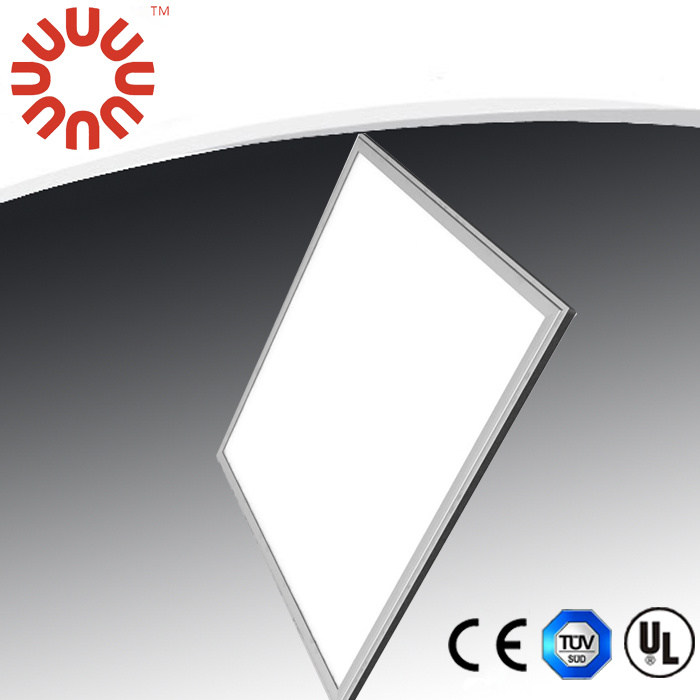

60 W LED panel light. Its ultra-slim 9mm design, high brightness, uniform light distribution, as well as high color rendering index (CRI> 85).
Features:
1. High efficacy: Over 83 LM / W
2. High CRI: Ra>85
3. Replacement: 600x600 mm CFL tube fixture
4. Long Lifespan: Over 35, 000 hours.
5. Easy to Install: Male-female driver connector
6. Ultra-thin Design: Only 9 mm
7. Luxary surface treatment: Baked white frame
8. Light Weight: Only 3.2 kg / pieces, save your international freight cost by 30%
9. DIY design: You can assemblize it by youself
10. ALL Dimmable solution: 0-10V, TRAIC, DALI, DC24V, CCT changeable, RGB DIMMABLE
| MODEL | PL-C |
| Optical | Light source | 300 pieces of SMD LED 3014 |
| Luminous flux | Cool white | 4800 LM |
| Natural white | 4750 LM |
| Warm white | 4700 LM |
| Color temperature | Cool white | 6000-6500 K |
| Natural white | 4500-5000 K |
| Warm white | 2700-3000 K |
| Color render index | Ra ≥80 |
| Beam angle | >120° |
| Optical decay rate | less than 1.8% in 3000 hours |
| Service life | ≥35000 Hrs |
| Electric | Input voltage | 90 ~265 Vac |
| Frequency | 50 ~60 Hz |
| Output voltage | 60-70 Vdc |
| Power consumption | 60 W |
| Power factor | ≥0.9 |
| Anti-elec shock rate | Class II |
| Starting time | ≤1.2 S (@ 110Vac) |
| Withstand voltage | 3000 Vac/1 min |
| Structure | Materials | Aluminum, PMMA LGP, diffuser |
| Temperature rising | <20 |
| Dimension | 595 x 595 x 9 MM |
| Net weight | 3.2 KG |
| Protection class | IP 44 |
| Others | Working temp/humidity | -30~+50, 10% ~80% R.H. |
| Storage temp/humidity | -40~70, 0% ~100% R.H. |
| Certification | CE RoHS CCC |
