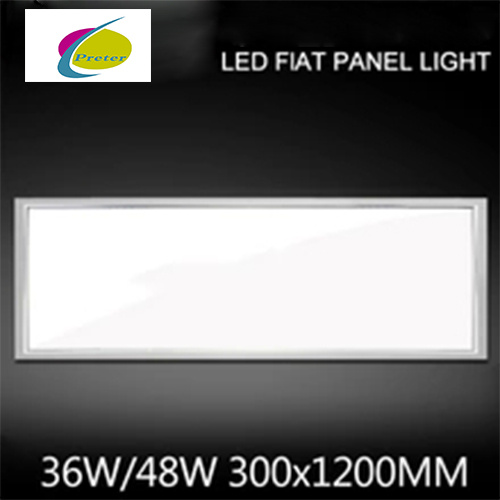

LED Panel Light. 300*1200*9mm.
48W. AC85-265V. 4300LMLM. 120degree. 450pcs 3014SMD
A professional LED panel light manufacturer and supplier, and an outstanding led panel light designer -- Mucheng led Lighting
Short Description of LED panel light:
1. AC85V-265V, 10W-72W
2. Round and square are available
3.3 years warranty
4. CE&RoHS
5.Surface mounting
Features of led panel light:
1. Led panel light Adopt Taiwan import Lumenmax SMD LED3014, single luminous flux 11LM
2 light guide plate procurement of imported materials, light rate more than 80%
3. Led panel light Pure aluminum frame, bright silver processing, good heat dissipation, more upscale appearance
4. Led panel light Uniform optical effects, without dark space, efficiency > 70LM/W
5. Led panel light Isolated constant current power supply, wide voltage input, output voltage: DC30-40V, more safer
6. Led panel light Unique frame design, embedded installation without accessories, more money
Application of led panel light
1. Commercial Lighting \Office Lighting \Warehouse Lighting \Supermarket Lighting;
2. IT, Call Centers, Shops and showrooms, Kitchen/pantry, hospitals, hotels, and other public places.
Way to install:
1. Hanging
2. Embedded
3. Ceiling
Note:
1. When installation, try to avoid the minefields, strong magnetic field and high-pressure region.
2. Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3. Installed in a well-ventilated place to ensure appropriate environmental temperature.
4. Using this product, please check the local voltage compliance product requirements.
5. To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6. In case of failures, do not maintenance in private.
Application:
Airport, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Item | size(mm) | Wattage | Lumem | Dimmable or non dimmable | Voltage | Quantity / SMD | Color |
| PL-PA3030-20W | 300*300*9.8 | 20W | 1600±100lm | non-dimmable | 85~265V | 154 3014SMD | 2800~7000k |
| PL-PA3030-20W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA3030-25W | 300*300*12 | 25W | 2000±100lm | non-dimmable | 85~265V | 308 3014SMD | 2800~7000k |
| PL-PA3030-25W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA3060-20W | 300*600*9.8 | 20W | 1600±100lm | non-dimmable | 85~265V | 216 3014SMD | 2800~7000k |
| PL-PA3060-20W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA3060-25W | 300*600*12 | 25W | 1600±100lm | non-dimmable | 85~265V | 216 3014SMD | 2800~7000k |
| PL-PA3060-25W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-38W | 600*600*9.8 | 38W | 2900±100lm | non-dimmable | 85~265V | 312 3014SMD | 2800~7000k |
| PL-PA6060-38W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-40W | 600*600*12 | 40W | 3100±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA6060-40W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-48W | 600*600*12 | 48W | 3800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA6060-48W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-60W | 600*600*11.5 | 60W | 4800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA6060-60W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-38W | 300*1200*9.8 | 38W | 2900±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA30120-38W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-40W | 300*1200*12 | 40W | 3100±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA30120-40W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-48W | 300*1200*12 | 48W | 3800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA30120-48W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-60W | 300*1200*11.5 | 60W | 4800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA30120-60W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA60120-60W | 600*1200*11.5 | 60W | 4800±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA60120-60W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
