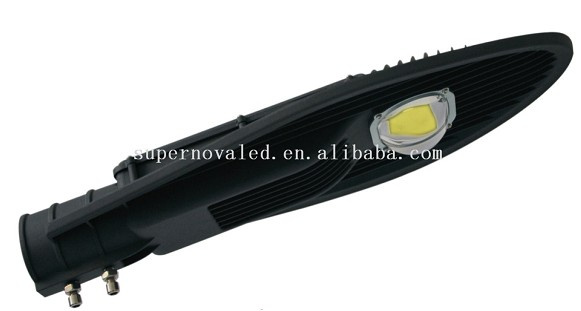

45mil Bridgelux 50W Outdoor LED Street Light

45mil bridgelux 50w outdoor led street light price


·High power led street light 100w ,it's a typical green lighting.
·Energy Saving: saving energy more than 75% than the tradtional lamp.
·Low Operating Temperature:Never fever or burn out the cover.
·Environment Friendly :Without harmful radiation and lead-free.
·Low Tension:Much more safe to fix up.
·Over 50,000Hours (depends on enviroment)
·IP65 Protection
·High Luminaire efficiency over 88%
·Superior color rendering index up to 80, near day light quality
·Wide color of temperature range available
·Power efficiency over 90%,Power factor up to 0.98,THD less than 10%
·Isolated low-voltage driver mode leading to high safety and reliability
·No light pollution,no IR,no UV
·Anti-vibration and shock-proof
·Green and environment-friendly:lead-free,no-mercury,no fraigile glass,no
environment-harmful materials
·Tremendous energy saving:more than 75% electricity saving over conventional
sodium light.





Product Description

Use high brightness COB LED as light source, low voltage constant current drive
Use high heat conduction aluminum alloy as material of lamp body, High heat conducting efficiency;Reticular
radiator , attractive appearance,anti-corrosion and dustproof.
With special twice integrated optical lens ,high transmittance, large beam angle, reasonable distribution,make the
road illuminance more uniform,improve the light efficiency and achieve the purpose of energy saving.
To meet the high heat dissipation requirements, it adopt the integrated design of the radiator and lamp, using the
diversion type heat radiation structure, through the flowing of the air and add the heat emission area to makes the
heat send out quickly, effectively controlled the Light decay , ensure the lifetspan and work reliably and efficiently.
Mainly use for roadway,street lighting.

1 Adopt Super Brightness Multi-Chip LED Lighting Source, encapsulation by ourselves, Long lifespan, Energy saving, Environment friendly, High efficiency, No strobe, No ghosting, No UV, IR.
2 SV-STSWD series LED Street Light integrate LED lighting source and the cover of the light, the advantages are no needing extra cover, the volume is small and the weight of the body is light. Which make the led light perfect.
3.The Lighting source of the led high bay is using super bright big size LED chip, It' s single led chip with top quality which lumen is up to 120lm/W, Using high efficiency Optical lens and sand blast oxidation light cover which can solve the problems such as light loss and color shading. It can assure the uniformity of flux and color.
4.Using high efficiency thermal conductivity silicon, it's assured the heat sink of the light, the temperature of the junction is not pass 65 ºC, which is effective controlled the light degradation, the lifespan for the led light is over 50000 hours.
5.The range for the input voltage is wide. Which make the led high bay are available for the global. Unique protection circuit and exact constant current system assure the abilities such as anti-interference and stability of the light.
6.Our LED Driver are approved CE CB EMC GS TUV UL ,can be available for every where.


SV-STCBR50W					SV-STCBR100W
Power: 50W		Input Voltage: AC90V-AC300V,50/60Hz			Power: 100W		Input Voltage: AC90V-AC300V,50/60Hz
Power Efficiency: ≥89%		Lumens Efficiency: 110-120LM/W			Power Efficiency: ≥89%		Lumens Efficiency: 110-120LM/W
Protection Rate: IP65		Chip: 45mil BridgeLux			Protection Rate: IP65		Chip: 45mil BridgeLux
LEDs: Integrated LED		Color Rendering Index: ≥75Ra			LEDs: Integrated LED		Color Rendering Index: ≥75Ra
Power Factor: ≥0.95		Work Environment: -40ºC~60ºC			Power Factor: ≥0.95		Work Environment: -40ºC~60ºC
Material: Aluminium		Warranty: 3years CE Rohs FCC			Material: Aluminium		Warranty: 3years CE Rohs FCC
Color: WW 3000-3200K, NW 4000-4500K, CW 6000-6500K					Color: WW 3000-3200K, NW 4000-4500K, CW 6000-6500K
Rated Luminous Flux: 5250LM					Rated Luminous Flux: 10800LM
Driver: CE Rohs FCC UL TUV Driver MeanWell 5years Warranty					Driver: CE Rohs FCC UL TUV Driver MeanWell 5years Warranty
Packing Size: 1pcs 540*260*125MM / 5.35KG/Carton					Packing Size: 1pcs 650*260*125MM/ 7.5KG/Carton
Optical Parameter					Optical Parameter
Installation Height 6M		52.2Lux			Installation Height 10M		33.5Lux
Installation Height 8M		33.9Lux			Installation Height 12M		24.6Lux
Installation Height 10M		21.3Lux			Installation Height 15M		15.8Lux


Packaging & Shipping
  1.   Surface Treatment;spray paint /anticathode  Color : Silver  IP grade IP65   Windproof;20 Grade  NW: 4.5 kg   Packing size;715*295*130MM Both inner boxes and cartons can be customized
2. the shipment of 100w LEDstreet light can be DHL,UPS,FEDEX,TNT,and sea transportation,can be customized.
Our Services
1. 3 years warranty,reply you within 12 hours
2. Strong R & D technical service team
3.professional sales team English spanish language service
4.Aiming at the consult of "high quality,zero defect",give you the best quality,best service.

Using directions for installation:

When open the package, please check whether the inside is including product, accessory, label, certificate quality. And please assure that the light is perfect without any damage.
The wires of LED Street Light is three-core, the standard size of the wire is 3*1mm² or 3*1.5mm² and the outer diameter isΦ7~12mm, brown wire is live line, blue wire is null line, yellow& green is ground line.
LED Street Light will work when the voltage up to rated voltage, so please be sure the voltage within the requested range, or it will damage the light which can't be repaired.
when the electrical continuity is connected, the lead wire should be in electric insulating.
The way of connect wire:
