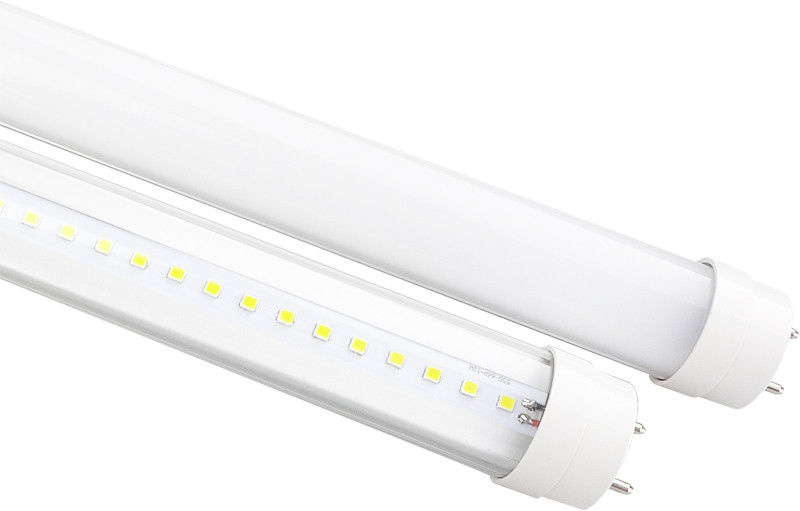

4500K 15W LED T8 Tube Lights Energy Saving For Subway Lighting
Features:
Replace directly, simple and convenient
Significant energy savings, with high efficiency of input-output
Unique and rotatable end cap
Description:
Professional encapsulated SMD2835 with high-quality LED chip makes the LED light source obtaining excellent protecton of optical attenuation and heat conduction ratio.
Utilizing high quality constant-current LED driver with great luminaire stability, lifespan & Optimal Performance Status.
Heat Conduction
Use of the good thermal grease combining PCB and aluminium radiator closely, keeps every LED obtaining optimal effects of heat dissipation.
Heat Dissipation
Light attenuation of LEDs under safe control with adequate heat sinking area.
Standard G13 Ends
Stationary and rotatable ends could be optional according to various applications.
Applications:
Home, School, Hospital, Mall, Hotel, Mart, Office, Workshop, Warehouse, Subway
Specifications:
Electrical Specifications:
Nominal Wattage: 15W
Nominal Voltage: AC 100-240V, 50/60Hz
LED Type, Quantity: SMD2835, 88pcs
Power Factor (PF): > 0.9
Driver Efficiency: > 85%
Optimal Operating Temperature: -40 ºC to +50 ºC
Lumen Output:
3000-4500K:
5000-6500K:
c - clear, f - frosted
Lumen tolerance +/- 5%
1350 lm - c, 1200 lm - f
1500 lm - c, 1350 lm – f
CRI: Ra >= 80
CCT: 3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K
Mechanical Specifications:
IP Rating: IP20
Lifetime: 50000 hours
Heat Radiator: Anodized Aluminum
Fixture Weight: 0.41 kg /0.904 lbs
Fixture Dimension: 1214 x26 x32 mm
47.80 x1.02 x1.26 inches
Lens: Clear /Frosted PC
Packing Information:
Packing Type: 20units /ctn.
Packing Dimension: 1230 x170 x145 mm/
48.43 x6.69 x5.71 inches
Packing Weight: 10.2 kg (22.5 lbs)
Competitive Advantage:
High Quality LED light source
Significant energy savings
Instant on/off
Mercury & lead free
Resistant to shock and Vibration
Superior light quality
No UV
Wide input: 100 - 240V AC
Temperature compensation technology for long life
Simple installation
Maintenance free
Superior Vision-Care
