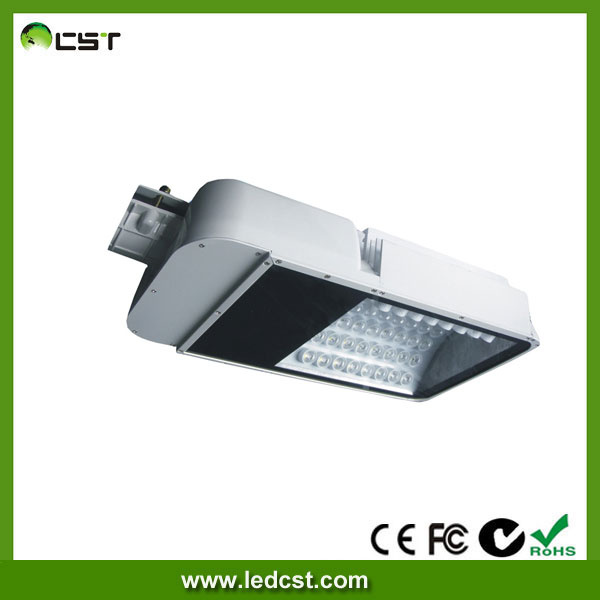

Street Lights LED
Specification:
LED street light consists of white-light LEDs with isolated AC/DC driver power supply researched and developed independently. With powerful control performance of the high-speed microprocessor, it can automaticatly adjust the output power as required at any time so as to truly save more than 60% electricity than traditional lamps. It can be widely applied on urban streets, residential areas, industrial areas, sidewalks, squares, parks, schools, villas, and gardens where alternating current, wind-solar hybrid street light system or solar street light are adopted.
Applications:
LED Street lighting
Outdoor use: City streets, pavements, squares, schools, parks, highways, gardens and public areas, etc...
|
Input Power: 40W |
Input Power: 40W |
Input Power: 40W |
|
Luminous Flux: > 3200 LM |
Luminous Flux: > 3000 LM |
Luminous Flux: > 2600 LM |
|
Voltage: 88~132V AC/170~265V AC |
Voltage Range: 88~132V AC/170~265V AC |
Voltage Range: 88~132V AC/170~265V AC |
|
Frequency: 47~63Hz |
Frequency: 47~63Hz |
Frequency: 47~63Hz |
|
Power Factor: > 0.95 |
Power Factor: > 0.95 |
Power Factor: > 0.95 |
|
Driver Efficiency: > 0.88 |
Driver Efficiency: > 0.88 |
Driver Efficiency: > 0.88 |
|
Driver Type: Internal Constant Current Driver |
Driver Type: Internal Constant Current Driver |
Driver Type: Internal Constant Current Driver |
|
CCT: 2700K~6500K(Optional) |
CCT: 2700K~6500K(Optional) |
CCT: 2700K~6500K(Optional) |
|
CRI: 70 |
CRI: 70 |
CRI: 70 |
|
LED(Quantity): CREE 1W(36pcs) |
LED(Quantity): BRIDGELUX 1W(36pcs) |
LED(Quantity): Taiwan Chip 90-100lm/W(36pcs) |
|
Application: -25~50º C, 10%~90% Humidity, Below Altitude of 4000m |
Application: -25~50º C, 10%~90% Humidity, Below Altitude of 4000m |
Application: -25~50º C, 10%~90% Humidity, Below Altitude of 4000m |
|
IP Rating: IP 65 |
IP Rating: IP 65 |
IP Rating: IP 65 |
|
Luminous Decay: Less Than 5% for 5000 Hours |
Luminous Decay: Less Than 5% for 5000 Hours |
Luminous Decay: Less Than 5% for 5000 Hours |
|
Designed Lifespan: > 50000 Hours |
Designed Lifespan: > 50000 Hours |
Designed Lifespan: > 30000 Hours |
|
Warranty: 3Years(Based on Proper Operation) |
Warranty: 2Years(Based on Proper Operation) |
Warranty: 1Year(Based on Proper Operation) |
|
Size: 470*245*132 mm |
Size: 470*245*132 mm |
Size: 470*245*132 mm |
|
Weight: 8 kg |
Weight: 8 kg |
Weight: 8 kg |
|
DIA of Pole: Φ 48~60 mm |
DIA of Pole: Φ 48~60 mm |
DIA of Pole: Φ 48~60 mm |
