40W LED 8m Pole Street Light for Solar Using
| Price: |
US $ 700-740/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
40W LED 8M pole Solar Street Light,
6-8Meter Height Pole With SONCAP CertificateModel: BRH-N611
Design based on 4.0KWH solar radiation;
Lighting hours: 11-12 Hrs/Day*3-4 days no sun;
Configurations:
1. Pole Height: 6-8M, Plastic coated on HDG pole, Rust Proof, resistant to wind: 150KM/H
2. Applicable light source: 40W LED, 4800LM, Lifespan: >80000Hrs.
3. PV Module: 100W*2PC, Crystalline, 90% of minimum warranted power output over 12 years,
80% over 20 years;
4. Gelled Battery: 100Ah*2PC, Fee Maintenance, Deep Cycle, Sealed Type, Deep Cycle.
5. Battery Box: Engineer Plastic, Hang on the pole.
6. Controller: 10A/24V Automatic light and time control system.
This model Solar Street Lighting System, Design based on 4.0kwh,
Getting more information for this 40W LED Solar Street Lighting System, mail or call us please.

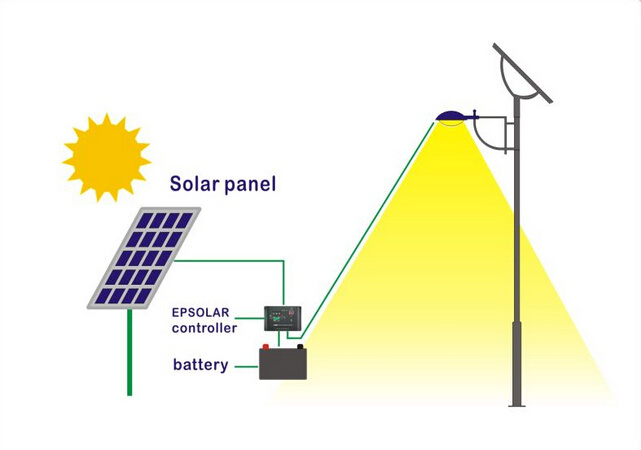

Working Principle:1. LED solar street light relies on solar energy, which is clean, endless and environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric
energy and store it in the battery. At night or rainy or cloudy condition, the battery shall supply
power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.
Product Feature1. LED solar street light is made of high quality aluminum material, with fine workmanship,
elegant outer appearance, built-in good performance heat sink.
2. LED solar street light uses American imported CREE LEDs, with high power constant
current drive supply, ensure high efficiency and energy saving, long time stability.
3. Superior tempered glass diffuser has a good light transmittance and invariant color.
4. Long life power driver can ensure above 50000 hours use-life and has short,open-circuit
and over-heat protection.
5. We recommend to choose white or warm white, which create better lighting effect.
6. This LED solar street light is suitable for all common roads. After-sales Service1. LED solar street lights should be used under normal condition. The warranty of the quality is
based on correct preservation, installation, usage and maintenance.
2. It's not included in the warranty scope if the products damage is due to improper installation,
product regulations violation.
3. For the quality problems during the warranty period, our company will choose the methods of
repair exchange (parts) or replace the products and etc.
4. some material cost, labor cost may be charged properly for extended service.CERTIFICATES:
|
40W LED 8M pole Solar Street Light, professional design |
|
Part Name and Lifespan |
Technical Specification |
Solar Panel:
Lifespan:20-25 years |
100W*2PC Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass. |
Gelled Battery
Lifespan:5-8 years |
100Ah/12V*2PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free |
Intelligent Solar Controller
Lifespan:5-10 years |
10A/24V,IP65. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs) |
Light source: High Power LED
Lifespan: More than 80000Hrs |
40WLED, White Color, Cree Chip, 4800LM/PC,6500K,IP65,
High Power, High Brightness. |
Lamp Housing:
Lifespan: More than 20 years |
Die-casted Aluminum, IP65
High transmittance & Density toughened glass, |
|
Battery Box: |
Engineer Steel,Hang on the Pole. |
GI Pole System:
Lifespan: More than 20 years
|
8M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H |
| Prod Model: |
BRH-N611 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Lamp: |
Solar Panel |
| Gel Battery: |
Solar Controller |
| Charging Time (',H): |
6 |
| Power: |
≥30W |
| Usage: |
Street |
| Lamp Body Material: |
Aluminum Alloy |
| Color Temperature: |
Cool White |
| Light Type: |
Solar |
| Technics: |
Electroplating |
| Illumination Time: |
8h |
| With Light Source: |
With Light Source |
| Voltage: |
12/24V |
| Certification: |
Soncap, FCC |
| Light Source: |
LED Lamp |
| IP Rating: |
IP66 |
| Cell Type: |
Lead-Acid |
