Home LED Light Products 40W High Energy-Saving LED Street Light

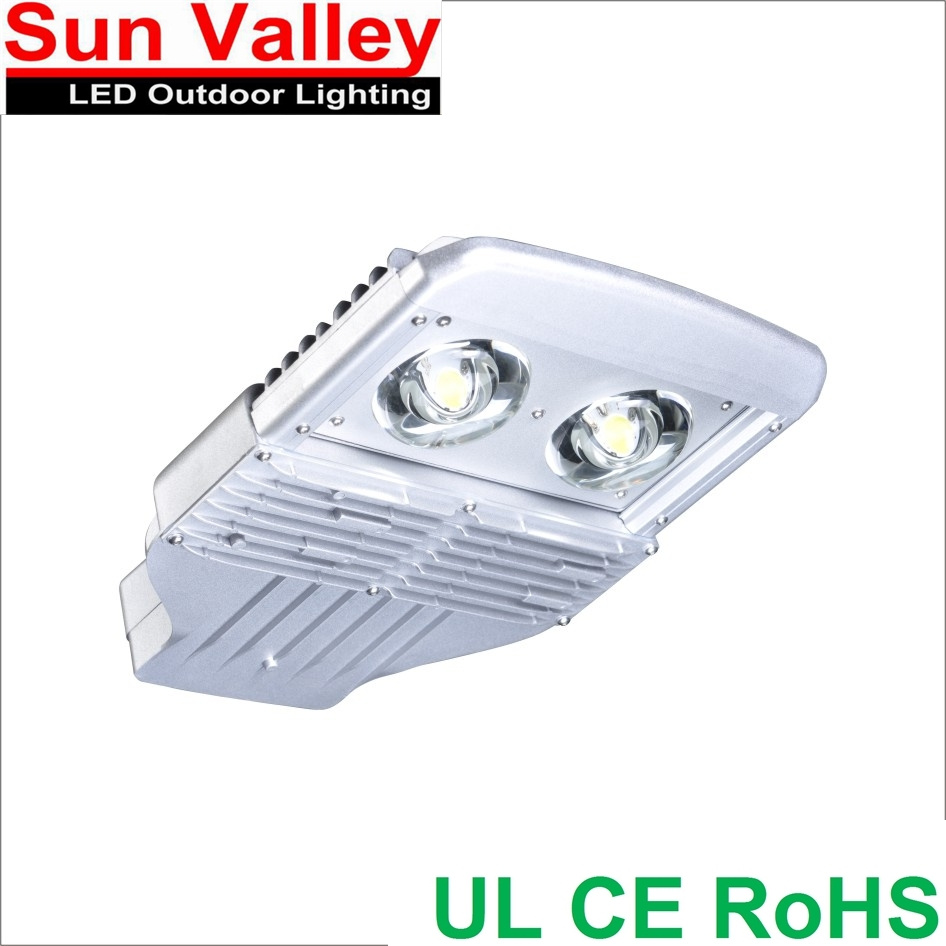

40W High Energy-Saving LED Street Light

40W High Energy-Saving LED Street Light
Price: US $ 1-200/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Model  SV-LLD40W

Electrical Characteristics                                                                        Photometrics & Chromaticity
No. of LED                 2pcs. Bridgelux® Vero 18                                    Total Rated Lamp Lumens     6120lm
LED Current                700mA                                                                CCT    5000K±300K
Input Voltage & Frequency   AC90-305V, 50-60Hz                                CRI             ≥70
AC Input Current            ≤1.30A @110V | ≤0.213A @220V                   Light Distribution Pattern       Type 5
System Power              40W±10%                                                          Field Angle         H149.7 V147.5
Power Factor               ≥0.9 (0.95 )                                                         Lumen Maintenance      >50,000hours
% THD                     ≤20

Environmental Characteristics                                                               Mechanical Characteristics
IP Rating                  IP66                                                                      Dimensions       462 x 346 x 107mm
Operating Temperature     -40°C to +55°C                                           Weight      7.1 kg
Operating Humidity         10-95%RH                                                    Installation Accessories   +5° Inclination Adjustment Kit
Storage Temperature       -40°C to +70°C                                           10KV independent Thunder-proof component
Storage Humidity           10-95%RH                             (Optional)

model40W60W80W100W
LED chipBridgelux® Vero 18Bridgelux® Vero 18Bridgelux® Vero 18Bridgelux® Vero 18
Lamp Lumens6120lm8520lm12240lm14500lm
Input Voltage & FrequencyAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60HzAC90-305V, 50-60Hz
CCT5000K±300K5000K±300K5000K±300K5000K±300K
System Power40W±10%60W±10%80W±10%100W±10%
Power Factor≥0.9 (0.95 )≥0.9 (0.95 )≥0.9 (0.95 )≥0.9 (0.95 )
Operating Temperature-40°C to +55°C-40°C to +55°C-40°C to +55°C-40°C to +55°C
Weight7.1 kg7.1 kg9.3 kg9.3 kg
Overall Dimensions462mm x 346mm x 107mm462mm x 346mm x 107mm585mm x 346mm x 107mm585mm x 346mm x 107mm


3base on IES LM-80-08 test report, From chip manufacturer and IES TM-21-11 calculation, Contact Sunvalley for more information.


According with North America, Europe, Asia, China and other city street light standards of professional LED lights,, suitable for different pole height, road width and different installation methods;

Several types of light lens, according with different street light needs,makes it suitable perfectly for any roadway lighting environment, energy saving, enhance the use value of light.

Application: Middle of the road distribution lamp Freeway, Expressway, Major Roadway, Square, roundabout central high pole lamp, outdoor parking


Features:
1. Constructed of die cast Aluminum alloy body, solid structure, corrosion resistance on the surface, suitable for different climate and environment, safety and durability;

2. Adopted original Bridgelux® LED array .low glare, lamps light efficiency more than 125lm/W ;

3. Built-in high efficiency driver, constant power output, not affected by voltage fluctuations, lights power efficiency high;

4. Natural transfer heat sink design, fast heat conduction, low temperature rise, enables maximum LED life span lumen maintenance more than 50,000 hours;

5. Glass optical lens, high transmittance, uniform light output, weather-resistant, Not easy to aging, low light decay;

6. Stainless steel fixation components, optional independent Thunder-proof component and +5° Inclination Adjustment Kit, Easy to install and practical;

7. IP66 protection rating against dust and water performance stability, extend street light life;

8. Safety and Environmental standards recognition, 5 years quality warranty;
Prod Model: SV-LLD40W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 462mm X 346mm X 107mm
Power Factor: ≥0.9
No. Of LED: 2PCS. Bridgelux Vero18
Lamp Lumens: 6120lm
Light Source: LED Light
Color Temperature(',CCT): Warm White
Lamp Body Material: Aluminum Alloy
Power Supply: AC
Application: Middle of The Road Distribution Lamp Freeway, Expr
IP Rating: IP66
Certification: UL
Lamp Power: 40W
Average Life: >50, 000hours
Voltage: AC90-305V, 50-60Hz
SunValley optoelectronic technology Co., Ltd is a manufacturer professionally engaged in R&D, designing, producing and managing lighting electrical appliances and lighting source brand of SUNVALLEY. The company engaged in producing and selling LED outdoor lighting, LED commercial lighting, solar street light and LED driver. Providing customers a full range of LED lighting equipments combined with LED light source products, and provide technical support and customer service.

We located in Huizhou which is a large manufacturing base of lighting electrical appliances in China, plant area of 12, 000 square meters. We have a batch of advanced professional staffs in management, manufacturing and lighting design.

The enterprise has passed ISO9000-2008 quality system certification, "Sun Valley" LED lighting holds several leading technology, four practical new patents, products have been certified by a number of safety regulations.

You are welcome to contact us for more information.

Our company supplys different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
