Description:

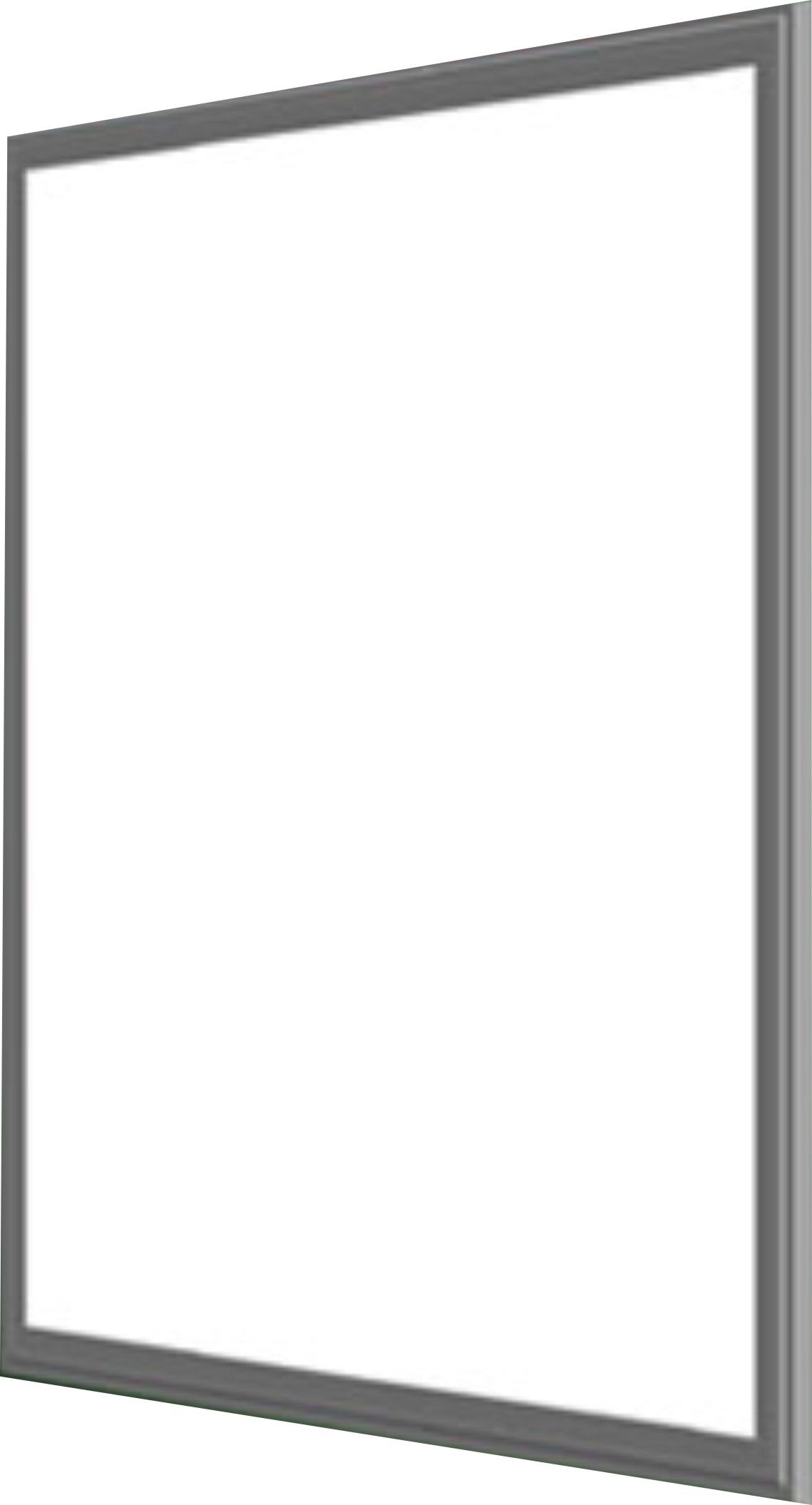

Slim LED Panel Lights are one of the most popular LED lighting fixtures which could replace traditional fluorescent grid lights. They are Using advanced oxidation treatment technology make the light frame looks more beautiful and stylish. The frame is made of 6063 anodic oxidation aluminum. With high thermal conductive aluminum frame connect closely with aluminum PCB plate, it could ensure the heat could dissipate out fast and temperature of light surface below 45 centi degree. No heat buildup inside.
Features:
Ultra slim and fashionable design with superior light guide panel,natural soft light, anti-glare.
Special circuit design, single broken LED won't affect other LEDs.
Constant current design, low heat, highly stable performance, with external driver, you could replace driver easily if there are any problems with driver.New high efficiency driver with heat protection system which ensures it could work under unstable voltage.
Energy saving, it could save 10 times energy more than that of incandescent fixtures, Save 2 times of CFL luminaries at same illumination.
The brightness or color can be dimmable with remote controller or 1~10V dimmer. (optional)
Available in various sizes. Different size could be customized for volume order.
CE & ROHS approved, with 2 years warranty.UL approved driver is optional.
Specifications:
Order Information:
Model No.
LED Type
Color
CCT
Voltage
Power
Lumen
Beam Angle
CRI
Max. Current
SL-MDF600WW200A4
Epistar
SMD2835
Warm white
2800~3200K
AC100-240V
40W
2400lm
120 degrees
>80
720mA
SL-MDF600NW200A4
Natural white
3800~4200K
2650lm
SL-MDF600W200A4
white
5800~6200K
2800lm
LED Panel Lights Features:
Package Information:
Absolute Maximum Rating:
4Pcs/Carton
Carton Size: 740*680*280mm
N.W: 16.8Kg G.W:20.5Kg
Aluminum Heat Sink Temperature: 53°C
Operating Temperature: -20~+40 °C
Storage Temperature: -20~+50 °C
Equilibrium Temperature: 58 °C
Applications:
Sinolumi LED Light panels are designed to replace the traditional grid lights and fluorescent tubes. It is widely used as general and decoration lighting, always equipped in offices, restaurants, conference rooms, factories, hotels, subway stations, commercial complexes, residential buildings, institution buildings, schools, colleges, hospitals, hallways and lobbies.
Installations:
