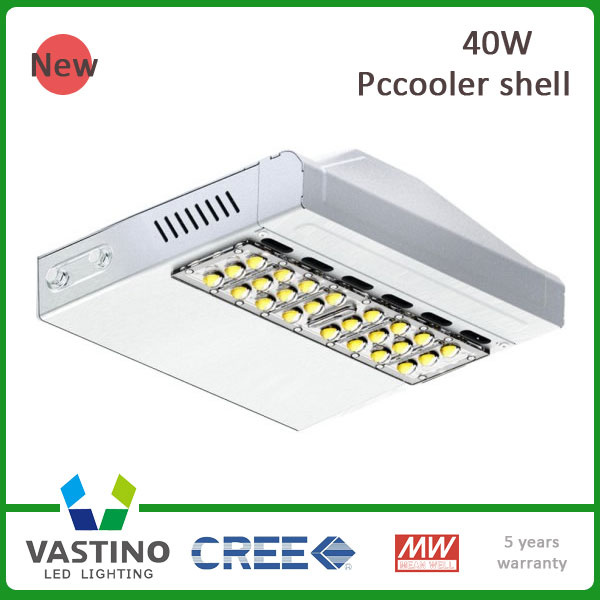

40W Aluminum 5 Years Warranty LED Street Light
Basic Data:
1.Product Name:LED street light
2. Item no:YSST005
3. Main materail: Aluminium+PC
4. Certificatie:CE ROHS
LED:
1.LED Brand:Osram/Cree/Base on requirement
2.LED type:high power
3.LED Working Volatge:AC100-240V
Electrical Data:
1.Rated Frequency:50/60Hz
2.Nominal Wattage:80-200W
3.Lamp Efficency:≥89%
4.Power factor: ≥ 0.95
Techiniacal Data:
1.Color termperature:WW/NW/PW
2. IP Grade:IP65
3.Beam Angle: 80*155°
4.Color Rendering Index: ≥ 80
Basic Information
Item | Led Qty | Product size (mm) | weight (Kg) | Color | Materal | IP Grade | Installation hole (mm) |
YSST-401C-005 | 24PCS*1W(1) | L292.2*W304*H128 | 3.0 | Grey | ADC12+PC | IP65 | D60 |
YSST-802C-005 | 48PCS*1W(2) | L384.2*W304*H128 | 3.6 |
YSST-1003C-005 | 72PCS*1W(3) | L476.2*W304*H128 | 4.7 |
YSST-1504C-005 | 96PCS*1W(4) | L568.2*W304*H128 | 5.4 |
YSST-2005C-005 | 120PCS*1W(5) | L660.2*W304*H128 | 6.1 |
Item | Power (W) | Input Voltage (V) | Efficiency (%) | Power factor |
YSST-401C-005 | 40W | AC100-240V 50-60Hz | >87 | >0.95 |
YSST-802C-005 | 80W |
YSST-1003C-005 | 100W |
YSST-1504C-005 | 150W |
YSST-2005C-005 | 200W |
Optical Information
Item | CCT (K) | Lumen (lm/W) | illumination (6/8/10/12) | Beam angle | CRI |
YSST-401C-005 | 2800-3200K 3800-4200K 6000-6500K | 85±10% | 20/11/7/5 Lux | 80*155° | >80 |
YSST-802C-005 | 87±10% | 35/19/12/8 Lux |
YSST-1003C-005 | 90±10% | 51/29/19/13 Lux |
YSST-1504C-005 | 88±10% | 68/38/25/17 Lux |
YSST-2005C-005 | 88±10% | 94/53/34/24 Lux |
Packing Info.
Item | Packing Mateial | L*W*H(mm) | Carton Qty (PCS) | Weight (KG) |
YSST-401C-005 | K=K | 350*395*195 | 1 | 4.16±5% |
YSST-802C-005 | 435*395*195 | 4.83±5% |
YSST-1003C-005 | 525*395*195 | 5.97±5% |
YSST-1504C-005 | 620*395*195 | 6.46±5% |
YSST-2005C-005 | 710*395*195 | 7.52±5% |
Application:
1.Highway,bridge,park
2. outdoor street
3. Hig lumens Excellent energy saving
