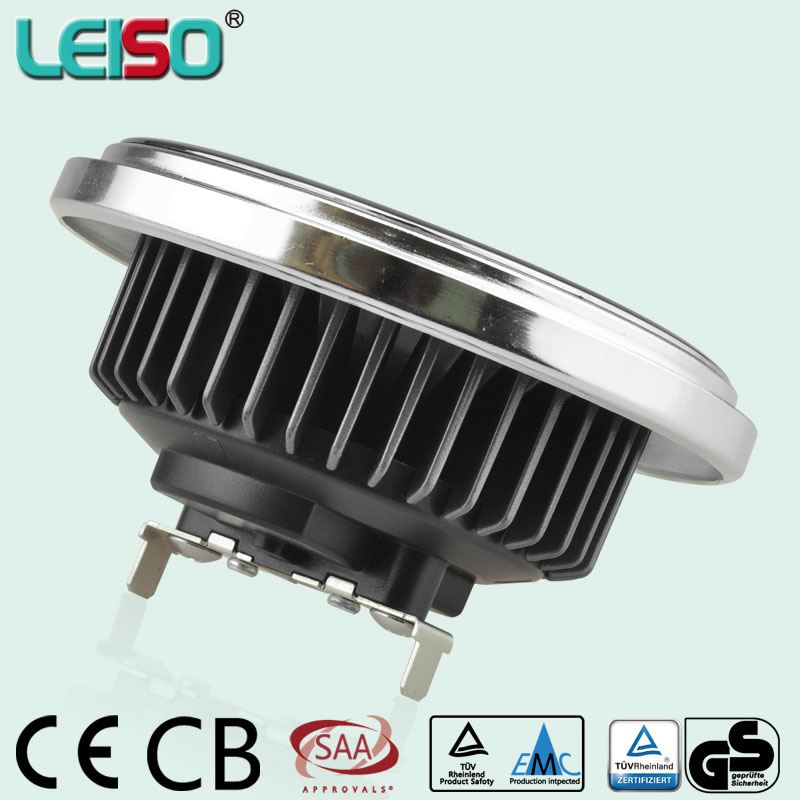

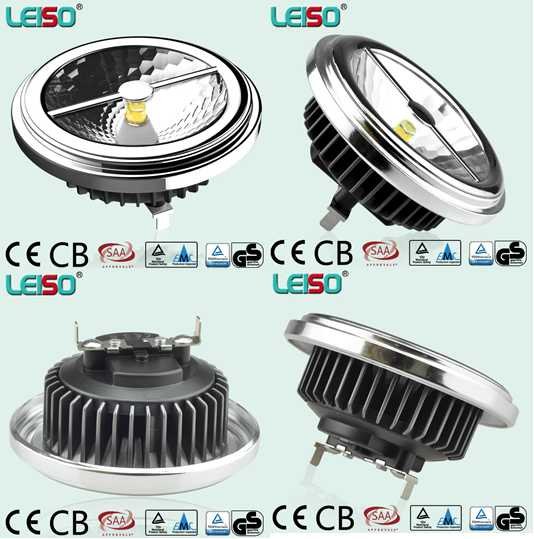

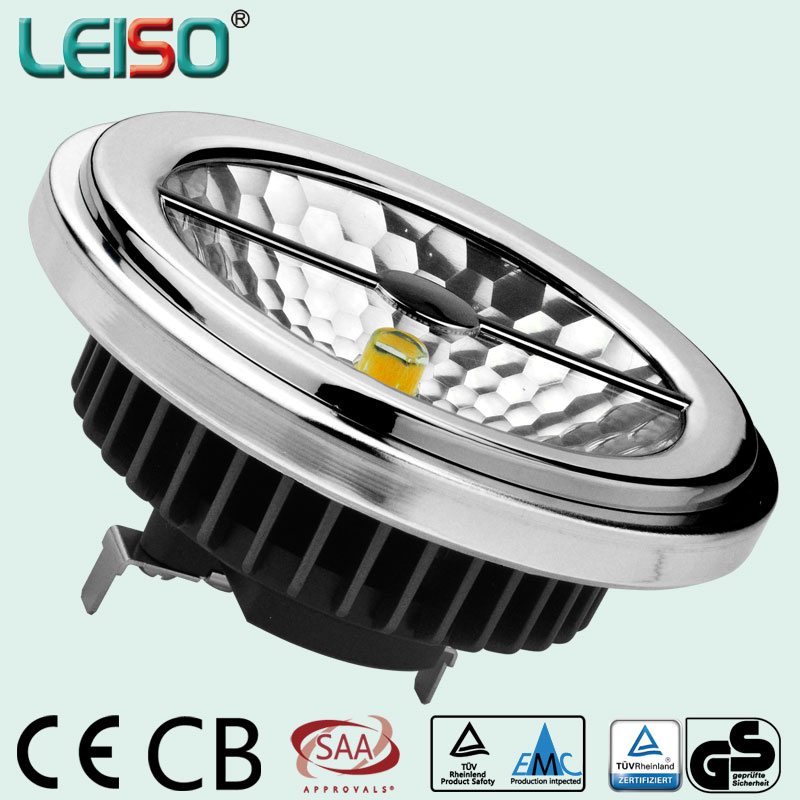

Reflector Cup 80ra AR111Advantges:
1. Adopt patented SCOB light source (stereoscopic chip on board).
2. Unique design makes it different from existing LED Bulbs of public mould.
3. Optically designed reflector keeps the same appearance and light distribution with traditional halogen lamp, which is easily accepted by users.
4. Long lifetime 45000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5. No IR- and UV radiation.
6. Directly replace 75W halogen lamp, saving at least 80% energy.
7.

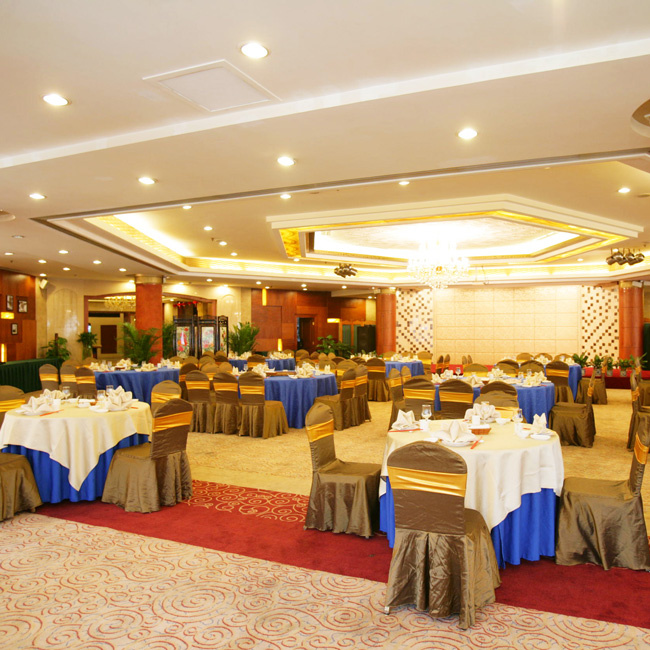

TUV GS, CE, CB, SAA, EMC, ERP and RoHS obtained8. Commercial lighting, Professional Customized Expert.
9:
CCT: 1800K-7000KFeature:
Power: 15W
LED: SCOB -Cee Chip, Packaged By Leiso
Driver: Rubycon capacitor Fm Japan
CCT: 1800L/2300K/2500K/2700K/4000K/5500K/7000KLumen: 840LM -1000Lm
CRI: 80Ra/90Ra/90Ra/95Ra/98Ra
Beam angle: 24° /40°
SIze: Φ 111*H55.5mm
We can customized CCT and CRI. CCT available from 1800K-7000K, CRI available fm 80Ra-98Ra
CCT Tolerance can be controlled within 2.5%, for example, for 2700K, we can controlled it withi 2700K+70K.Same color bin( code) for different lot (same Item) Quait y can be controlled
Technical Parameters Sheet of S618 series LED AR111 SCOB 15W
Item No. | Specification | Power | Lumens(CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
Item size | packing |
LS-S618-G53-BWW/BW | * SCOB AR111 * Reflector design * CREE Chip * Beam angle : 24°/40° * G53 base | 15W | CRI >80, 840 lm (2700K) CRI >80, 860 lm (3000K) CRI >80, 960 lm (4000K) CRI >80, 1000 lm (5500K) | Φ111*H55.5mm | 12V DC/AC | No | 111x55.5mm | 24pcs/carton 524x386x220mm 11.6kg |
LS-S618-G53-A-BWW/BW | CRI >90, 780 lm (2700K) CRI >90, 800 lm (3000K) CRI >90, 820 lm (4000K) |
Item No. | Specification | Power | Lumens(CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
Item size | packing |
LS-S618-G53-ED-BWW/BW | * SCOB AR111 * reflector design * CREE Chip * Beam angle : 24°/40° * G53 base * With External Driver | 15W | CRI >80, 840 lm (2700K) CRI >80, 860 lm (3000K) CRI >80, 960 lm (4000K) CRI >80, 1000 lm (5500K) | Φ111*H55.5mm | 100~240V AC | NO | 111x55.5mm | 24pcs/carton 524x386x280mm 14kg |
LS-S618-G53-ED-BWWD/BWD | 100-120V AC 220-240V AC | Yes |
LS-S618-G53-ED-BWW/BW | * SCOB AR111 * reflector design * CREE Chip * Beam angle : 24°/40° * G53 base * With External Driver | 15W | CRI >90, 780 lm (2700K) CRI >90, 800 lm (3000K) CRI >90, 820 lm (4000K) | Φ111*H55.5mm | 100V~240V AC | NO |
LS-S618-G53-ED-BWWD/BWD | 100-120V AC 220-240V AC | Yes |
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.
Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.
The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.
"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
