Home LED Light Products 400W/80W LED Street Light

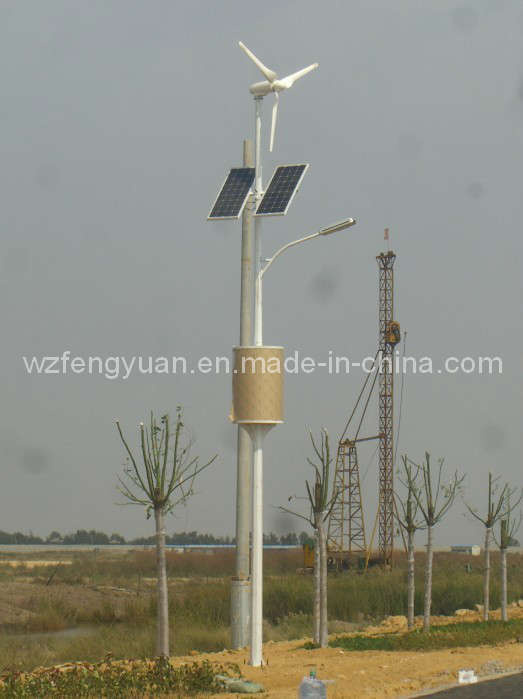

400W/80W LED Street Light

400W/80W LED Street Light
Price: Negotiable
Trade Terms: FOB
Min Order: 5/Set
Pay Type: L/C,T/T
For the wind generator
1. The rated power: 400W, max. Power: 500-600W
2. Start-up wind speed: 3m/s, in fact 2.7m/s the wind generator will drive
3. Rated wind speed: 12m/s
4. Material of the blade: Strengthen nylon
5. Rated speed: 500r/m
6. Output voltage: 14-28V
7. Rotor diameter: 1.6m

For lamp-post altitude: 7m
1. Wind generator: 400W
2. Wind/solar hybrid controller:
3. Solar penal: (30W)
4. LED lamp: 30W ( 2 pieces)
5. Lamp-post:
6. Storage battery: 100AH 2 pieces

For lamp-post altitude; 9m
1. Wind generator: 400W
2. Wind/solar hybrid controller:
3. Solar penal: (50W)
4. LED lamp: 40W (2 pieces)
5. Lamp-post:
6. Storage battery: 100AH 2 pieces

For lamp-post altitude: 12m
1. Wind generator: 400W
2. Wind/solar hybrid controller:
3. Solar penal: (80W)
4. LED lamp: 60W (2 pieces)
5. Lamp-post:
6. Storage battery: 200AH 2 pieces
Technical parameter table:
Blade diameter (m) 2.0
Number of blades 3
Start up wind speed (m/s) 1.5
Cut in wind speed (m/s) 2.5
Rated wind speed (m/s) 12
Output voltage (V) 24-30
Rated output power (W) 400
Machine body aluminium diecast alloy
Wind generator weight (kg) Strengthened nylon 18kg/carbon fibre16kg
Over speed protect Electronic load torque control

Storage battery 2× 12V
Monthly capacity 40KWH (Wind speed in 6m/s)

FY-400W Wind turbine output power
Item Wind speed  (m/s ) Voltage  (VDC) Current  (A) Power
(  W )
1 2.60 24.40 0.52 12.69
2 3.30 24.60 0.87 21.40
3 3.40 24.70 1.39 34.33
4 4.60 25.60 2.80 71.68
5 5.80 26.10 4.00 104.4
6 6.60 26.30 5.20 136.76
7 7.00 27.10 5.90 159.89
8 7.30 27.10 6.30 170.73
9 8.10 27.40 7.00 191.80
10 9.00 28.40 8.70 247.08
11 10.00 28.80 9.00 259.2
12 11.00 28.90 11.00 317.90
13 11.40 29.20 11.40 332.88

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source: LED Light
Certification: CE
IP Rating: IP65
Power Supply: DC
Application: Garden
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.

After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.

Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.

Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
