data of 4.5W led street light/plug light/spot light/garden light
Voltage(V): AC100-240V 50/60Hz
Total Power: 4.5W
LED: SMD3014
Color Rendering ≥ 75
Size(mm): 34.5*34.5*102mm
Color Temperature: 2700~6500K
Luminous Flux: 450Lm± 8%
Design Lifespan: ≥ 40000hrs
Material: Aluminum alloy+ PC
Inner Box: 36X36X160mm
Carton: 380X335X195mm(100PCS/CTN)
Replacement for energy saving lamp(PL): 10W
Advantage:
1. LED Bulb is assembled of imported LEDs, high-quality optical lens, aluminum plating enclosure and etc. It is with sharp lines, concise structure, elegant and chic style.
2. High power and high brightness light source, with high quality chemical lens to ensure a high rate of luminance.
3. After heat dissipation, Lamp cup can lead work caloriesefficiently out from high power LED to improve light efficiency, reduce brightness declines and ensure long lifespan.
4. Small size, easy transportation and installation.
5. Rigorous comprehensive multilevel testing enable customers to buy and use with reassurance.
6. More durable, energy saving and environment-friendly.
7. It is widely used in shopping malls, restaurants, meeting rooms, exhibition halls and other places.
|
Item no. |
Volts |
Size |
LED Quantity |
Power |
Color |
Color Temp. |
Lumens |
Lifespan
(hrs) |
Carton Size(mm) |
QTY/Carton |
|
CPS-DP-G24/E27-01 |
AC100-240V |
34×34×102mm |
40pcs
SMD3014 |
4.5w |
Warm white |
3000±150k |
400lm ± 8% |
40,000 |
215×215×125 |
100pcs |
|
Day light |
6500±450k |
|
CPS-DP-G24/E27-02 |
AC100-240V |
34×34×126mm |
60pcs
SMD3014 |
6.5w |
Warm white |
3000±150k |
600lm ± 8% |
40,000 |
215×215×150 |
100pcs |
|
Day light |
6500±450k |
|
CPS-DP-G24/E27-03 |
AC100-240V |
34×34×158mm |
80pcs
SMD3014 |
8.5w |
Warm white |
3000±150k |
800lm ± 8% |
40,000 |
215×215×180 |
100pcs |
|
Day light |
6500±450k |
|
CPS-DP-G24/E27-04 |
AC100-240V |
34×34×174mm |
100pcs
SMD3014 |
10w |
Warm white |
3000±150k |
1000lm ± 8% |
40,000 |
215×215×205 |
100pcs |
|
Day light |
6500±450k |
CREP, a high-tech enterprise & vice-chairman in Shenzhen LED industry association, which is specialized in R & D, production and marketing of LED lighting. We keep working to make breakthrough on LED lighting and till now, achieved more than ten new structure patents and one China invention patent. The main product in application lighting includes LED commercial lighting, LED industrial lighting, LED decorative lighting and LED outdoor lighting.
Our company passed and strictly enforces the requirements of ISO9001 Quality management system to promote all products through CE, RoHS and FCC and other international safety certification. Some products have passed UL, DLC, TUV, SAA, ETL and PSE certification. We have consistently adhered to the operating principle of "market-orientation, quality-assurance, efficiency-improvement, innovation-motivation, resource-integration, service-first and competitive edge-enhancement", continue to improve corporate operations and product innovation to serve customers. We provide solutions for China domestic market, as well as for overseas countries like Europe, America, Japan, Southeast Asia and so on.

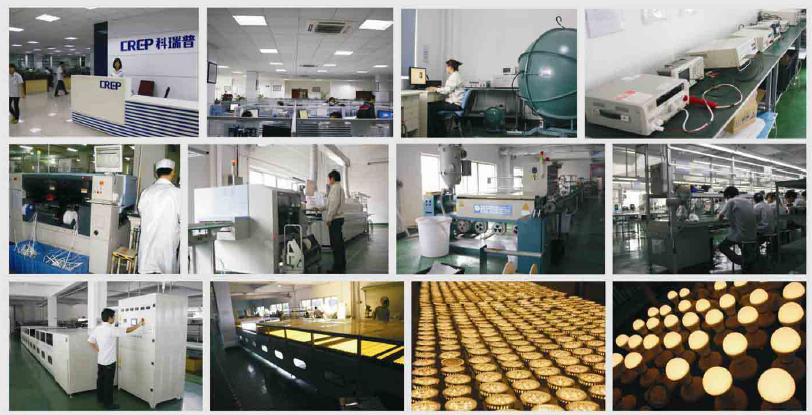

We welcome talents with open mind, fully exert their subjective initiative, and pursue continuous innovation and perfection. Gradually, we set up a highly qualitied team with more than 30 members who are junir and senior R&D professional in LED driver, indutial design, optial design, esthetics and industrial design. Meanwhile, introducing the advanced technology, components, production and testing equipment from Jupan, Germany, the United States and other countries to promote the company's productry-leading level.
CREP will always persist "Sincere Cooperation, Continuous Innovation and Future-challenging" to enhance competitive edge, to provide high quality products and good services for all our customers, and to stick to social returns and social responsibility.
