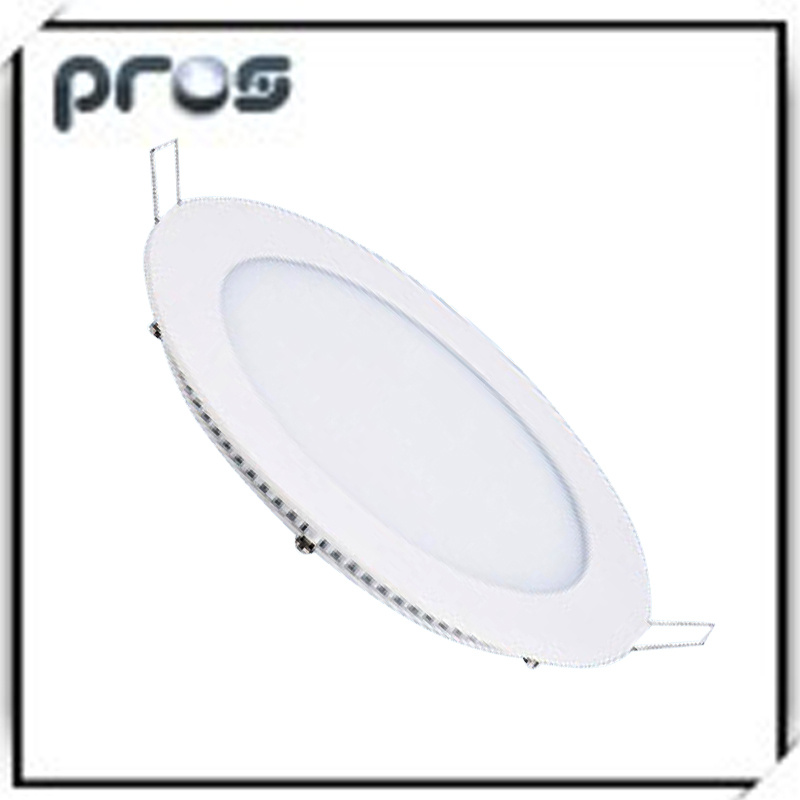

LED panel lights / Led ceiling lights / led lights panel
Main Features
1. Energy saving: Low energy consumption design, energy saving around 80%.
2. Quick & Simple installation, it is an excellent replacement of conventional lamp
3. Eco-friendly: Light source does not contain the tungsten, mercury and other harmful metals.
4. Constant current power supply, glass parts not easily broken, ensure the safety of the user. No IR & UV light radiation
5. Ultra-thin: Only a quarter of the thickness of traditional lamps
6. Beautiful: Contracted, fashionable, elegant
7. Certificates: CE certificates & RoHS compliance
Typical Applications for panel
1. Retail lighting
2. Shop window lighting
3. Ceiling lighting
4. Office lighting
5. Commercial lighting used in Bank, restaurant, hotel etc.
Notice for Installation:
1. Switch off the power before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent electrician
5. Using environment: -20degree to 45degree
Item No. | LED chip | Power | Lumen | Size A | Size B | CRI | Beam Angle | Color Temperature | Input Voltage |
PL-P-R3W-M | 15pcs 2835SMD | 3W | 285lm | 90mm | 70mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R3W-W | 15pcs 2835SMD | 3W | 285lm | 90mm | 70mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R4W-M | 20pcs 2835SMD | 4W | 380lm | 110mm | 90mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R4W-W | 20pcs 2835SMD | 4W | 380lm | 110mm | 90mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R6W-M | 30pcs 2835SMD | 6W | 570lm | 120mm | 100mm | >80 | 120degree | 2800-7000K |
|
PL-P-R6W-W | 30pcs 2835SMD | 6W | 570lm | 120mm | 100mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R9W-M | 45pcs 2835SMD | 9W | 855lm | 150mm | 130mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R9W-W | 45pcs 2835SMD | 9W | 855lm | 150mm | 130mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R12W-M | 60pcs 2835SMD | 12W | 1140lm | 170mm | 150mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R12W-W | 60pcs 2835SMD | 12W | 1140lm | 170mm | 150mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R15W-M | 75pcs 2835SMD | 15W | 1425lm | 195mm | 175mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R15W-W | 75pcs 2835SMD | 15W | 1425lm | 195mm | 175mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R18W-M | 90pcs 2835SMD | 18W | 1700lm | 225mm | 200mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R18W-W | 90pcs 2835SMD | 18W | 1700lm | 225mm | 200mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R20W-M | 100pcs 2835SMD | 20W | 1890lm | 300mm | 285mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R20W-W | 100pcs 2835SMD | 20W | 1890lm | 300mm | 285mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R25W-M | 125pcs 2835SMD | 25W | 2250lm | 300mm | 285mm | >80 | 120degree | 2800-7000K | 100-240VAC |
PL-P-R25W-W | 125pcs 2835SMD | 25W | 2250lm | 300mm | 285mm | >80 | 120degree | 2800-7000K | 100-240VAC |
