Home LED Light Products 3W Round Shape LED Panel Lights

3W Round Shape LED Panel Lights

3W Round Shape LED Panel Lights
Price: US $ 1.2/Piece
Trade Terms: FOB,CIF,DDP
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
LED PANEL LIGHT

Features:

1) We use high quality SMD LED as light source, which is high brightness, long life and less heat
2) Self-developd constant-current power for power supply circuit greatly improve the stability of our products.                                                                                                                                                                              3) Extreme Efficiency: Over 75% more efficient than incandescent lighting
4) Good heat dissipation by unique heat-sink design
5) Flexible Voltage: Use led ceiling lamp in AC80-265V environment
6) Reliable protection design, free from over-current, over-voltage, short-circuit, and overload risks
7) No Mercury Inside, No UV, No IR, good for your health
8) Flicker-Free Lighting: Eliminate eye strain and headaches
9) Customer's design are welcomed.

Product parameters:
Model nameColor temperaturePower(W)Luminous flux(LM)Input VoltageOutput VoltageDimension (mm)LED (pcs)
DR3W-B85MMWarm white 2700-3500K
White 6000-6500K

3W180-200
AC85-265V

DC30-40V
Φ85
DR4W-B110MM
Warm white 2700-3500K
White 6000-6500K
4W300-320AC85-265V


DC30-40V
Φ110   20
 DR6W-B120MMWarm white 2700-3500K
White 6000-6500K

     6W      390-400AC85-265V

DC30-40V


Φ120
   30
 DR9W-B150MMWarm white 2700-3500K
White 6000-6500K

    9W     630-660AC85-265V

DC30-40V


Φ150
   45
 DR12W-B170MMWarm white 2700-3500K
White 6000-6500K

   12W     850-900AC85-265V

DC30-40V


Φ170
   60
 DR15W-B200MMWarm white 2700-3500K
White 6000-6500K

   15W    1100-1200AC85-265V

DC30-40V


Φ200
   75
 DR18W-B220MMWarm white 2700-3500K
White 6000-6500K

   18W  1500-1600AC85-265V

DC30-40V


Φ220
   90
DR8W/10W/15W-F300Warm white 2700-3500K
White 6000-6500K
8W/10W/15W600-1200AC85-265VDC30-40V300*300*12.5
DR18W/26W-F3060Warm white 2700-3500K
White 6000-6500K
18W/26W1500-1800AC85-265VDC30-40V300*600*12.5
DR30W-F6060Warm white 2700-3500K
White 6000-6500K
30W1800-2000AC85-265VDC30-40V600*600*12.5
DR36W-F6060Warm white 2700-3500K
White 6000-6500K
36W2000-2200AC85-265VDC30-40V600*600*12.5
DR40W-F6060Warm white 2700-3500K
White 6000-6500K
40W2200-2500AC85-265VDC30-40V600*600*12.5
DR48W-F6060Warm white 2700-3500K
White 6000-6500K
48W3000-3300AC85-265VDC30-40V600*600*12.5
DR60W-F6060Warm white 2700-3500K
White 6000-6500K
60W3800-4200AC85-265VDC30-40V600*600*12.5
DR48W-F6262Warm white 2700-3500K
White 6000-6500K
48W3000-3300AC85-265VDC30-40V620*620*12.5
DR40W-F30120Warm white 2700-3500K
White 6000-6500K
40W2000-2300AC85-265VDC30-40V300*1200*12.5
DR55W-F30120Warm white 2700-3500K
White 6000-6500K
55W3200-3400AC85-265VDC30-40V300*1200*12.5
DR65W-F30120Warm white 2700-3500K
White 6000-6500K
65W3900-4300AC85-265VDC30-40V300*1200*12.5
DR55W-F60120Warm white 2700-3500K
White 6000-6500K
55W3200-3400AC85-265VDC30-40V600*1200*12.5
DR75W-F60120Warm white 2700-3500K
White 6000-6500K
75W4000-4500AC85-265VDC30-40V600*1200*12.5

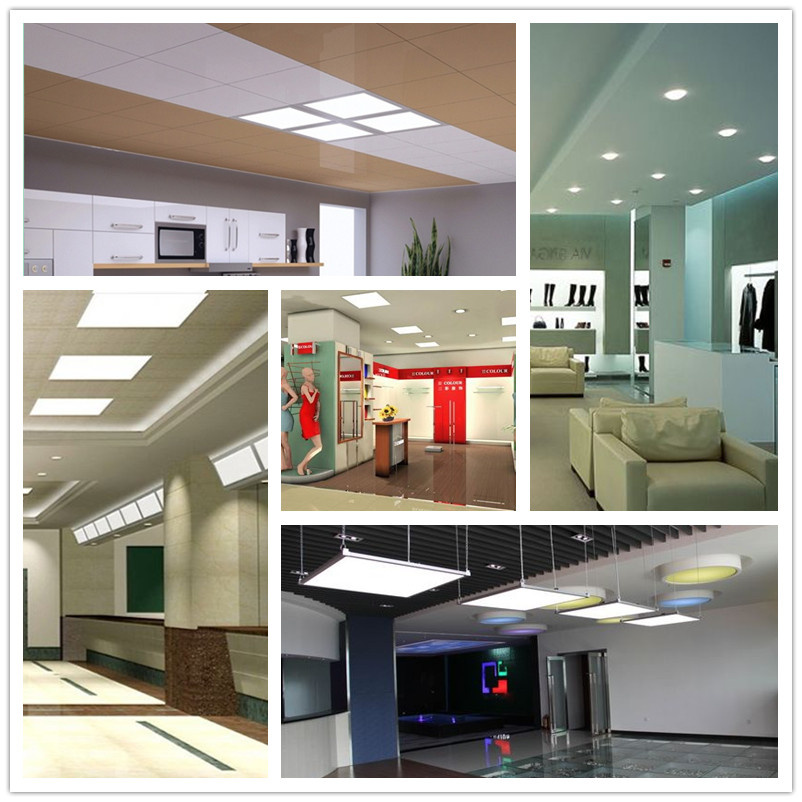

Area of application:
1.Hotels
2.Conference / Meeting rooms
3.Factories & Offices
4.Commercial Purposes.
5.Residential / Institution Buildings
6.Schools, Colleges & Universities
7.Hospitals

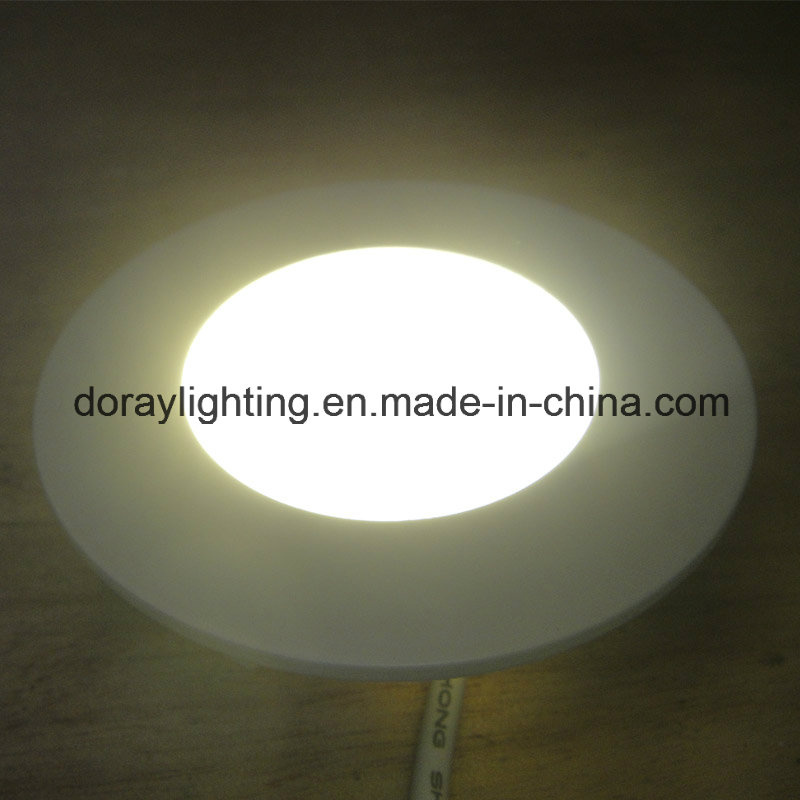

  Product photos:


Prod Model: DR3W-B90MM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
SMD Size: 2835
SMD Qty: 15PCS
Light Power: 3W
Lumen/W: 60-70lm/W
Light Size: 90mm Diameter
Light Source: LED
Housing Material: Acrylic
Emitting Color: White
Dimmable: Without Dimmable
Appearance: Round
Type: Embedded
Certification: VDE
Voltage: 85V-265V
Base Material: Aliuminum
Beam Angle: 160°
Doray Lighting Co., Ltd. is located in Zhongshan City, Guangdong, China, specialized in the LED indoor and outdoor lighting, is a research and development, production and sales of high quality LED lighting company.

Doray Lighting LED products mainly include: LED high power series and LED Christmas series.

The company has been in high-quality R & D team, advanced production equipment, complete management system, providing customers with quality products and perfect service. Our products not only the quality and the models but also the price, products are highly competitive and market development Potential in the market competition, LED application products have broad prospects for development and enormous potential. In this new and rapidly developing field, Doray who pay attention to credit management, focusing on win-win, the customer first. We will continue to learn, innovation, practical action to create a leading international, high efficiency, energy saving, environmentally friendly lighting and perfect service to lead the market and serve our customers, welcome to merchants throughout the world, to discuss cooperation.

"Good quality, Doray made" what we are constant pursuit goal.
