LED Moving Head Stage Light
Specifications
Model No.
BL-YT-01 LED 18pcs*3w RGB wash moving head
Voltage
AC90-240V,50-60Hz
Light Source
LED (6R+6G+6B)
Power Consumption
80w
Operation Mode
DMX512,Auto,Sound Control
DMX Channels
7-12CH 512 signal interface
Level of 540°,8 or 16bit resolution
270° vertical,8 or 16bit resolution
Line with the standard GB7000 15*2000
Dimming
0-100% dimming RGB color mixing system
Strobe speed
0-4 times/sec,adjustable
lamp lifespan
50000-100000hours
Display
LCD digital display with 4 button
Inner packing size
270*225*260mm
Outer packing size
480*285*555mm(4units)
N.W
14.8KG
G.W
16KG(3.7kg/pcs)
Grade level
IP20
Application
Theater,Stage,Disco,Bars,KTV,Party

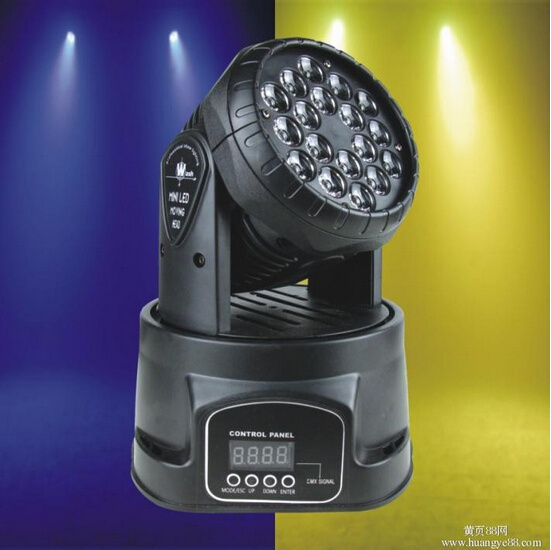

Product Picture
DMX function
Channel
Value
Function
CH1: control X motor(PAN)
0-255
0 stop,1-255 adjusting X motor rotation
CH2: control X bit(PAN)
0-255
0 stop,1-255 adjusting X motor bit
CH3: control Y motor(TILT)
0-255
0 stop,1-255 adjusting Y motor rotation
CH4: control Y bit(TILT)
0-255
0 stop,1-255 adjusting Y motor bit
CH5:control main dimming
0-255
0 off. 1-255 main dimming from dark to bright
CH6: control red dimming(R)
0-255
0 off. 1-255 red dimming from dark to bright
CH7: control green dimming(G)
0-255
0 off. 1-255green dimming from dark to bright
CH8: control blue dimming(B)
0-255
0 off. 1-255blue dimming from dark to bright
CH9: control RGB color mixture
0-255
0-9 off. 10-255 32 colors adjusting
CH10: control strobe
0-255
0-9 no strobe.10-255 strobe adjusting from slowly to quickly
CH11: control the voice of controller
0-255
0-127 voice of controller OFF,128-255 voice of controller ON;oller OFF,128-255 voice of controller ON
Actual effect
Trade Terms
Packaging & Shipping
Price term
EXW price or FOB ,according to your requirement
Certificate
CE,ROHS
Shipping method
Small order By DHL,UPS,TNT,Fedex,bulk order by sea or air.
Payment terms
Western union,Paypal.T/T
Sample time
3-7 working days after payment
Production time
7-20working day depend on the quantity
Packing
4pcs/Carton
Warranty
One year
Aftersales service
Offer technical support for life time
