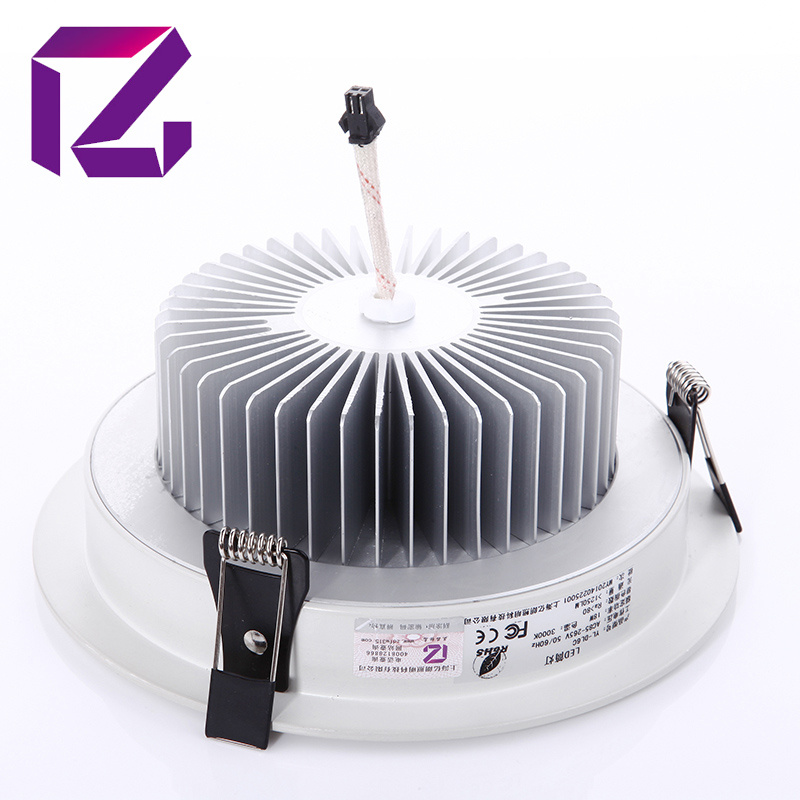

3W 3000K SMD LED Light / Ceiling Lamp / Down Light
Features Of LED Ceiling Lamp :
* Imported SMD chip
* High luminous efficiency
* High heat radiation performance
* Anodized surface with anticorrosion, no color-fading.
* Straight fin line designwith enlarged cross-ventilationeffect, doubled the heat radiation effect.
* Long life electric capacity
* Wide voltage design
Specification Of LED Ceiling Lamp :
Model: YL-DL2C
Size: Ø90*H45mm
Shell: Premium Lathe Aluminum shell
LED Power: Isolated power supply
Fixing Hole Size: 75mm
Input Voltage: AC85-265V
Power: 3W
Power Factor: >0.85
Color Temperature: 3000K ±150
Luminous Flux: ≥180
CRI: >80
Beam Angle: 120°-180°
Light cover: Polished bulb cover
Working Temperature: -20~+45ºC
Storage Temperature: -30~+55ºC
Working Life: 30000H
Gurantee: 3 years
Certificate: CE, FCC, RoHS
Remarks: 3W, 4W, 5W available
Our life span is 40000h in the environment temperature -20ºC~35ºC and relative humidity <80%.
Testing report of warm white 3w led ceiling lamp :
Application Of LED Ceiling Lamp :
* Widely applied in office building, metro, subway, school, hospital, hotel, supermarket, workshop, advertisement, corridor, home etc..
Certificate:CE(EMC &LVD),FCC,RoHS
Yilang services:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Any defective products within warranty will get maintenance or replacement unconditionally.
4. Protect your sales area
Trade Terms:
1. Payment: T/T, L/C at sight available
2. Samples can be available within 5-7 working days;
Order: 15-30Days,according to the accurate order quantity.
3. Shipping freight is quoted under your requests
4. Shipping port:Shanghai, China
5. Discouts are offered based on order quantities
6. MOQ: 200pcs
Model |
Size
(mm) |
Shell |
Fixing Hole |
Input Voltage |
Power |
PF |
Color Temp. |
Luminous Flux |
CRI |
Beam Angle |
YL-DL2C |
Ø90*H45 |
premium Lathe Aluminum |
75mm |
AC85-265V |
3W |
>0.85 |
3000K ±150 |
≥ 180 |
>80 |
120°-180° |
YL-DL2C |
Ø90*H45 |
premium Lathe Aluminum |
75mm |
AC85-265V |
3W |
>0.85 |
6000K ±200 |
≥ 190 |
>80 |
120°-180° |
YL-DL3C |
Ø110*H50 |
premium Lathe Aluminum |
95mm |
AC85-265V |
6W |
>0.95 |
3000K ±150 |
≥ 420 |
>80 |
120°-180° |
YL-DL3C |
Ø110*H50 |
premium Lathe Aluminum |
95mm |
AC85-265V |
6W |
>0.95 |
6000K ±200 |
≥ 450 |
>80 |
120°-180° |
YL-DL4C |
Ø140*H55 |
premium Lathe Aluminum |
125mm |
AC85-265V |
12W |
>0.95 |
3000K ±150 |
≥ 840 |
>80 |
120°-180° |
YL-DL4C |
Ø140*H55 |
premium Lathe Aluminum |
125mm |
AC85-265V |
12W |
>0.95 |
6000K ±200 |
≥ 850 |
>80 |
120°-180° |
YL-DL5C |
Ø160*H55 |
premium Lathe Aluminum |
145mm |
AC85-265V |
15W |
>0.9 |
3000K ±150 |
≥ 1000 |
>80 |
120°-180° |
YL-DL5C |
Ø160*H55 |
premium Lathe Aluminum |
145mm |
AC85-265V |
15W |
>0.9 |
6000K ±200 |
≥ 1050 |
>80 |
120°-180° |
YL-DL6C |
Ø185*H65 |
premium Lathe Aluminum |
170mm |
AC85-265V |
18W |
>0.9 |
3000K ±150 |
≥ 1250 |
>80 |
120°-180° |
YL-DL6C |
Ø185*H65 |
premium Lathe Aluminum |
170mm |
AC85-265V |
18W |
>0.9 |
6000K ±200 |
≥ 1400 |
>80 |
120°-180° |
Power supply : CE isolated , working life : 30000hrs , Warranty : 3 years , Certificate : CE ROHS FCC |
