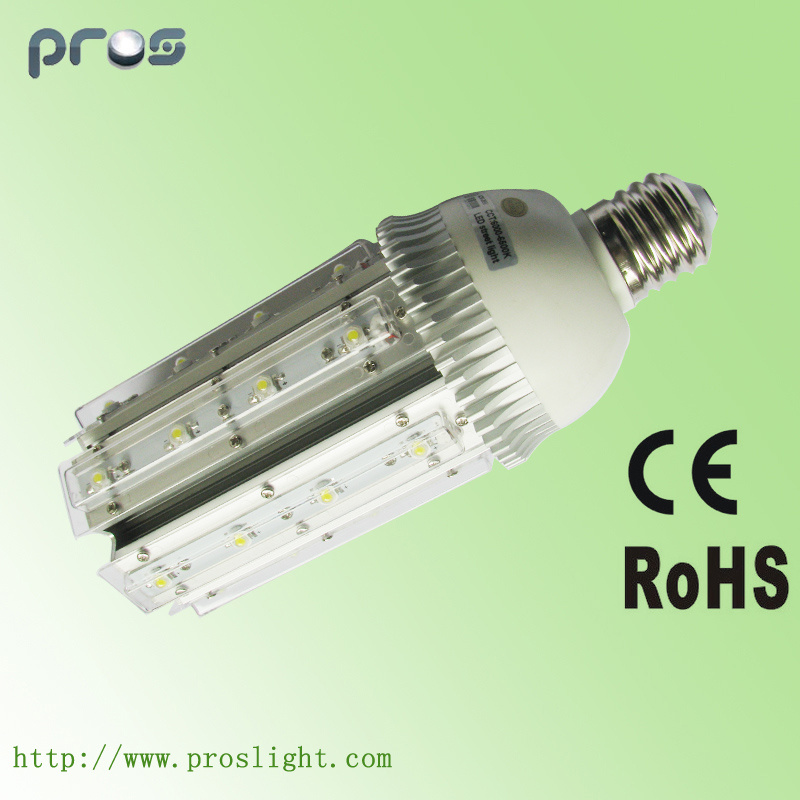

LED Street Lights
ItemNumber PL-LD-R36WD
Input Voltage DC12/ DC 24V/ AC85-265V, 277VAC
Power Factor >0.95
LED Quantity 36PCS
LED Consumption 36W
Rated Power 40W
LED Luminous Efficiency >110LM/1W
LED Flux 3600Lm
Color warm white, white, red, green, blue, yellow
Color Rendering Index Ra>85
IP Rating IP65
Working Life >50000hrs
Material Aluminum Alloy
Size (Dia)103x265mm(L)
Weight 1.3KG
Socket E39/E40 or E26/E27
The lights applied with best light source-LED. Accelerated the unique reflector which was developed by us ourself, it attains the light onto the road with maximum effect and formed a rectangular light spot. The entire light was made of the aluminum alloy with high index of the heat dissipation, the oxidize surface also ensured the heat dissipation reliability. Meanwhile the lamp has been designed a respiratory system to ensure the dust resistance, water resistance and self cleaning ability
LED Street Lights Application:
The lights mainly applied in garden, urban major road, secondary road, plaza, park, industry zone, residence area etc.
ItemNumber |
PL-LD-28W |
PL-LD-30W |
PL-LD-36W |
Input Voltage |
DC12/24V/36V / AC85-265V |
DC12/24V/36V / AC85-265V |
DC12/24V/36V / AC85-265V |
Power Factor |
> 0.95 |
> 0.95 |
> 0.95 |
LED Quantity |
28pcs |
30pcs |
36pcs |
LED Consumption |
28W |
30W |
36W |
Rated Consumption |
32W |
35W |
40W |
LED Luminous Efficiency |
> 110LM/W |
> 110LM/W |
> 110LM/W |
LED Initial Flux |
2800Lm |
3000Lm |
3600Lm |
Average
Illumination |
6M height |
20Lux |
23Lux |
23Lux |
8M height |
10Lux |
13Lux |
13Lux |
Effective Illuminated Area |
6M height |
27*12m² |
30*12m² |
30*12m² |
8M height |
32*14m² |
35*14m² |
35*14m² |
Color Temperature |
|
warm white: 2800-3300K; commercial white: 4000-4500K; white: 5800-6300k |
Color Rendering Index |
|
Ra> 80 |
Light Distribution Curve/Beam Pattern |
|
Asymmetric(Bat Wing/Rectangular Beam) |
IP Rating |
IP65 |
Working Life |
> 50000hrs |
Light Body& Lampshade Material |
Aluminum Alloy |
Size |
96*265mm |
105*265mm |
105*265mm |
Interface |
E26/E27 or E39/E40 |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
