Home LED Light Products 3528 Super Brightness LED Strip

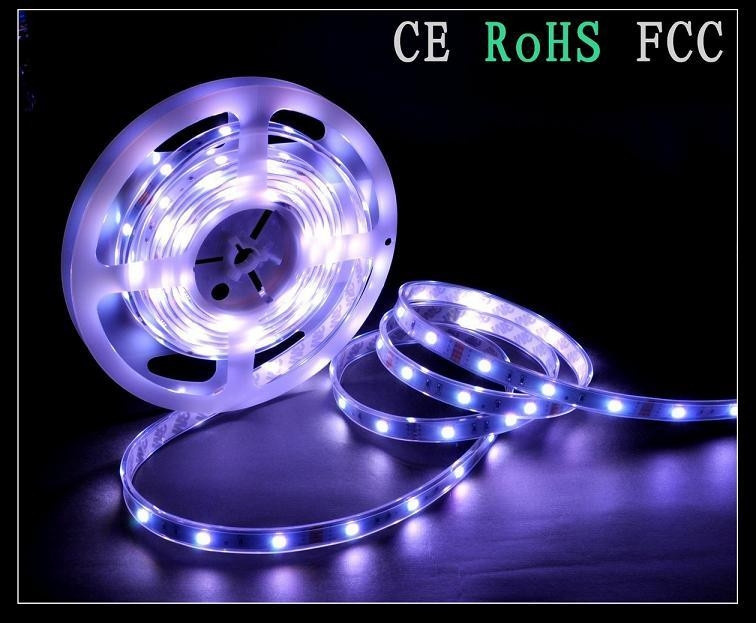

3528 Super Brightness LED Strip

3528 Super Brightness LED Strip
Price: US $ 1-1.2/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5/Meter
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
SMD3528 Led Strip

Specification:
LED Type: LM352-WN60
Light Color:R/G/B/W/Y/WW
Strip Dimension: 5000mm (L) * 10mm/8mm (W)
Length: 5 meters (16.4ft) / reel
Beam Angle: 120°
Working Input Voltage: DC 12V/24V
Working Temperature: -25° C ~ 55° C
FPC Color: White
IP Rate: IP65/IP20/IP67/IP68

Main Features;
Super brightness, high intensity and reliability.
Low power consumption.
Long life span over 50, 000 hours.
Fast and simple installation with adhesive back tape
Low maintenance.
Real 3M adhesive tape (9472)
Max. working length is 15meter
3 years long warranty time


Application:
Widely used for Exterior & Interior decorations such as home, hotel, clubs, shopping malls, bars etc...
Widely used for automobile and bicycle decoration, border or contour lighting etc...
Popularly applied in backlighting, concealed lighting, channel letter lighting, advertisement sign lighting and emergency lighting etc.
Decorative lights for party, event, shows, exhibitions etc...
ModelLED QTYVoltPowerLumen/mCRIPCB WidthIP RateColor
LM3528-WN3030 led/m12/24V2.4w/m180lm/m808mmIP20/IP65/IP67/IP68                                                                                                                            R/Y/W/G/B/WW
LM3528-WN6060 led/m12/24V4.8w/m360lm/m808mmIP20/IP65/IP67/IP68R/Y/W/G/B/WW
LM3528-WN60-RGB60 led/m12V4.8w/m360lm/m808mmIP20/IP65/IP67/IP68R/Y/W/G/B/WW
LM3528-WN9696 led/m12V7.68w/m576lm/m808mmIP20/IP65/IP67/IP68R/G/B
LM3528-WN120120 led/m12/24V9.6w/m720lm/m808mmIP20/IP65/IP67/IP68R/Y/W/G/B/WW
LM3528-WN2400 Single Row240 led/m24V19.2w/m1440lm/m8010mmIP20R/Y/W/G/B/WW
LM3528-WN240 Double Row240 led/m24V19.2w/m1440lm/m8015mmIP20/IP65R/Y/W/G/B/WW

Prod Model: LM3528-WN60
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 24 Months
CRI: 80
Lumen: 360 Lm/M
PCB Width: 8 mm
Power: 4.8W/M
Emitting Color: R/G/B/W/Y/Ww
Voltage: 12V/24V
IP Rating: IP20/IP65/IP67/IP68
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.

Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.

Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.

Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.

Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
