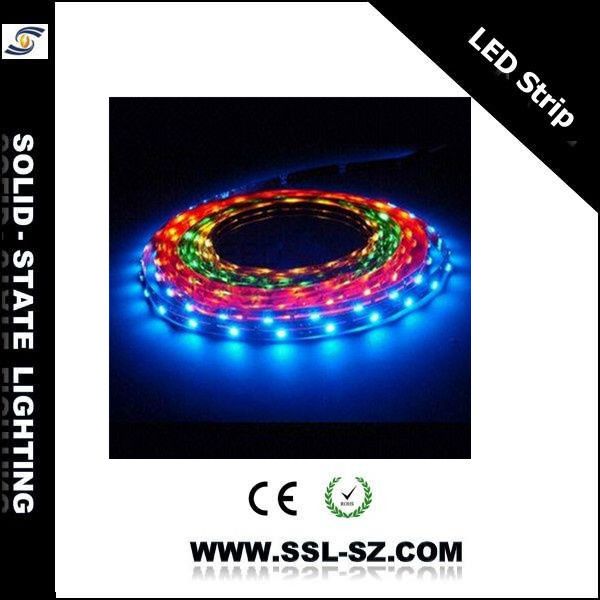

3528 LED Soft LED RGB Strip Light
Most suitable for decorations, the 3528 Super Brightness Green LED Strip that change color at fixed interval. Energy Saving LED Strip is low voltage (12V or 24V). Cold Cool White Super Quality String Lights mounted directly on the surface of the PCB board. Easy to install, safe to use, superb functioning, long lasting and energy efficient. These LED Strip are perfect for any kind of decorations on various events. They look very attractive and are in high demands in the markets.
Specification of Soft LED Strip:
1. DC12-24V input., Power: 14.4W/m, 72W/reel
2. Flexible strip, cuttable every 3 LED
3. SMD 3528, 60 LEDs/m
4. IP Rating: IP44 / IP54 /IP65 / IP68
5. PCB Color: White or yellow board.
6. Beam angle: 120 degree.
7. Lift span: 50000 ~ 80000 hours.
8. Light fading aftering 1000 hours continue work: White color less than 20%, other colors less than 5%.
9. Color Available: White, Warm White, Red, Green, Blue, Pink, Purple, RGB
10.3M tape attached, easy installation.
11. CE & RoHS certifications.
Features of LED Strip / LED Strip lighting / SMD3528 60LED/Meter Series:
1. Using SMD3528 LED, high brightness, wide angle, spot uniformity, light a small decline
2, Random bending, fixed flexible
3, Along the "scissors-shaped" symbol cut, does not affect
4, DC12/24V low voltage driving, use of safety
5, Low power consumption, long life, maintenance-free
6, Independent LED, one LED broken will not affect next LEDs (3538 double row and 5050).
Installation Diagram of Soft LED Strip:
1. Install: Take out the package, make sure it comes with necessary accessories, which should include: Fixing clips, middle plugs, end caps, head wires. Fix the strips with clips onto where you need, put the wire into sockets to light the strips.
2. Cut: Please cut the strips only along the cutting mark on the PCB, don't cut at random. Block up the end with end caps, seal with enough glue to make sure it is still waterproof.
3. Connect: Plug the head wire into a strip to conduct the electricity, or plug a middle plug into the ends of two separate strips to connect them into a long strip, after well connected, seal all the plugs with enough glue.
Application of Soft LED Strip:
1) Building decoration
2) Car decoration
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement lighting and decoration
6) Archway, canopy and bridge edge lighting
Item No: |
GT-LSFND50W30-F |
Voltage |
DC12/24V |
Total Power |
14.4W/M, 72W/Reel |
Color |
R/Y/B/G/W/WW/RGB |
Length |
5m/reel |
LED sources |
SMD3528 |
LED Qty |
60pcs/meter |
IP grade |
IP65 |
Cuttable unit |
every meter |
Lifespan |
50,000 hours |
Warranty |
3 years |
Certifications |
CE and RoHS |
