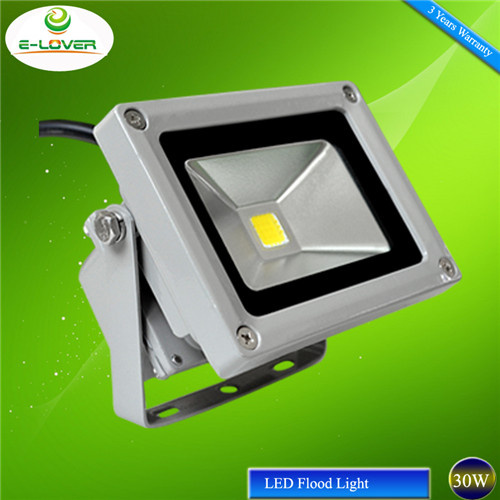

1.Specifications of outside led lighting |
Brand | E-Lover |
Model | EL-FL1EN30W |
Main Material | Aluminum + Tempered glass |
LED Power | 1*30W |
Detection distance | 5-12m |
Input Voltage | 24V/AC85-265V |
LED Chip | Epistar |
Operating Temperature | -45-+65° |
LED Life Span | 35,000hrs |
Relevant Certificate | CE,RoHS, |
Warranty | 3years |
Light Color | White, warm white |
Beam Angle | 60/120° |
CCT | 2700-10000K |
Normal CCT | WW(2700-3000K)/NW(4000-4500K)/CW(6000-6500K) |
CIR(Ra) | >80Ra |
Light Attenuation ratio (%) | less than 1% in 5,000Hrs |
Working Humidity | 10% ~ 90%R.H. |
Water Proof(IP) | IP65 |
2. Features of outside led lighting |
1. Wide voltage: AC85-265V, AC12V / 24V.
2. 10-200W led powers are available, led source: Epistar or Cree chip.
3. Sealed by stainless steel screw and upgrade version connector, good waterproof ability with IP65.
4. 4×Ø6mm high efficient heatpipes contact the heat source directly,rapidly transfer the heat to the cooling module of massive radiation fins, maximing the performance of cooling.
5. Drivers installed in a box, good protection and easy to connect with cable.
6. Energy saving, saving 70% electricity than the conventional metal light.
7. No UV or IR radiation, no harm to humans, free-pollution, without harm eyes and skin without lead and mercury.
8. Certificate:CE&RoHS, 3 years warranty.
9. PIR Sensor, Motion sensor, Time control Sensor, RGB are available for some models. Just feel free to tell us the requirements, and you will find the right led lights.
3. Applications of outside led lighting |
Government lighting engineering, commercial establishment, airport, subway, viaduct, billboard, panoramic view of the inside and outside wall lighting. etc.
4. Packing of outside led lighting |
EL-FL-1EN10W | 115*86*85 | 125*100*105 | 0.5KG | 0.57KG | 36 | 518*320*330 | 22.02KG |
EL-FL-1EN20W | 180*140*95 | 195*165*114 | 1.03KG | 1.06KG | 16 | 405*346*490 | 18.36KG |
EL-FL-1EN30W | 185*225*120 | 237*195*138 | 1.77KG | 1.8KG | 12 | 490*405*440 | 22.7KG |
EL-FL-1EN50W | 290*240*140 | 298*247*155 | 2.75KG | 3KG | 6 | 510*315*495 | 19KG |
Payment Terms:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
