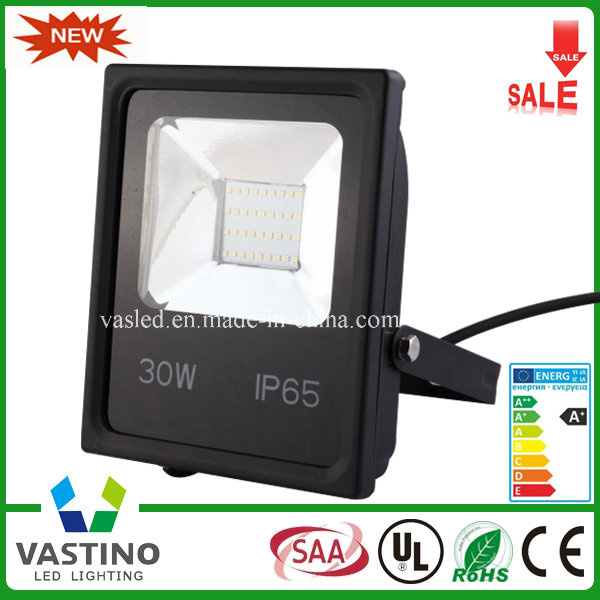

30W Outdoor LED Flood Light with ce rohs certificates
/LED Flood Light
/30W Outdoor LED Flood Light
/Flood Light with ce rohs certificates
Specification:
Description: LED flood light
Beam Angle: >120°
Input Power: 10W
Chip: Bridgelux chip
Input Voltage: AC110V-277V
Life Time: >50, 000 hours
Light Source: COB
IP Grade: 65
Warranty: 3 years
Safety Cert.: CE & RoHS UL CUL SAA TUV
Solution: Built-in LED Driver (Mains isolated driver)
Features:
1. Using high brightness high-power integrated chips;
2.Wide input voltage and constant current for the LED . That does not require the grid size fluctuations, also is not affected by grid fluctuation of the brightness of lamps and lanterns and service life;
3.Large cooling area. Ensure the LED junction temperature at work, Ta at 25 ºC Tj < 50 ºC. Compared with the traditional LED flood light that used in summer, the junction temperature was too high so that influence the lifespan of the LED;
4.Environmental friendly, no ultraviolet, infrared, thermal radiation, and mercury pollution;
5. As cold light source, LED lights will not make the goods fade ;
6. High quality reflectors, soft light, high light rate ; z
7..High color rendering index, showing the most intuitive and clear pictures, and color temperatures is optional;
8. Quick response, no stroboscopic, low glare, total luminous flux output reached when the lights on;
9.Solid-state light source, strong shock resistance, convenient for transportation and installation, high security;
10.4 mm high transparent toughened glass, the light transmittance is higher, safety performance is stronger;
11.Integration of novel fashion, meet customer needs and feelings, blend in more elements of science and technology and humanized design;
LED Flood light Application:
Mainly used for road, parking lot, stores, roof, expressway, subway, building,Road toll booth decoration lighting, garden lighting and square, at the same time can also be used in street lamps, suitable for tunnel lighting.
Product datasheet
1.Basic Parameters
| Model NO | LED Chip | Color of the shell | Product Size(mm) | IP | Material |
| VTL-F11-10W | 1PCS*10W | gray shell+deep blue glass | W150*L190*H50 | IP65 | Die-Cast Aluminum+Tempered Glass |
| VTL-F11-20W | 1PCS*20W |
| VTL-F11-30W | 1PCS*30W | W225*L280*H65 |
| VTL-F11-50W | 1PCS*50W |
| VTL-F11-70W | 1PCS*70W | W270*L330*H80 |
| VTL-F11-80W | 1PCS*80W |
2.Electrical Parameters
| Model NO | Led power(W) | Input Voltage(V) | Lamp Efficiency(%) | Power Factor |
| VTL-F11-10W | 10W | AC100-240V | ≥80 | >0.90 |
| VTL-F11-20W | 20W | ≥85 |
| VTL-F11-30W | 30W | ≥80 |
| VTL-F11-50W | 50W | AC100-240V | ≥88 | >0.90 |
| VTL-F11-70W | 70W | ≥88 |
| VTL-F11-80W | 80W | ≥88 |
3.Optical Parameters
| Model NO | Color temperature (K) | LED Flux(lm) | Beam angle(angle) | CRI |
| VTL-F11-10W | 6000-6500 | 550±10% | >120 | >70 |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-20W | 6000-6500 | 1500±10% |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-30W | 6000-6500 | 2100±10% |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-50W | 6000-6500 | 3600±10% |
| 4000-4500 |
| 2800-3200 |
| VTL-F11-70W | 6000-6500 | 5200±10% |
| 4000-4500 |
| 2800-3200 |
Vastino LED Lighting(shenzhen) Co,ltd
Why choose Vastino?
1, We specialize in outdoorl lights and do it best.
2, We have our own r&d team, can solve all your problems and provide you technology support.
3, We have stock, efficient delivery speed, place the order today, shipping today.
4, We have 15000 SQR Meters Workshop and 500 Workers.
5, We were established in 2003. For 12 years LED Light expierence and good quality Warranty.
Warranty term
1, Under the terms of this warranty, if the products have a failure occurs
under normal usage within warranty period, VastinoLight will provide free
new products based on the proof-documents
2, If Failure or damage due to incorrect operation, wire connection, or
anything other do not follow our instruction, VastinoLight will provide
paidmaintains within warranty period.
More detailed info for our LED panel light, please do not hesitate to
Inquiry Now!
Contact me at once, Please!
Since 2003 VASTINO LED lighting has been focusing on the R&D, manufacturing and selling of LED lighting products, On May, 2013, VASTINO moved its production base & R&D center from Jiangmen to Shenzhen of Guangdong province and increased its registered capital to 10 million RMB. VASTINO is just embracing a whole-new start for the future development!
Currently, VASTINO'S products are mainly within the area of LED industrial lighting and LED commercial lighting such as LED street lights, LED tunnel lights, LED flood lights, LED high bay lights, LED tubes, LED down lights, LED spot lights, LED bulbs, LED Panels and so on. Except domestically sold in China, VASTINO's LED lighting products have been largely exported to more than 60 countries or regions around the world including many developed economies such as West Europe, North America and Australia. More than 90% of VASTINO's LED lighting products have successfully passed various international certification such as CE, RoHS, SAA and ETL certificates.
VASTINO's factory in Shenzhen covers an area of more than 10, 000 square meters and with more than 200 workers on production lines. Besides its world leading LED encapsulating lines, assembling lines and testing devices, VASTINO also adopts strict and scientific Quality Control mechanism fully conforms to ISO9001, ISO14000 standards.
Under the business philosophy of DICA (Devoted, Innovative, Credible and Altogether wins), VASTINO is aiming to be the top brand of LED Lighting industry both in China and worldwide with its state-of-the-art and green LED lighting products recognized by all the customers around the world.
