Home LED Light Products 30W IP65 Indoor LED High Bay Light

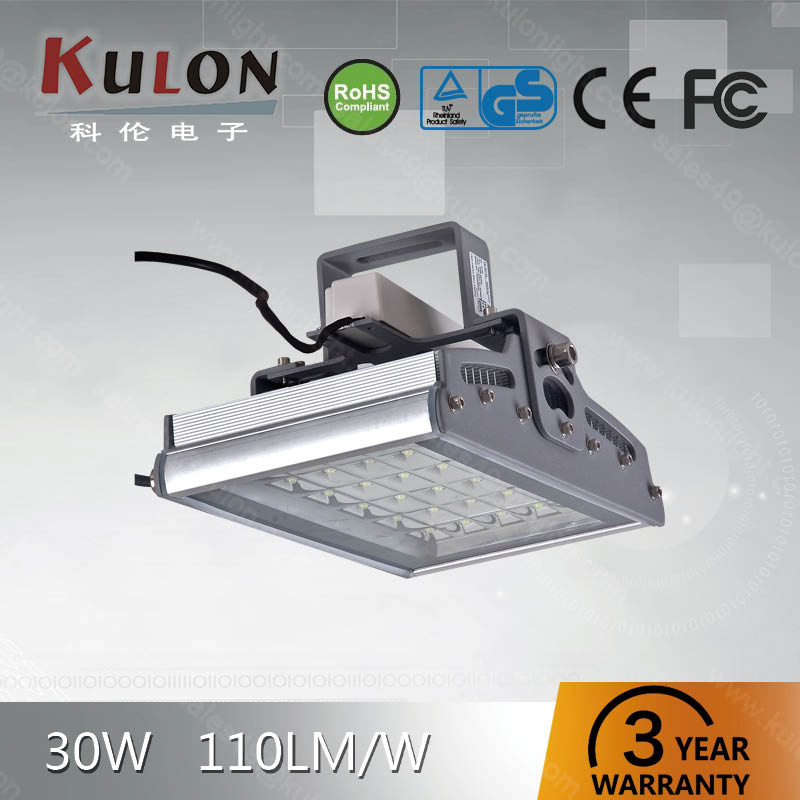

30W IP65 Indoor LED High Bay Light

30W IP65 Indoor LED High Bay Light
Price: US $ 99.2-108/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Product Material:
PHILIPS LUXEON T luminous source
The KULON H-Series LED High Bay Lights are utilizing PHILIPS LUXEON T LEDs. ( Lumens>135LM/W )

Meanwell led driver
Full Range of KULON H-Series LED High Bay Lights are utilizing MEANWELL HLG series high-end driver,
optimal operation stability, lifespan and performance. (0-10VDC, resistance, PWM signal, time dimming available)

Kulon 3rd generetor led moudle
Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.
(All materials are complied with UL standard)

Features & Advantages:
1.  PHILIPS LUXEON T luminous source, up to 135LM/W.
2.  High Reliable MEANWELL HLG driver,(1-10VDC, Resistance, PWM or time dimming function available)
3.  KULON 3rd GENERATION LED MODULE: Exquisite design with powerful thermal performance, as well as high reliable waterproof
4.  Over then 100,000 hours operation life with 5 Years Warranty.
5.  Available for 60°, 90° and 110° beam angle.
6.  K10&IP66 (testing reports available)
7. 10KV surge protection or motion sensor available.
8.  Adjustable mounting bracket or suspension wire mounted hang installation method available
9.  UL, DLC, RoHS, CE, GS, CB certificated is pending.
10.  IES file or Dialux simulation for lighting solution is available.


Model No.

K-GKD30WD

Nominal Wattage

35W

Nominal Voltage

AC 100-240V, 50/60Hz DC 12V /24V

Maximum Current

AC 0.36A -120V, 0.18A -240V
DC 3.24A -12V, 1.62A -24V

Optimal Operating
Temperature

-40 ºC to +50 ºC

Power Factor (PF)

> 0.9

Driver Efficiency

> 90%

Lumen Output

2975 lm / 3150 lm

CRI

Ra >= 75

CCT

3000K 4000K 5000K 6000K

IP Rating

IP65

Lifetime

50000 hours

Heat Radiator

Anodized Aluminum

Lens

Toughened Glass

Fixture Dimension

320 x216 x174 mm  12.6 x8.5 x6.9 inches

Fixture Weight

5.0 kg /11.0 lbs


Application:
KULON-H series high bay fixtures were designed specifically to replace conventional lighting in a wide variety of indoor industrial applications;
Their low profile light weight design and versatile mounting options make it ideal for many applications such as:
warehouse, garage, aisle, cold storage, bridge, tunnel and general area lighting


Our service:
Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority,
hope to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.

Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and
workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Kulon provides free repair or replacement within warranty period. KU LO N shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.

(Professional Warranty file with stamp and signature will be sent to you if necessary)


Company information:
Founded in 2005, Hangzhou Kulon Electronics Co., Ltd is a hitech and private enterprise devoted to R&D, producing and selling of high power LED outdoor / indoor lights, solar LED lighting systerm and more energy saving products and so on.

Adhering to the management concept of "honest cooperation, pragmatic innovation", we regard clients' satisfaction as our top task,
product quality as the basis of development, and cost-saving as our competitive advantage.

   How to choose a right light for project?

1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)

How to achieve intelligent dimming function ?

Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.

How to achieve motion sense function?

We could build in a smart motion sensor to ahieve this function such as:
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective.
Prod Model: K-GKD30WD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Power: 30W
Application: Parking Lot Supermarket etc
LED Driver: Meanwell LED Driver
LED Chip: Bridgelux
Power Factor(PF>): 0.95
Item Name: K-Gkd30wd LED High Bay Light
Lighting: Energy Saving
Material: Aluminum+PC Cover LED High Bay Light
CRI: 75
CCT: 3000k 4000k 5000k 5700k
Lamp Body Material: Aluminum Alloy
Certification: VDE
Color Temperature: 3000k 4000k 5000k 5700k
Power: 30W
Usage: Shopping Mall,Factory, Parking Lot etc
Beam Angle: 60 / 90 / 110
Established in 2007, Hangzhou Kulon Electronics Co., Ltd. is a professional high-tech corporation focuses on deputizing power supply products of high quality, OEM, technical support, after-sale services, and providing practical resolutions to any power supply problems in an all-round manner. Our products cover the following series: Switch Power Supply, DC/DC Converter, , EMI/EMC Power Line Filters, Signal Isolation Amplifier Modules. These products are widely applied in the fields of mechanical equipment, instrument meters, industrial automation, electronic technology, telecommunication, information technology, lighting projects, medical appliances, and automobile industry, etc.

Adhering to the management concept of "honest cooperation, pragmatic innovation", we regard clients' satisfaction as our top task, products' quality as the basis of development, cost-saving as our competitive advantage. Meanwhile, we exert all-out effort to keep pace with the technological innovation and update our products in time; We hold tightly to the market demands and try hard to satisfy the clients' requirements. Depending on the mutual trust with enterprises of industry-leading brands and the excellent cooperative relationship of complementary advantages, the scope of our business is being enlarged constantly and the rapid development of our corporation has received congruous recognition and support from our cooperative enterprises. Our clients come from the fields concerning mechanical manufacturing, industrial automation, telecommunication, medical appliances, instrument meters, electric monitoring, textile industry, mining equipment, hardware tools, various lighting equipment and projects, security precaution facilities, and automation for buildings, etc. In a word, our clients cover every walk of life.

We ponder over matters by following the market demands and aim at meeting the satisfaction of our clients. The success of our clients is the ultimate value of evaluating our work. The core of a company's development is to pay close attention to the market changes and to keep pace with time. Our corporation has provided and will provide products and technology support of excellent quality to our clients and grow up together with our clients. Our earnest thanks go to our clients for choosing our products all the time and for their long-term and consistent support and cooperation with us. We earnestly welcome our clients and new friends from all walks of life to our company, carrying out business negotiations, extending our mutual professional work, and striding towards our common prosperity and promising prospects.
