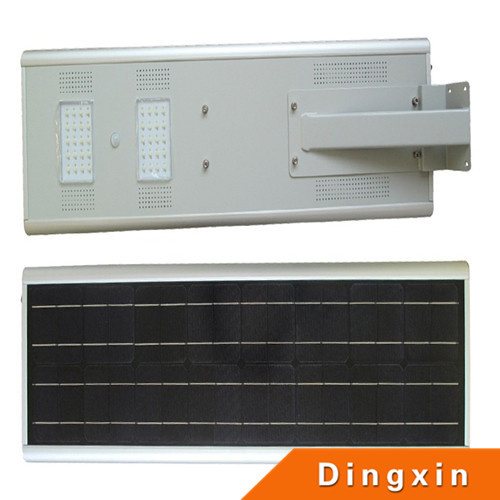

30W All in One Solar LED Light with 2 Years Warranty
| Price: |
US $ 380-430/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
All in one solar street light Instruction Manual(18W.20W.25W.30W.40W)
Thanks for using all in one solar street light.
The design of the all in one solar street light comes from the inspiration and power of the universe, combined the best energy saving parts---solar panel, led lamp and special battery. With the help of the controller and PIR sensor, it realizes the functions of high brightness with low energy, long lifespan and free maintenance. At the same time, it is very convenient to ship and install. It is one of the best patent products of our company.
| Specifications |
| Light source | 18W | 20W | 25W | 30W | 40W |
| Solar panel | 40W(Mono) | 50W(Mono) | 50W(Mono) | 60W(Mono) | 60W(Mono) |
| Human body sensing | Yes | Yes | Yes | Yes | Yes |
| Dimension | 955*385*210mm | 1130X390X210mm | 1190X390X210mm | 1190X390X210mm | 1190X390X210mm |
| Net weight | 13KG | 17.1KG | 17.5KG | 18KG | 18.3KG |
| Luminous | Full load | 1800lm | 2100lm | 2500lm | 3200lm | 4300lm |
| Less load | 500lm | 650lm | 730lm | 920lm | 1300lm |
| Visual angle | 120° | 120° | 120° | 120° | 120° |
| Color temperature | 6000k-6500k | 6000k-6500k | 6000k-6500k | 6000k-6500k | 6000k-6500k |
| Work time | Full power | ≥10Hr | ≥10Hr | ≥10Hr | ≥10Hr | ≥10Hr |
| Saving mode | ≥20Hr | ≥20Hr | ≥20Hr | ≥20Hr | ≥20Hr |
| Work temperature | charging:-30°C~+60°C discharging :-30°C~+60°C storage:-30°C~+45°C |
| Install height | 5~6m | 5~6m | 5~6m | 6-7m | 6-7m |
| Light space | 18~20m | 8~20m | 18~20m | 20~25m | 20~25m |
The data of its working time was measured at latitude 22 °, 113 ° east longitude in sunny days.
The working time will be affected by the surroundings.
The following are tips and directions for all in one solar street light, please pay attention.
"All in One solar street light" could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation.We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.
"All in One solar street light" adopts the long life Lithium battery for storing energy, charging temperature at day time is between: -30°C~+60°C,when temperature goes lower than -30°C ,the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than -30°C. Discharging temperature at night is between: -30°C~+60°C, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.
Battery of the "All in One solar street light" can be stored for 6 months long after fully charged. Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.
When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away from any shadow of houses, trees etc.
Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
All in one solar street light have got the standard of IP65.The vents on the surface is designed for radiating.The materials are made of aluminum alloy which can survive in the environment of seaside and desert.
The knob of the fuse is at the left rear end of the light, please insert the fuse while using.By the way,there is one piece of fuse more as backup.(If not fuse,then it is switch,just turn on the switch)
Installing Directions:
To place the light pole into the best spot with good day lighting . The light pole should be the length 5-7m, the thickness 2.0mm with material iron or steel, the diameter 80-110mm.

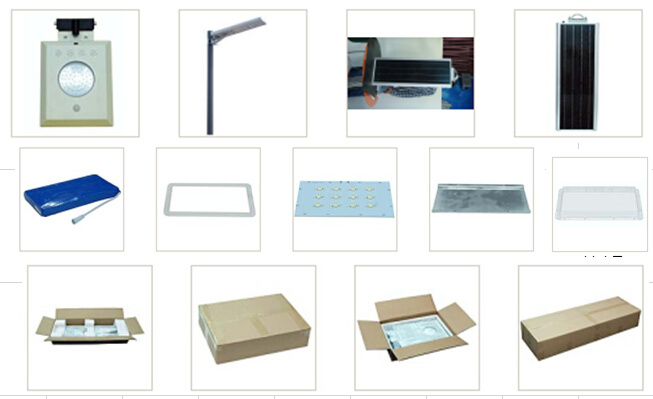

Please check if the components are all here when open the packing, the components are show below.
Unfold the knob of fuse(see below) and check if the fuse works or not, then tighten.(If not fuse,then it is switch,just turn on the switch)
Place the lamp on the pole by its sleeve,and make sure it is steady,then it is OK.
We have right to improve the structure of our products without any special notice. If there is anything different from data here, please follow what it is.We guarantee that we have done what we can to improve the contents of the instruction, so we will not assume any loss of this.
| Prod Model: |
DX-0013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pole's Height: |
5m 6m 7m |
| LED Light Power: |
18W 20W 25W 30W 40W |
| Power Supply: |
Solar |
| Color Temperature: |
Warm White |
| Lamp Body Material: |
Aluminum |
| Power: |
30w |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
VDE |
| Input Voltage: |
12v |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
Epistar |
Yangzhou Dingxin Photoelectric Technology Co., Ltd., Established in 2000, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer and trading Group company.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 60 Countries such as the sri landka, USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System,
POLE,
LED light
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 315W
4. Solar Battery 7Ah-300Ah/12V
5. Solar garden light.
OEM Service for solar lighting and PV panel is available.
Welcome to contact us for details!
