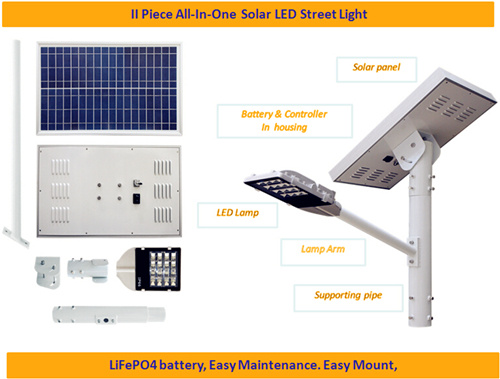

Compact II Piece 15/18//24/30W LED Solar Garden / Street Light
Economic self contain solar street lighting fixtures ready for installation right out of the box.
Each fixture can be retrofitted to an existing pole (76-80mm) in no time.
Complete range from 15W to 30W LED built on the same design concept.
For wide application:
Street, Parking lot, Arenas, Public places, commercial space, bus stops, recreation area, Park, School, Hospitals.
Specfication: (15W LED, 18W LED, 24W LED, 30W LED)
Product Code | WS-605S-15W | WS-605S-18W | WS-605S-24W | WS-605S-30W |
LED lamp (watt) | 15 | 18 | 24 | 30 |
Solar panel (watt) | 30 | 50 | 60 | 80 |
Battery capacity | 15AH / 12.8V | 25AH /12.8V | 30AH /12.8V | 40AH /12.8V |
Lighting mode | 12 hours / night 30% brightness till morning, 100% brightness for 1 min when motion sensed. | 12 hours / night 2 hour of 40% power 4 hours of 100% power 6 hours of 40% power | 12 hours / night 2 hour of 40% power 4 hours of 100% power 6 hours of 40% power | 12 hours / night 2 hour of 40% power 4 hours of 100% power 6 hours of 40% power |
Backup time | 24 hours | 24 hours | 24 hours | 24 hours |
Operating temp | -20°C - 60°C | -20°- 60°C | -20°- 60°C | -20°- 60°C |
Color temp. | 6500K (cool white) | 6500K (cool white) | 6500K (cool white) | 6500K (cool white) |
Pole Diam. | 76- 80 mm | 76-80 mm | 76-80 mm | 76-80 mm |
Install height | 4-5 m | 4-5 m | 4-6 mm | 4-6 m |
Pole distance | > 15 m | > 15 m | > 18 m | > 25 m |
The easiest and the simplest form of energy that can be handled both in Micro and Macro levels is the solar energy. The other forms of energy can be made profitable only on a larger scale of working, unlike Solar. The greatest advantage of solar is the availability in abundance and the cost and risk of installation and maintenance of the products.
Solar energy refers primarily to the use of solar radiation for practical ends. Today, the energy from the sun is used for purposes like heating, cooling, lighting, transportation, and many more.
Solar technologies are broadly characterized as either passive solar or active solar; Depending on the way they capture and distribute solar energy or convert it into solar power.
Today, when we look at development, the first thing that pops into our minds is the presence of electricity. Our lights brighten at the flip of a switch; Our computers wake up with the touch of a button, our streets are powered by solar lights. Yet, over 1.5 billion people worldwide still lack electricity and nations still compete for limited energy resources.
Shenzhen Winsolar technology Co., Ltd, we choose to act.
We have the technical know-how, the scale of operations, the partnerships, and, most important, the vision to put renewable energy within reaches of everyone.
