Home LED Light Products 30W 5m Wind and PV Street Light

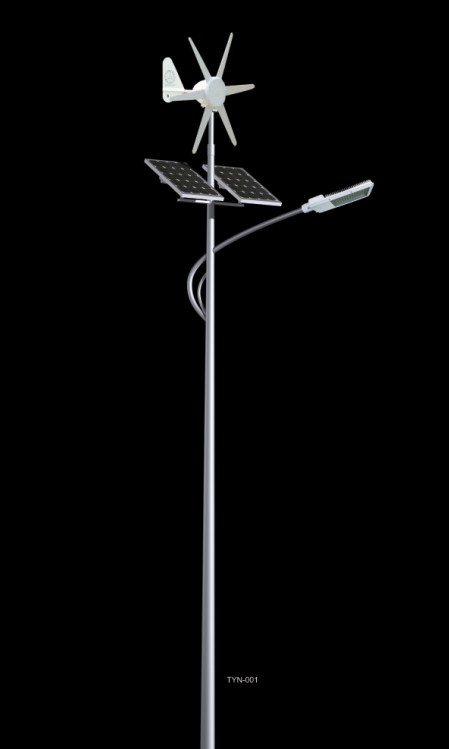

30W 5m Wind and PV Street Light

30W 5m Wind and PV Street Light
Price: US $ 280-500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 30/Piece
Pay Type: L/C,T/T
Technical parameters of solar street lamp
Height: 6~11M, galvanized cone-shaped mast with coating finish on the surface (design according to requirements)System voltage: DC12V/24V
Lighting sources: 20W~90W LED lamp
Daily service hours: 6~12 hours (design according to requirements)
Cloudy & rainy days: 3~5days (design according to requirements)
Lighting effect: 60 Lm/W----159 Lm/W
Illumination: 15 Lux---38 Lux (design according to requirements)
Wind resistance: 41.4m/s
Service temperature: -30° C----55° C...
Fan: 300W
Solar panel: Mono/multi-crystal silicon high-efficiency cell with service life ≥ 25 years
Storage battery: Valve-controlled sealed service-free colloid, silicon and lead-acid cells with service life ≥ 5 years
Controller: Mutually complimentary intelligent controller with the function of over charge and over discharge, service life ≥ 5 years
Battery box: Molded, fully sealed to prevent water, excellent heat preserving performance, service life ≥ 20years
Service life of lighting sources: 8000h------60000h
The above configuration is for reference only. The actual design shall be subject to the local natural resources and customers specific requirements.
Name Specification Qty Instruction
Solar panels 70W/PCS 1pcs Single crystal silicon , High conversion efficiency, Life expectancy 20 years
Battery 70AH/PCS 1pcs Colloidal battery, used for solar energy, life 5 years
Controller 10A  1pcs Intelligent controller, prevent over-charging, excessive discharge,open light controller, close time controller, life 8 years
Battery box   1pcs Pressing, sealed waterproof, good insulation effect,life 15years
Led lamp LED24W 1pcs Many LED Lattice,using aluminum profile module and EPISTAR chips.
Pole 6M 1pcs Q235 material,Surface hot-dip galvanizing spray, diameter 63mm-140mmmm,thickness 2.75mm,flange size260mm*260mm*12mm, including solar bracket
Cable in pole   1set 2*1.5and 2*2.5Soft copper wire ;
Prod Model: BE-30W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charging Time (',H): 10
Usage: Street
IP Rating: IP65
Voltage: 12/24V
Certification: CE
Light Source: LED Lamp
Cell Type: Colloid Battery
Jiangsu Beier Lighting Electrical Co., Ltd is specializing in the production of street light, solar light, solar street light, LED street light, garden light, solar garden light, solar lawn light, street light pole, flag pole and so on.

Our company has a professional avant-garde new R&D team, they have the professional knowledge in high-power LED street light, street light, solar street light, landscape light.Our design and manufacturing capabilites are forefront in the industry area."Beier I, ""Beier II", "Beier III" and "Golden Beier" lamps are widely respected by the industry.High-power LED "Armstrong" has its smooth rolling line of lamp production.Beier lighting has officially entered into the area of energy-effcient lighting in the world.

Jiangsu Beier Lighting Electrical Co., Ltd is located in the historical and cultural city of Yangzhou.Beier Lighting is founded in 1993 and currently employs more than 120 staffs.After 20 years' unremiting effort, we have strived to be one of the large-scale enterprises.We have a 1000T hydraulic linkage, 10M bending machine, high-speed slitting machine, hot-DIP galvanizing machine and other large-scale automation equipments.

Our company is repeatedly rated as the contract and keeping promises enterprise.We are also a AAA grade credit enterprise, and have got the ISO9001:2008 international quality system certification, the ISO14001:2004 environment system certification, CCC, and CQC compulsory certification.We are the holders of qualification of street lighting installation of three.Also, the European CE safety certification has been detected by provincial and ministerial level.

Jiangsu Beier Lighting Electrical Co., Ltd strives to be the best outdoor lighting company in the world.
