LED panel light/LED Panel /square LED panel/Round LED Panel /SMD3528 LED panel /high bright LED panel/LED Panels/LED Panel Lights/Dimmable LED Panels/Backlit LED Panel/High lumen and high quality/Size: 100x100/200x200/300x300/595x595/600x600/620x620/150x1200/300x1200/600x1100/600x1200

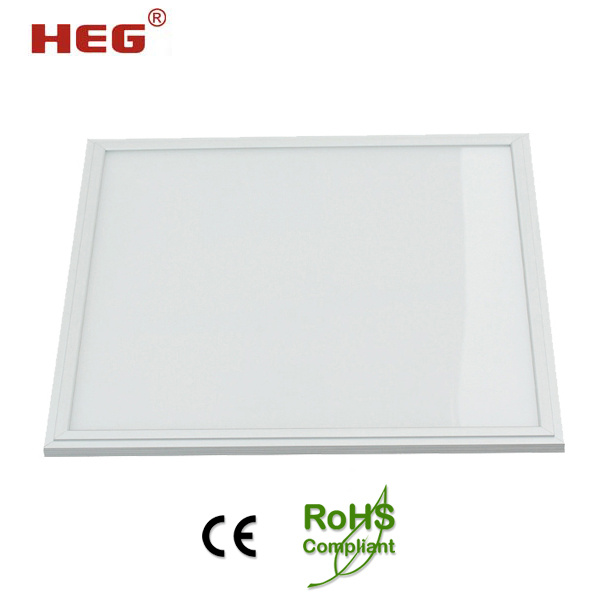

1. Super Slim Dimmable LED Panel 600x600 Description
Shenzhen Hermes Opto 's 2400LM 36W, CRI>70, PF >0.9 LED Panel 300x300 and 4680LM 72W, CRI>70, PF>0.9, LED Panel 600x600 is made up of high efficiency light guide plate + good effect diffusion plate +high quality al 6063 aluminum frame +high bright low current SMD 3528LEDs + high quality integrated LED driver. Three installing ways ( suspended, surface mounted and recessed ), three kinds of frame color ( silver /white / black ) and 5 dimming ways ( IR Dimming, RF Dimming, Manual Dimming, Dali Dimming, 0-10V Dimming, DMX Dimming ) are for customer's choice.
2. LED Panel 600x600 Advantages
A. Ultra-thin, modern, simple and elegent
B. Energy-saving, no harmful hazardous ingredients, environmental-friendly
C. Various Installation ways: Recessed or Embedded/Hanging orSuspended/Surface Mounted
D. A good replacement for traditional grille lamp.
3. Specification:
A. Power: 36W
B. Dimension: 600× 600× 11mm (12.5mm)
C. Emitting Area: 560× 560mm
D. LED: SMD3528, 372 PCS
E. Input Voltage: AC100-240V 50/60Hz
F. Luminous flux: 2200-2500Lm
G. Color Temperature: Warm White/ Pure White/ Cool White
H. CRI: >70
J. Dimmable Optional Manual rotation dimmer / IR (or RF) remote control dimmer/Dali System/0-10V dimming/TRAIC
4. LED Panel 600x600 Installations
* Recessed
* Surface Mounted
* Suspended
Delivery Time
7-10 working days for sample order, 15-20 working days for 1000PCS after payment confirmed
Payment Terms
* T/T in advance
* Western Union
* Paypal
Warranty Time
2 years since the date of purchase.
|
Item |
Model |
Dimension |
Power |
LED Type |
LED QTY |
Lumen |
|
1 |
H-S300BP18B |
300x300 295x295 |
18W |
SMD3528 |
180 |
1170±10% |
|
2 |
H-01530BP9B |
150X300 |
9W |
SMD3528 |
90 |
540±10% |
|
3 |
H-01560AP15A |
150x600 |
15W |
SMD3528 |
160 |
650±10% |
|
4 |
H-S300BP36B |
300x300 295x295 |
36W |
SMD3528 |
372 |
2340±10% |
|
5 |
H-0306BP18B |
300x600 295x595 |
24W |
SMD3528 |
252 |
1560±10% |
|
6 |
H-0306BP36B |
300x600 295x595 |
36W |
SMD3528 |
372 |
2340±10% |
|
7 |
H-S600BP36B |
600x600 595x595 |
36W |
SMD3528 |
372 |
2340±10% |
|
8 |
H-S600BP72B |
600x600 620x620 595x595 |
72W |
SMD3528 |
744 |
4680±10% |
|
9 |
H-01512BP36B |
150x1200 |
36W |
SMD3528 |
372 |
2340±10% |
|
10 |
H-0312BP36B |
300x1200 295x1195 |
36W |
SMD3528 |
372 |
2340±10% |
|
11 |
H-0312BP72B |
300x1200 295x1195 |
72W |
SMD3528 |
768 |
4680±10% |
|
12 |
H-0612BP72B |
600x1200 600x1100 595x1195 |
72W |
SMD3528 |
768 |
4680±10% |
Shenzhen Hermes Opto-Electronics Technology Co., Ltd., was established as an innovative & professional LED lighting solution supplier in 2001. We provide highest quality LED lighting products as well as professional pre- and after-sales service to the customers worldwide.
Our products cover a great variety, which include LED panel light, LED downlight, LED tube, LED ceiling light etc. As a qualified manufacturer in this field, we have over 350 employees, among which there are 20 professional engineers dedicated to R & D.
By now, we have regular customers from Europe, North America, Asia, Middle East ect. Due to our high quality products, prompt delivery, professional service.
Rigorous modern management style, comprehensive marketing network and pre- and after-sales service system, are the reliable guarantee for the continuous improvement of production techniques, product quality, enterprise development and expansion.
We warmly welcome your inquiry and sincerely hope for a good long-term cooperation with customers from all over the world.
