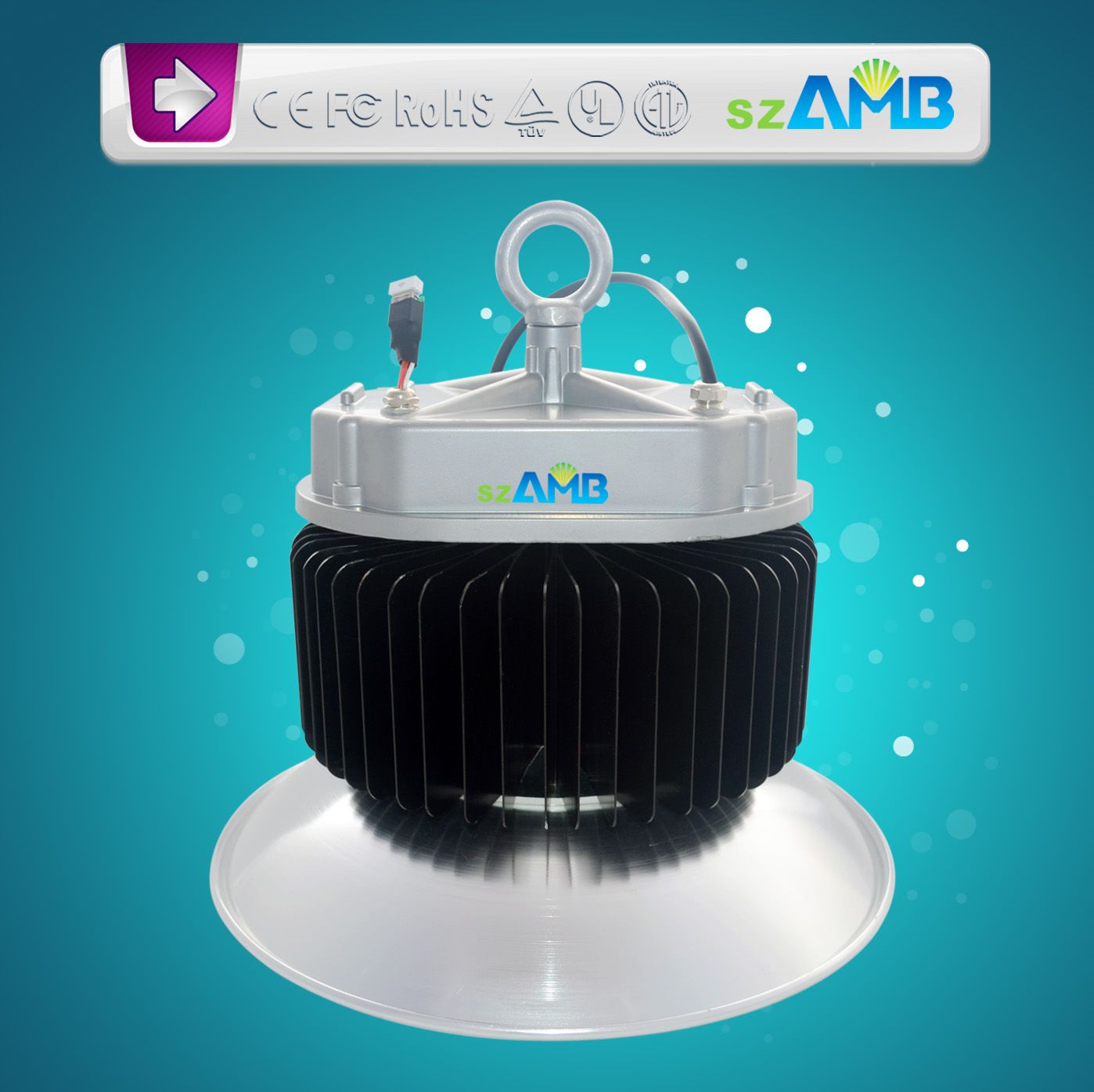

300W LED Mining Light with IP65 Strong Waterproof and Dustproof
| Price: |
US $ 396.00/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
300W LED High Bay Light
Item No.: AMB-3L-300W
Energy Consumption: 300W
Beam Angle: 60/120/135/150degrees
LED Chips: Bridgelux(120-130lm/w)
Driver: Meanwell driver
Color Temperature: 2800K-7000K
Input Voltage: 90-305VAC
Luminous Flux: 27, 000-27, 800LM
CRI : Ra>75
Weight: 12.8Kg(does not include reflector)
AMB LED High Bay Light Advantages:
1. Aluminum/PC Reflector with Beam Angle 60/120/135/150 degree available.
2. Material: Lamp sheel equipped with pure aluminum, anodizing and anticorrosion treatment, fancy performance, compact and beautiful structure.
3. LED Chip: Use high brightness single semiconductor chip Bridgelux 45mil (120-130lumen/w) integrated light source.
4. LED Driver: Built-in-cross-flow Meanwell power supply, lamp's stability assured.
5.Huge Aluminum radiator: Conduct the heat and Cool down the temperature much more quickly.
6. Lifespan: If works 12 hours per day, it can be used 8-10 years, very low maintenance costs.
7. Green: Free-pollution, no lead, mercury and other pollution elements, no harm to human body, no RF interference.
9. Convenient to install, High universality, widely application ranges.
10. Warranty: 5years for lamp fixture with Meanwell driver
LED High Bay Light Application:
LED industrial light is widely used in factory, workshop, warehouse, supermarket, exhibition, stadium hall, parking, gas station, gymnasium etc where need indoor lighting.
Our Service:
1. Any of your enquiry about us or our products, you will get quick reply in detail within 24 hours
2. Our sales team are well-trained and passionate, no barriers in communication by English
3. We offer OEM&ODM service. You can have your own logo printed on products; service include customizing the retail box packing and others
4. Distributorship is offered for your unique design and some our current models.
5. Protection for your sales area, ideas of design and all your private information.
|
No. |
1 |
2 |
3 |
4 |
5 |
|
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
Power Consumption
(W) |
50 |
80 |
100 |
120 |
150 |
LED Initial Flux
(LM) |
5200 |
8300 |
12000 |
12500 |
14600 |
Lamp Flux
(LM) |
4800 |
7500 |
10400 |
11900 |
13500 |
|
Beam Angle |
60° /120° /150° |
60° /120° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
Input Voltage
(VAC) |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
Power Factor
(PF) |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
|
Power Efficiency |
96% |
93% |
94.3% |
95.8% |
92% |
|
Color |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Color Rendering Index
(CRI) |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
|
Working Enviornment |
Temperature:
-40-50degree
Humidity:
10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature:
-40-50degree
Humidity:
10%-90%
|
|
Material |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum
Copper
PC |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Working Life
(Hours) |
> 50000 |
> 50000 |
> 50000 |
> 50000 |
> 50000 |
Product Dimension
(mm) |
60° :
Φ 390× 280
120° :
Φ 415× 356
150° :
Φ 580× 280 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
Packing Dimension
(mm) |
Lamp Body
3kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 290× 289 |
Lamp Body
5.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
5.9kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
7.2kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
Lamp Body
7.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
Net Weight/
Gross Weight (Kgs) |
3kg/
3.5kg |
5.5kg 6kg |
5.9kg
6.5kg |
7.2kg
8kg |
7.5kg
8kg
|
| Prod Model: |
AMB-3L-300W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flux: |
27800lumen |
| Input Volatage: |
AC85-305V 50/60Hz |
| LED Source: |
Bridgelux LED Chip |
| Driver: |
Taiwan Meanwell Driver |
| Power Factor: |
>0.98 |
| Warranty Time: |
5 Years Warranty Time |
| Life: |
>50, 000 Hours |
| Power Source: |
AC85-305V |
| Electric Current Type: |
AC |
| Emitting Color: |
White |
| Certification: |
UL |
| Lamp Body Material: |
Aluminum |
| Color Temperature: |
Cool White |
| IP Rating: |
IP65 |
| Power: |
300W |
